FAN PERFORMANCE AND CAPACITY7.

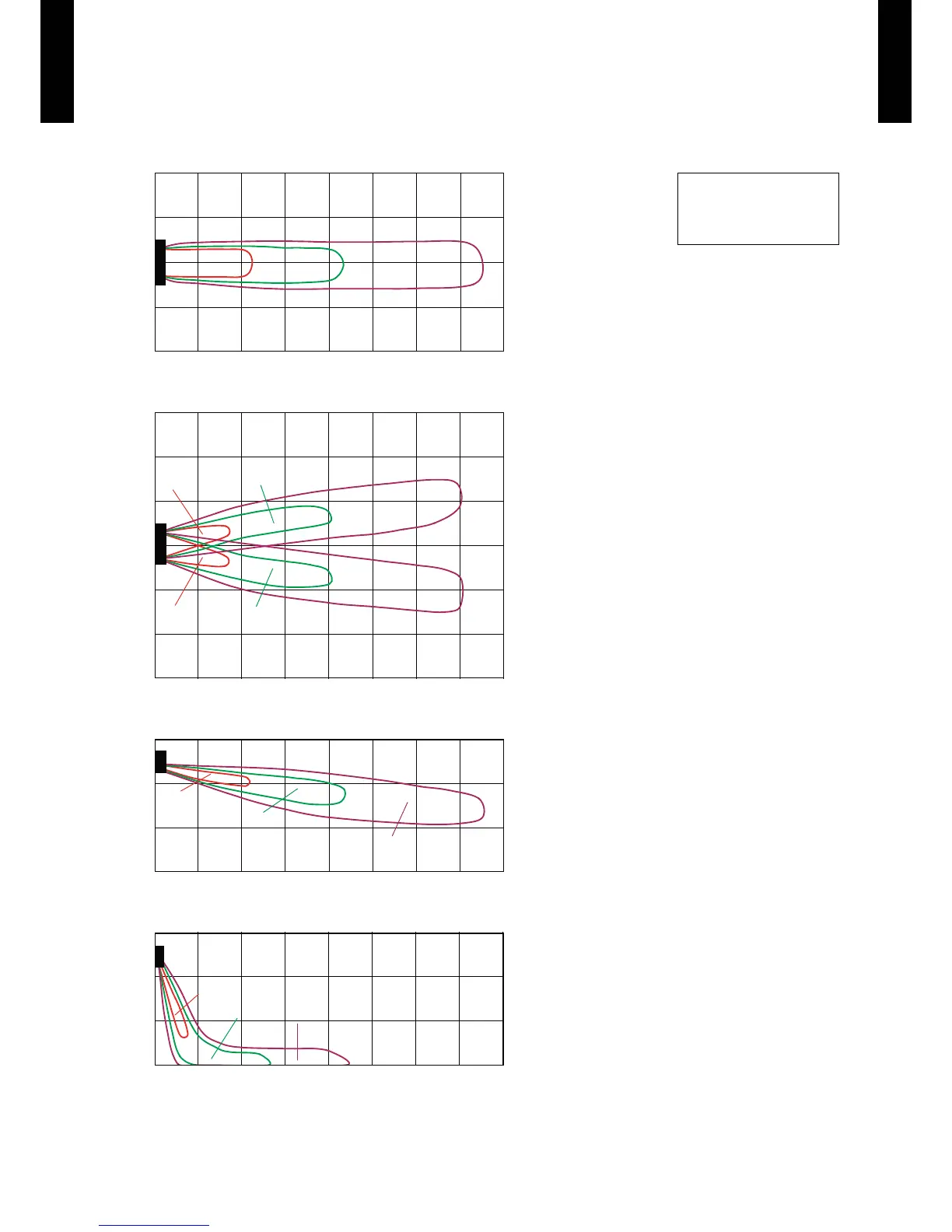

AIR VELOCITY DISTRIBUTION7-1.
MODEL

:AS

A09LE, AS

A12LE
Note:
Fan speed:High
Operation mode:FAN
Voltage:230V
2.0
1.0
0.5
2
1
0
1
2
Unit : m/s(m)
(m)
TOP VIEW
Vertical flap : Up
Horizontal flap : Center
012345678
0.5
0.5
1.0
1.0
2.0
2.0
3
2
1
0
1
2
3
Unit : m/s(m)
TOP VIEW
Vertical flap : Up
Horizontal flap : Right & Left
(m)
012345678
2.0
1.0
0.5
3
2
1
0
Unit : m/s(m)
SIDE VIEW
Vertical flap : Up
Horizontal flap : Center
(m)
012345678
2.0
1.0
0.5
3
2
1
0
Unit : m/s(m)
SIDE VIEW
Vertical flap : Down
Horizontal flap : Center
(m)
012345678

Fujitsu ASYA09LEC Specifications

General

Brand	Fujitsu
Model	ASYA09LEC
Category	Air Conditioner
Language	English
