Fujitsu ASYA09LEC User Manual

-
(
02 - 05
)
-
OUTDOOR UNIT AO

R09-12LE
OUTDOOR UNIT AO

R09-12LE

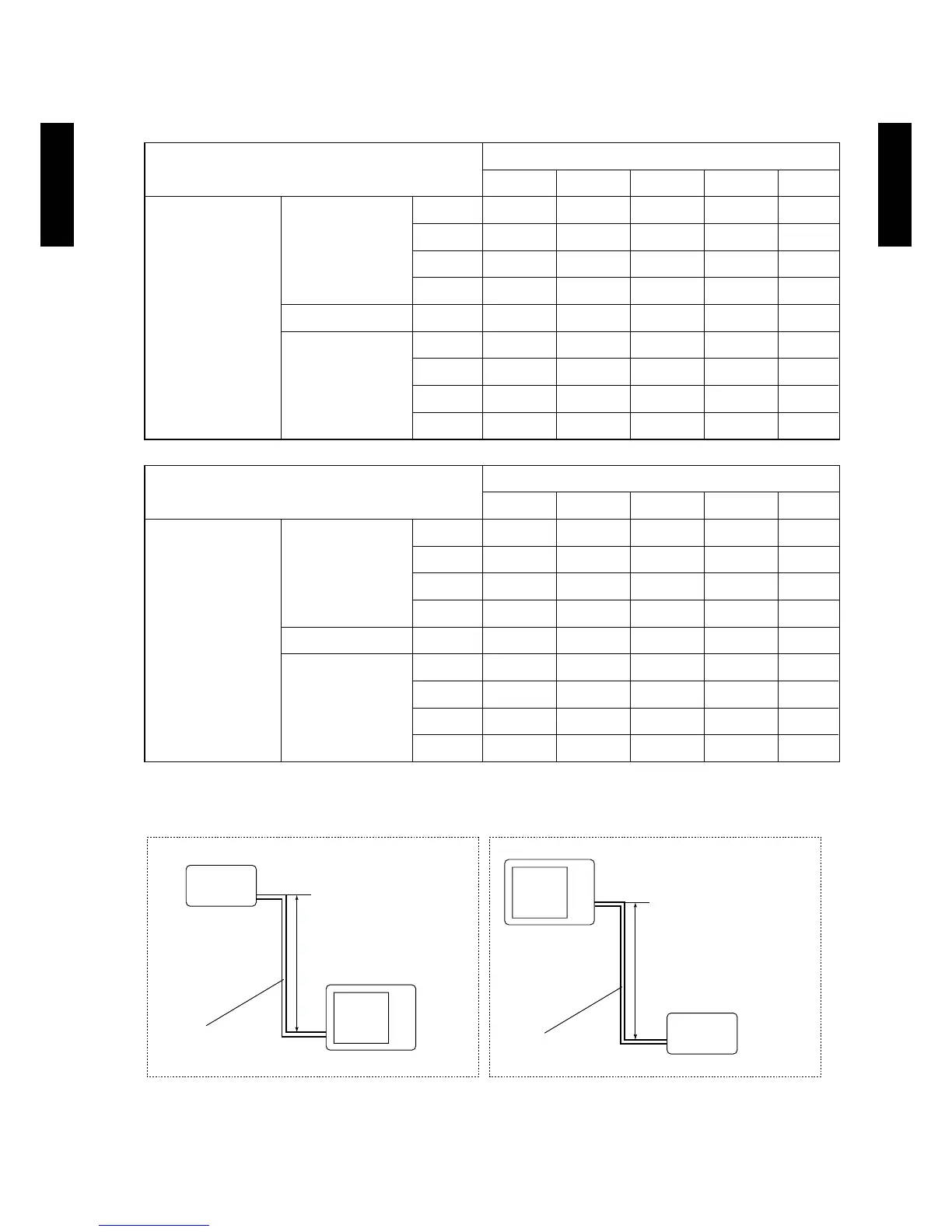

CAPACITY COMPENSATION RATE FOR PIPE LENGTH 5.
AND HEIGHT DIFERENCE
MODEL

:AO

R09LE
Height difference H

1 Indoor unit is upper than outdoor unit.

2 Indoor unit is under than outdoor unit.
Indoor unit
Indoor unit
Connection pipe
Outdoor unit
Outdoor unit
Connection pipe
HEATING
Pipe length (m)
57.5101520
Height difference H
(m)

1
Indoor unit is upper
than outdoor unit.
15
- - - 0.990 0.969
10
- - 1.002 0.990 0.969
7.5
- 1.001 1.002 0.990 0.969
5
1.000 1.001 1.002 0.990 0.969
0
1.000 1.001 1.002 0.990 0.969

2
Indoor unit is under
than outdoor unit
-5
0.995 0.996 0.997 0.985 0.964
-7.5
- 0.994 0.995 0.983 0.962
-10
- - 0.992 0.980 0.960
-15
- - - 0.970 0.950
COOLING
Pipe length (m)
57.5101520
Height difference H
(m)

1
Indoor unit is upper
than outdoor unit.
15 - - - 0.913 0.922
10 - - 0.963 0.928 0.937
7.5 - 0.980 0.967 0.932 0.941
5 0.992 0.984 0.971 0.936 0.945
0 1.000 0.992 0.979 0.943 0.953

2
Indoor unit is under
than outdoor unit
-5 1.000 0.992 0.979 0.943 0.953
-7.5 - 0.992 0.979 0.943 0.953
-10 - - 0.979 0.943 0.953
-15 - - - 0.943 0.953
