WALL MOUNTED TYPE AS

A09-12LE
WALL MOUNTED TYPE AS

A09-12LE

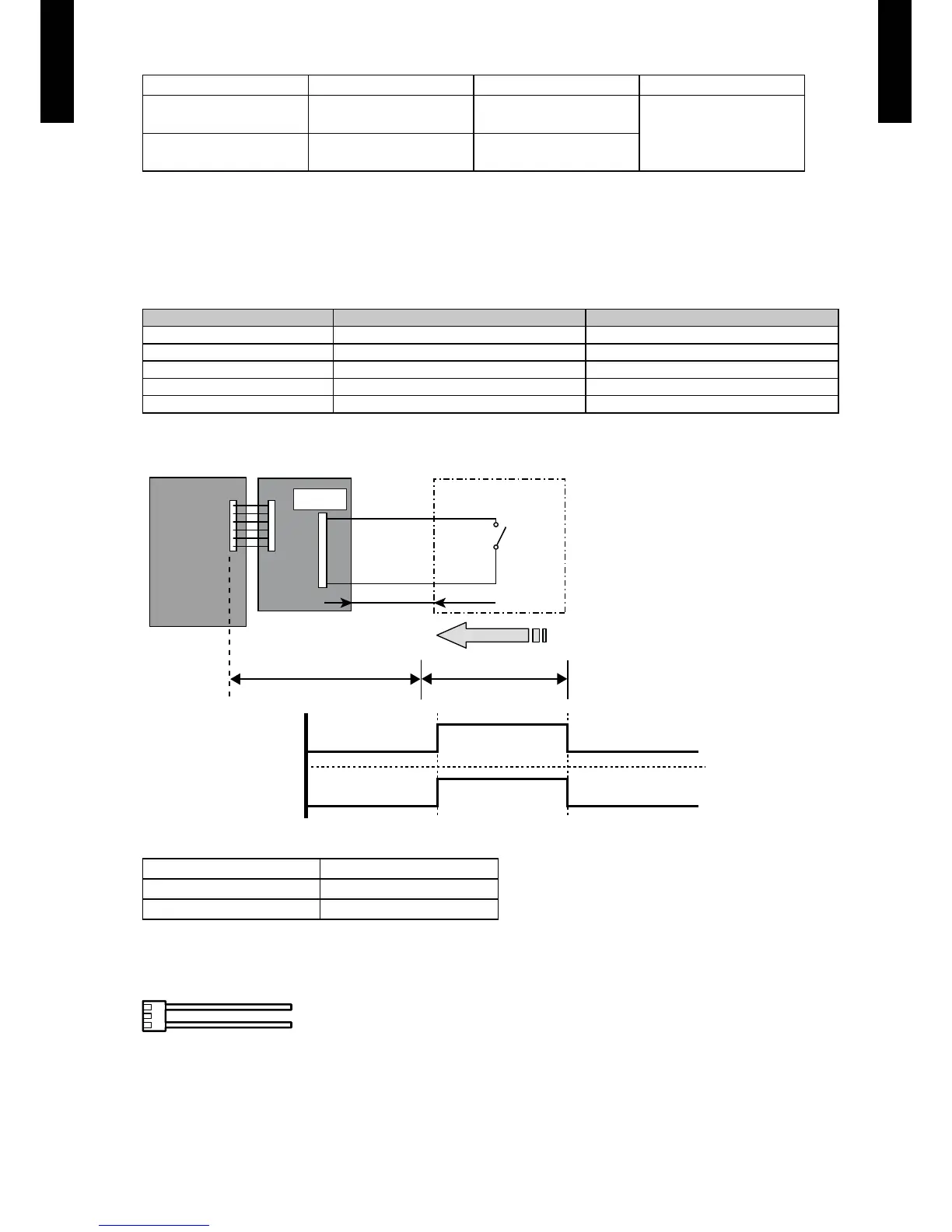

EXTERNAL INPUT & OUTPUT11.
Connector INPUT OUTPUT REMARKS
CN303 Control input -
See external input/
output settings for
details.
CN304 -
Operation status
output
EXTERNAL INPUT11-1.
CONTROL INPUT (Operation/Stop)

The air conditioner can be remotely operated by means of the following on-site work.
Operation is started at the following contents by adding the contact input of a commercial ON/OFF switch to a
connector on the external control PC board and turning it ON.
Initial starting after power turned on Starting other than at the left
Operation mode Auto changeover Mode at previous operation
Set temperature 24°C Temperature at previous operation
Air flow mode AUTO Mode at previous operation
Up-down air direction (swing) Standard air direction (swing OFF) Air direction at previous operation
Left-right air direction (swing) Standard air direction (swing OFF) Air direction at previous operation
Circuit diagram example

Signal
Field supply
Indoor
control PC board Communication kit
Optional parts
Connector
1
3
*10 m
Connected unit
Ex.) Switch
Operation
Stop
ON
OFF
Input signal
Indoor unit
Parts (Optional)

Parts name Model name
External connect kit UTY-XWZX
Communication box kit UTY-XCBXE
* For operating the EXTERNAL INPUT function, the Compact wall mounted type requires the communication kit
(UTY-XCBXE) in addition to the wire (UTY-XWZX).
Wire (External input) : UTY-XWZX
