Fujitsu ASYA09LEC User Manual

-
(
02 - 06
)
-
OUTDOOR UNIT AO

R09-12LE
OUTDOOR UNIT AO

R09-12LE
MODEL

:AO

R12LE

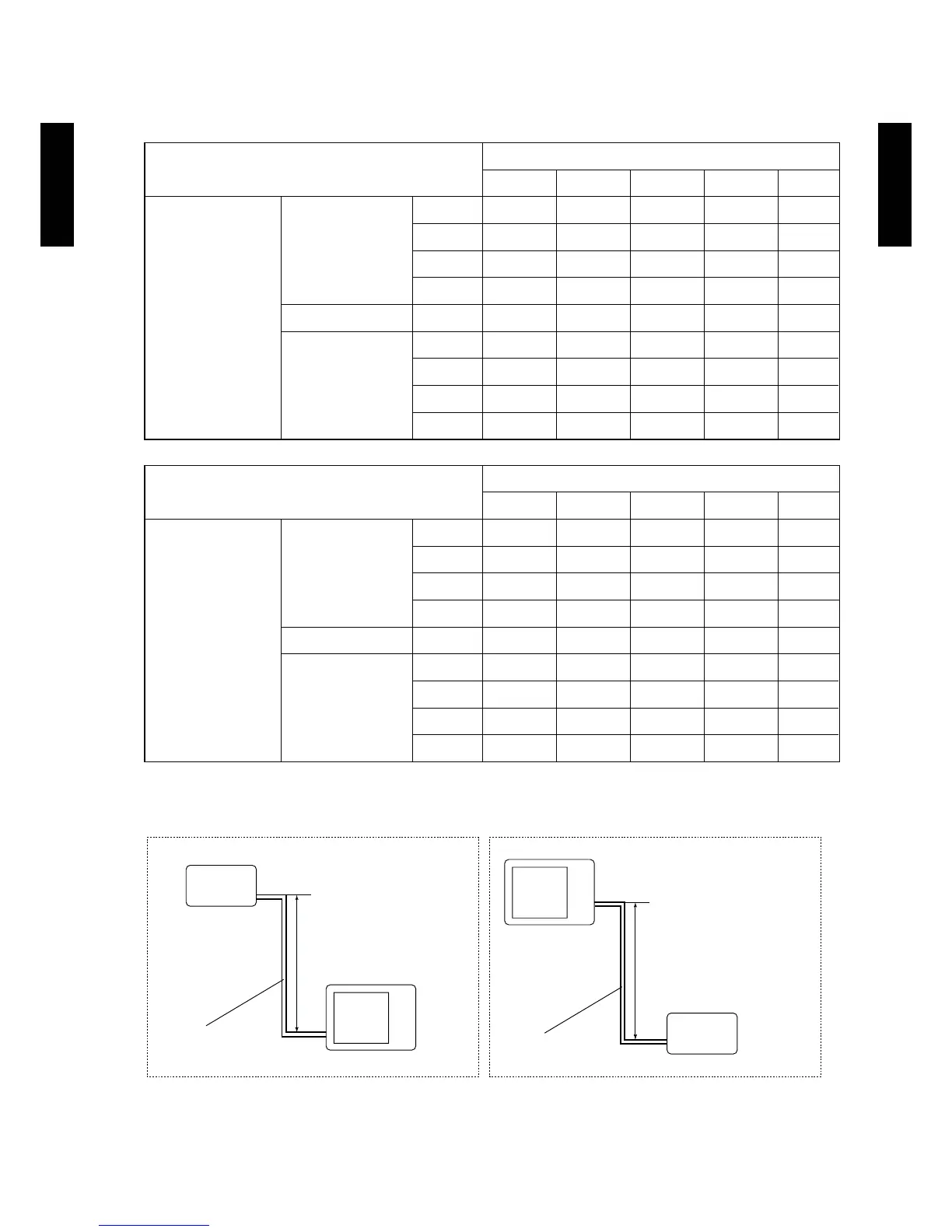

Height difference H

1 Indoor unit is upper than outdoor unit.

2 Indoor unit is under than outdoor unit.
Indoor unit
Indoor unit
Connection pipe
Outdoor unit
Outdoor unit
Connection pipe
HEATING
Pipe length (m)
57.5101520
Height difference H
(m)

1
Indoor unit is upper
than outdoor unit.
15
---0.952 0.932
10
- - 1.002 0.952 0.932
7.5
- 1.010 1.002 0.952 0.932
5
1.000 1.010 1.002 0.952 0.932
0
1.000 1.010 1.002 0.952 0.932

2
Indoor unit is under
than outdoor unit
-5
0.995 1.005 0.997 0.947 0.927
-7.5
- 1.002 0.994 0.945 0.925
-10
- - 0.992 0.942 0.923
-15
---0.933 0.913
COOLING
Pipe length (m)
57.5101520
Height difference H
(m)

1
Indoor unit is upper
than outdoor unit.
15
---0.882 0.880
10
- - 0.943 0.896 0.894
7.5
- 0.968 0.947 0.900 0.898
5
0.992 0.972 0.951 0.903 0.901
0
1.000 0.980 0.958 0.911 0.909

2
Indoor unit is under
than outdoor unit
-5
1.000 0.980 0.958 0.911 0.909
-7.5
- 0.980 0.958 0.911 0.909
-10
- - 0.958 0.911 0.909
-15
---0.911 0.909
