Fujitsu ASYA09LEC User Manual

-
(
01 - 05
)
-
WALL MOUNTED TYPE AS

A09-12LE
WALL MOUNTED TYPE AS

A09-12LE

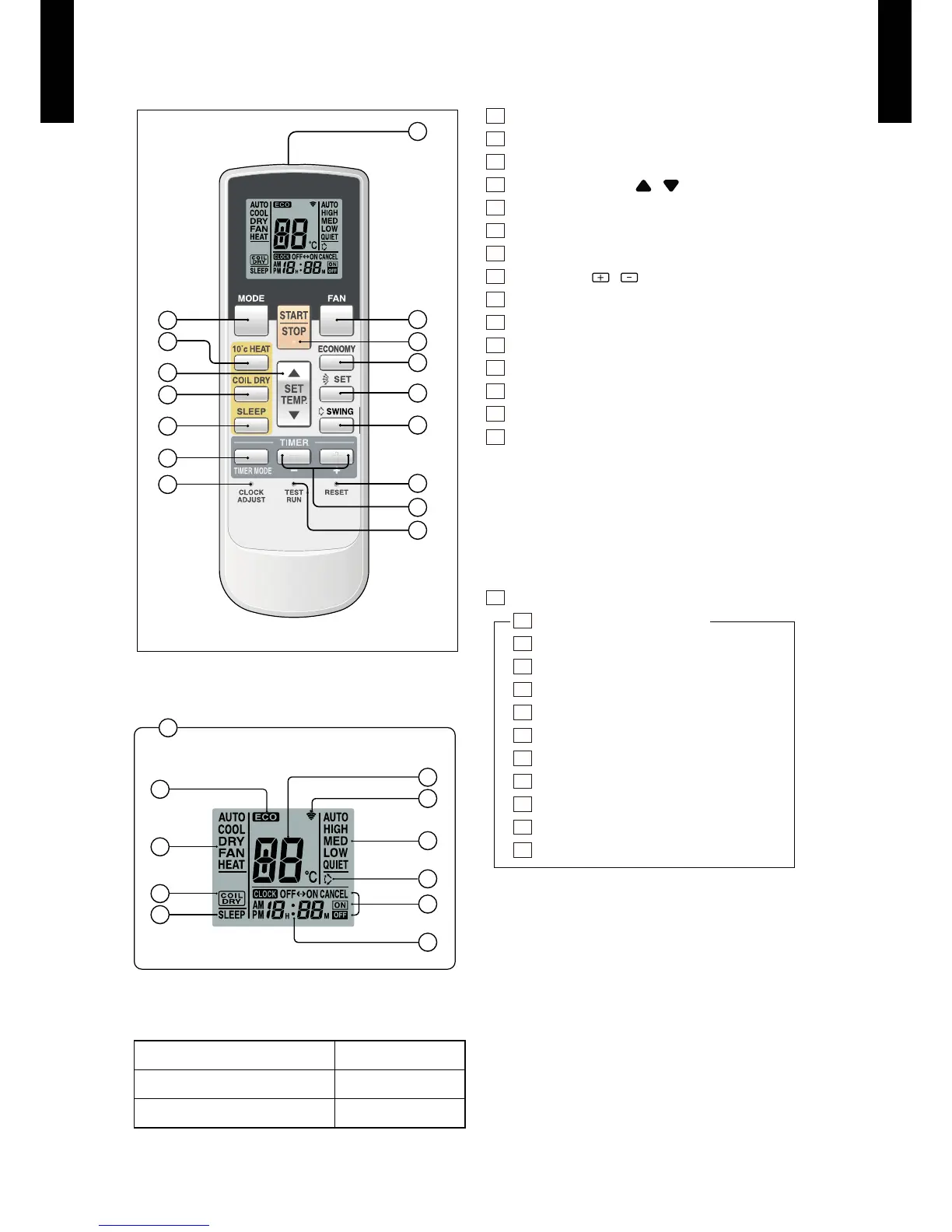

FUNCTIONS

Display panel
SPECIFICATION

12
10
11
9
6
13
14
8
15
7
1
5
4
3
2
16
17
20
21
25
26
18
24
23
27
22
19
SIZE (H x W x D mm) 176 x 56 x 18
WEIGHT ( g ) 110
ACCESSORY Holder
1
START/STOP button
2
MODE button
3
10°C HEAT button
4
SET TEMP. button ( / )
5
COIL DRY button
6
Signal transmitter
7
TIMER MODE button
8
TIMER SET ( / ) button
9
FAN button
10
ECONOMY button
11
START/STOP button
12
SET button
13
SWING button
14
RESET button
15
TEST RUN button
This button is used when installing the air conditioner, and

should not be used under normal conditions, as it will cause the
indoor unit's thermostat function to operate incorrectly.
If this button is pressed during normal operation, the indoor

unit will switch to test operation mode, and the Indoor Unit’s
OPERATION Indicator Lamp and TIMER Indicator Lamp will
begin to flash simultaneously.
To stop the test operation mode, press the START/STOP button

to stop the air conditioner.
16
CLOCK ADJUST button
17
Remote controller display
18
Transmit indicator
19
Clock display
20
ECONOMY display
21
Operating mode display
22
Timer mode display
23
Fan speed display
24
Temperature set display
25
COIL DRY display
26
SLEEP display
27
SWING display
