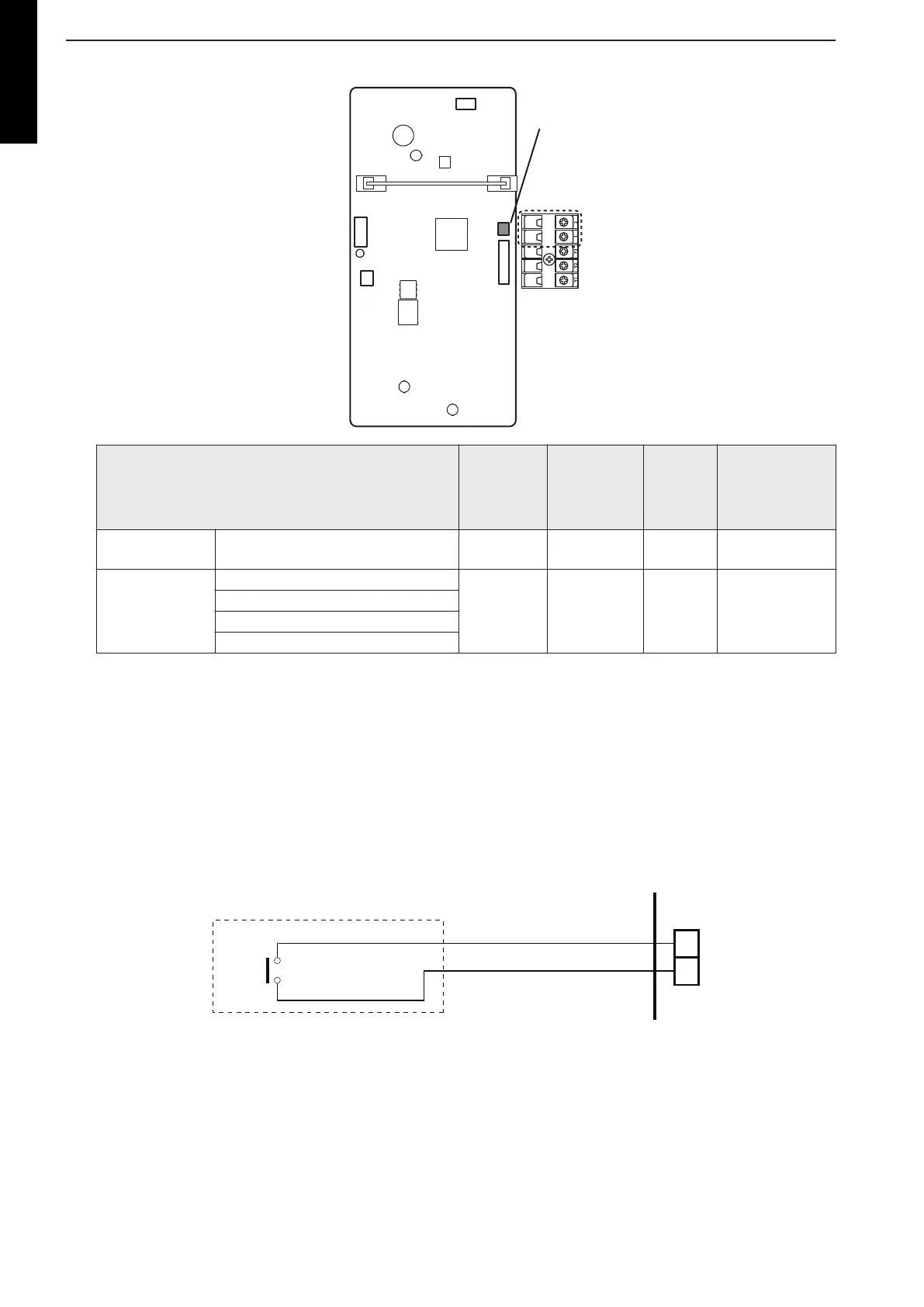

11-2. Mini duct type
External input and output Connector Input select
Input
signal
External
connect kit
(Optional
parts)
External input
Operation/Stop
Forced stop
Terminal Dry contact Edge —
External output
Operation status
CN47 — — UTY-XWZXZG
Error status
Indoor unit fan operation status
External heater output
¢
External input
With using external input function, some functions on this product can be controlled from an exter-
nal device.
• “Operation/Stop” mode or "Forced stop" mode can be selected with function setting of indoor
unit.
• A twisted pair cable (22AWG) should be used. Maximum length of cable is 150 m.
• The wire connection should be separate from the power cable line.
Indoor unit functions such as Operation/Stop can be done by using indoor unit terminals.
*1: The switch can be used on the following condition: DC 12 V to 24 V, 1 mA to 15 mA.
DESIGN & TECHNICAL MANUAL
- 148 -
MULTI TYPE
5, 6 ROOMS TYPE
