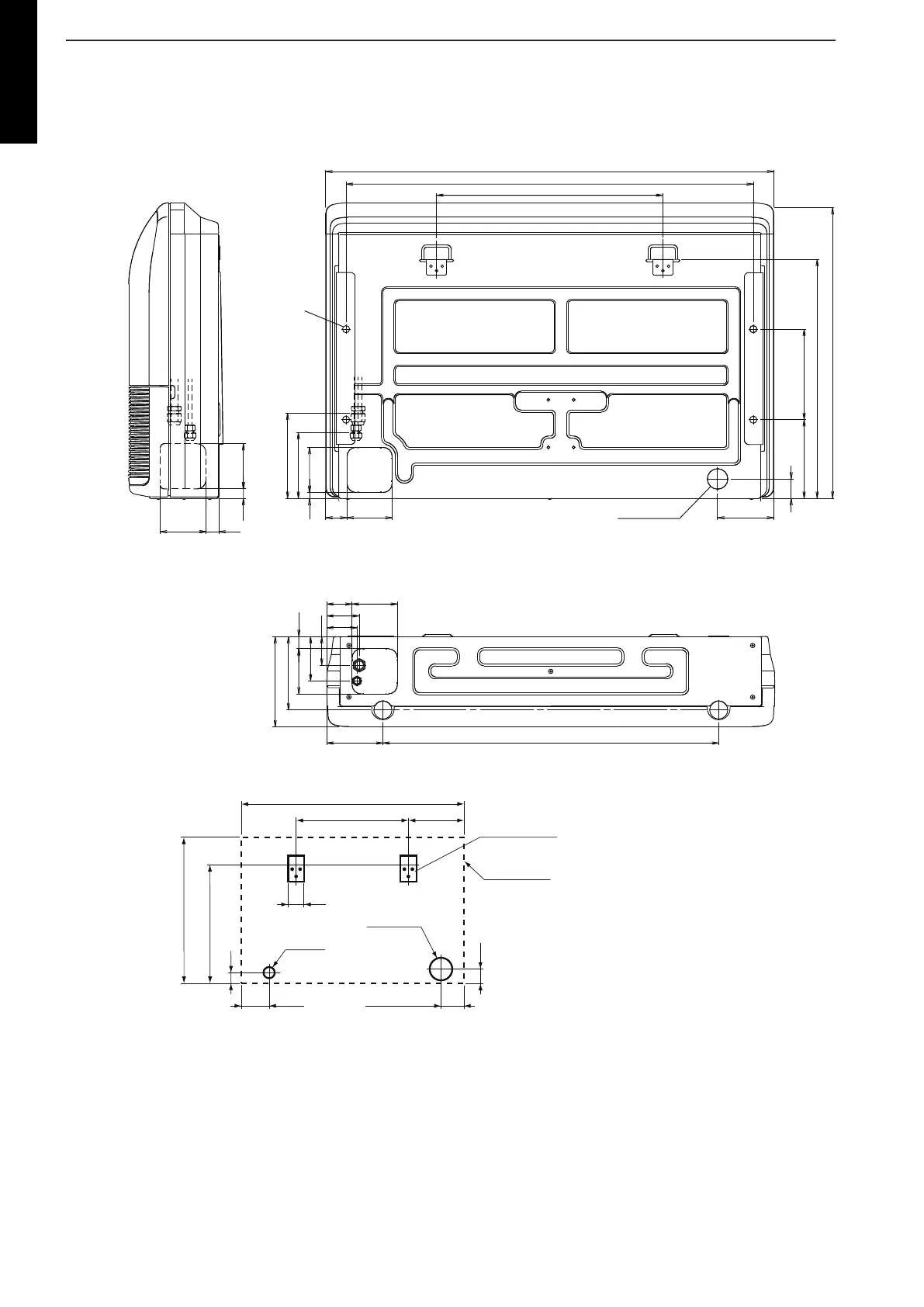

3-5. Floor/Ceiling type
¢ Models: ABYG14LVTA and ABYG18LVTB
Side view Rear view
Bottom view
100 hole
50 hole
125
100
655
530
45
65
500 245
990
65
Wall bracket
Side of unit
Unit: mm
500
900
990
100 28
47 100
124
100
100
175 200
530
655
43
13
100
124 742
56
72
67
63
27
98
199
162
100
190
145
20
ø45-mm hole
(Use M10 screw
bolt.)
Hole for lifting bolt
DESIGN & TECHNICAL MANUAL
- 38 -
MULTI TYPE
5, 6 ROOMS TYPE
