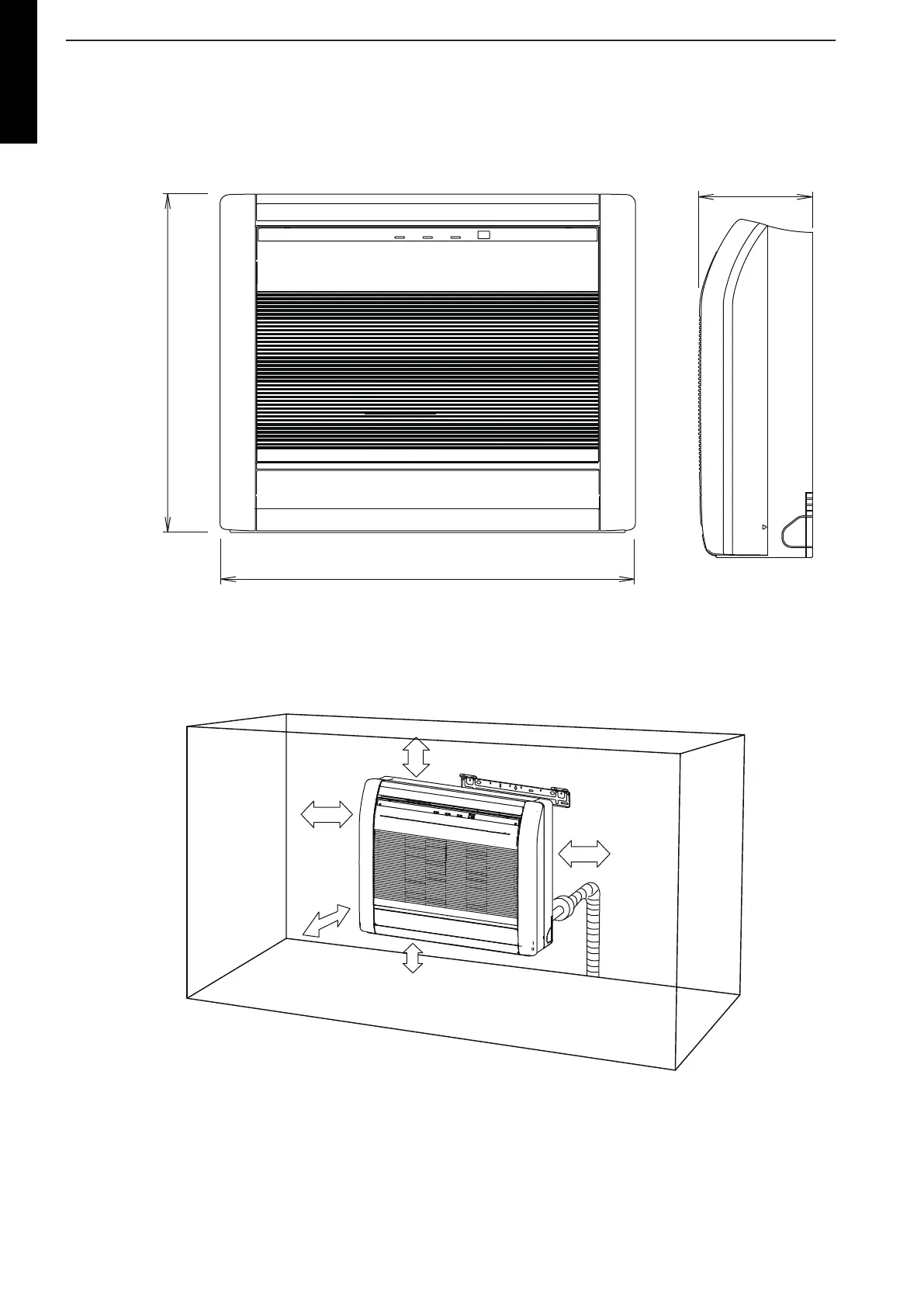

3-6. Floor type
¢ Models: AGYG09LVCA, AGYG12LVCA, and AGYG14LVCA
600
200
Side view
Front view
740
Unit: mm
¢
Installation space
80 or more
50 or more
80 or more
100 or more
100 or below from the floor
Unit: mm
DESIGN & TECHNICAL MANUAL
- 40 -
MULTI TYPE
5, 6 ROOMS TYPE
