Fujitsu ASYG09LMCA Design & Technical Manual

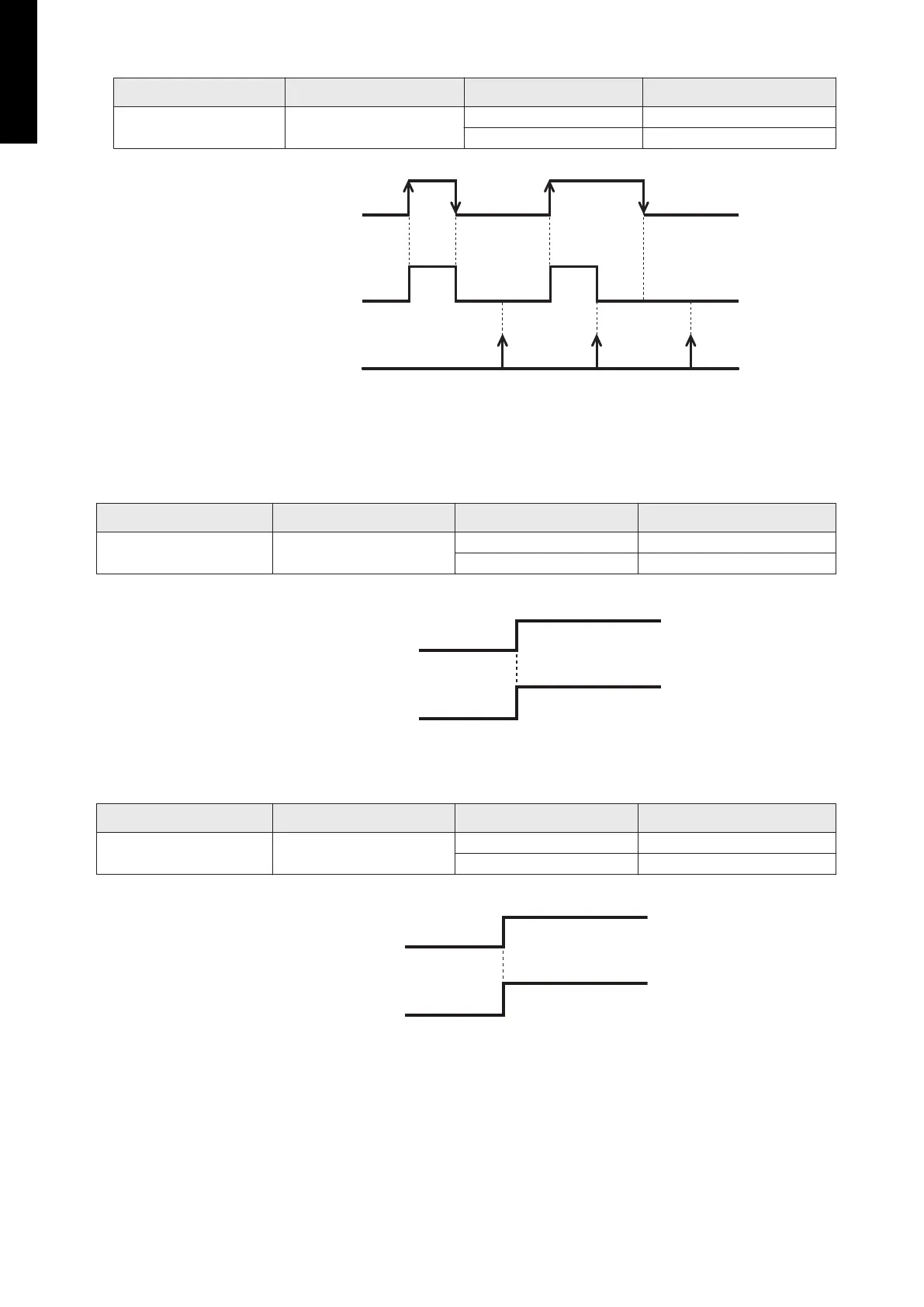

• When function setting is "Operation/Stop" mode 2
Function setting External input Input signal Command
46—03 Terminal
Off → On Operation
On → Off Stop (R.C. disabled)
On
Input
Off
Operation
Indoor unit
Stop
(R.C. disabled)
Remote controller
On OnOff
NOTE: When "Operation/Stop" mode 2 function is used with forming a remote controller group,
connect the same equipment to each indoor unit within the group.

Control output function
Function setting External output Output signal Command
60—00 CN47
Low → High Operation
High → Low Stop
The output is low when the unit is stopped.
Operation
Stop
High
Low
CN47
Indoor unit

Error status
Function setting External output Output signal Command
60—09 CN47
Low → High Error
High → Low Normal
The output is ON when an error is generated for the indoor unit.
Error
Normal
High
Low
CN47
Indoor unit
DESIGN & TECHNICAL MANUAL
- 152 -
MULTI TYPE 5, 6 ROOMS TYPE
