Fujitsu ASYG09LMCA Design & Technical Manual

¢
System diagram
1 remote controller:
A
Indoor unit
Remote controller
2 remote controllers:
Primary
Secondary
BC
Indoor unit
Remote controllers
A, B, C: Remote controller cable
A ≤ 500 m;B + C ≤ 500 m
¢

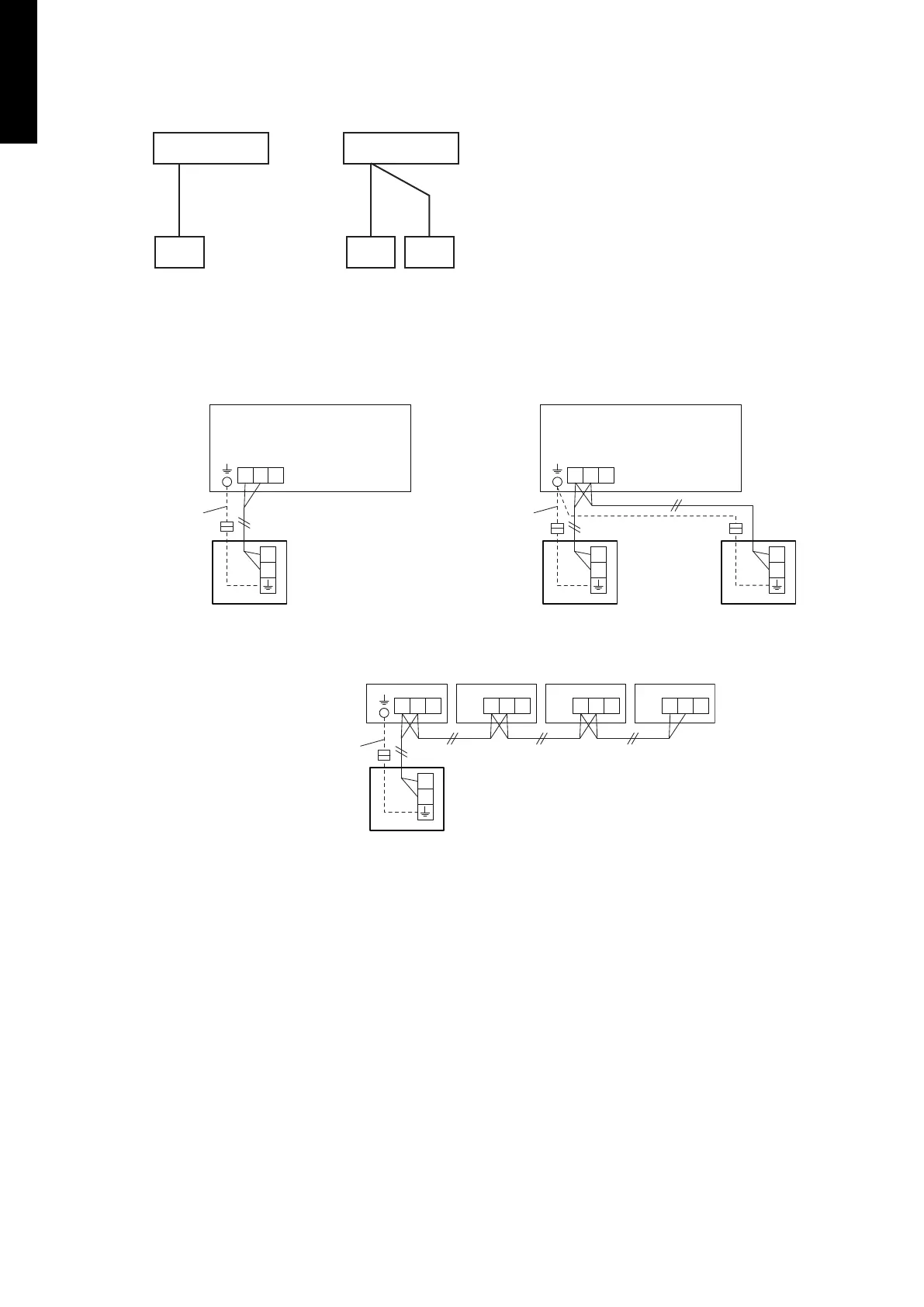

Electrical wiring
1 remote controller:
When there is
a functional
grounding
Remote controller
Indoor unit
Y1
Y1
Y2
Y2
Y3
2 remote controllers:
When there is
a functional
grounding
Remote controller Remote controller
Y1
Y1
Y2
Y2
Y1
Y2
Y3
Indoor unit
Group control:
When there is
a functional grounding
Remote controller
Indoor units
Y2
Y2 Y2 Y2 Y2Y3 Y3 Y3 Y3
Y1
Y1 Y1 Y1 Y1
NOTE:
Group connection with Polar 3-wired remote controller is not allowed.
DESIGN & TECHNICAL MANUAL
- 188 -
MULTI TYPE 5, 6 ROOMS TYPE
