Fujitsu ASYG09LMCA Design & Technical Manual

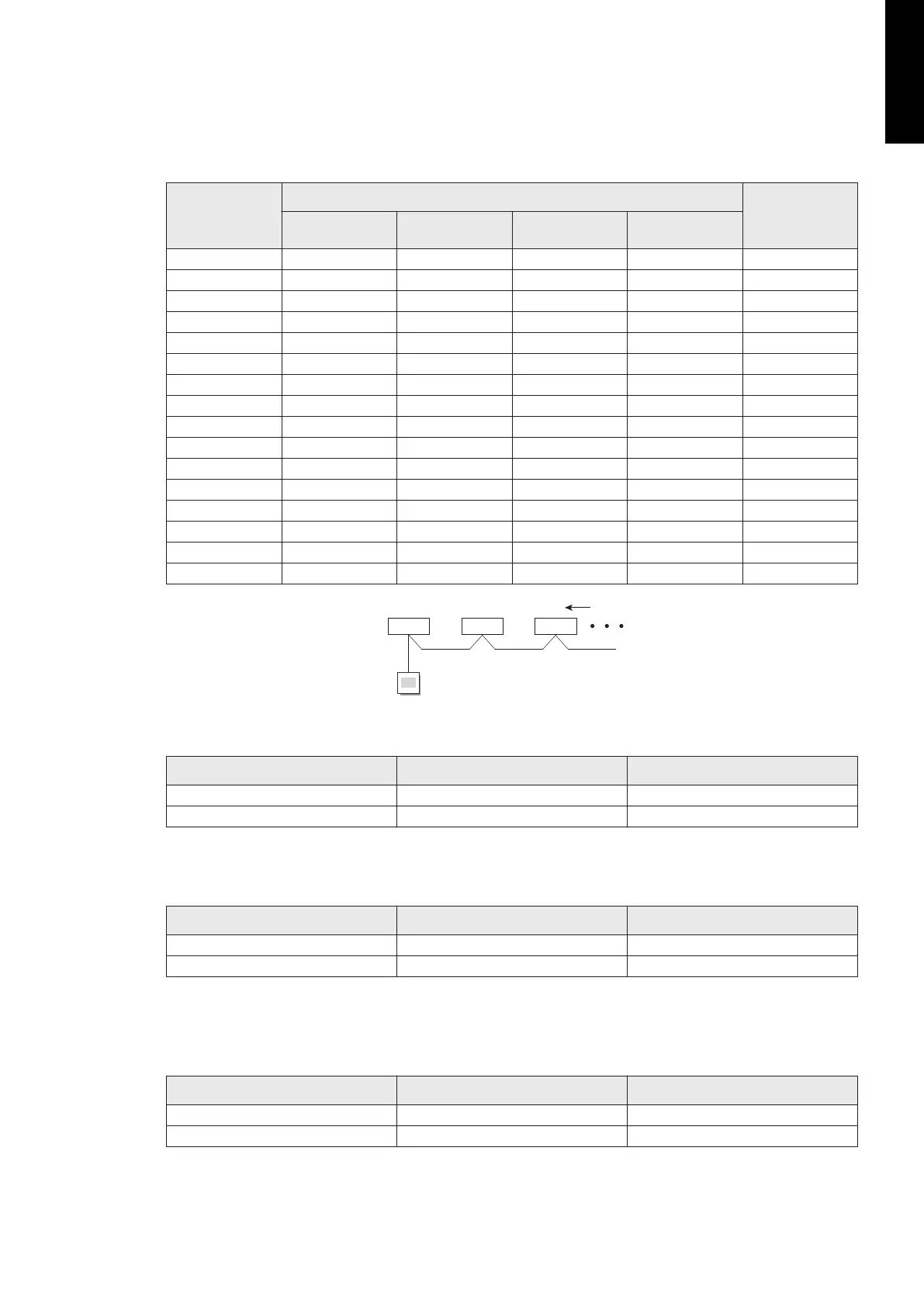

¢ DIP switch setting
• Remote controller address setting (SW100)
When operating a number of indoor units by using a wired remote controller, DIP switch
setting for assigning unit number to each indoor unit is required.
DIP switches are normally set to make the unit number 00.
Remote
controller
address
DIP switch number
Factory
setting
1 2 3 4
00 OFF OFF OFF OFF ♦
01 ON OFF OFF OFF
02 OFF ON OFF OFF
03 ON ON OFF OFF
04 OFF OFF ON OFF
05 ON OFF ON OFF
06 OFF ON ON OFF
07 ON ON ON OFF
08 OFF OFF OFF ON
09 ON OFF OFF ON
10 OFF ON OFF ON
11 ON ON OFF ON
12 OFF OFF ON ON
13 ON OFF ON ON
14 OFF ON ON ON
15 ON ON ON ON
00 01 02
Remote controller address
Indoor unit
Remote controller
• Switch 1: Drainage function setting (SW101)
Switch 1 Drainage function Factory setting
ON Disabled
OFF Enabled ♦
• Switch 2: Auto louver grille setting (SW101)
When Auto louver grille kit (optional parts) is attached, set to "Enabled".
Switch 2 Auto louver grille setting Factory setting
ON Enabled
OFF Disabled ♦
• Switch 3: Fan delay setting (SW101)
When the indoor unit is stopped while operating in conjunction with auxiliary heater, the in-
door unit fan operation will continue for 1 minute.
Switch 3 Fan delay Factory setting
ON Enabled
OFF Disabled ♦
- 201 -
MULTI TYPE 5, 6 ROOMS TYPE
