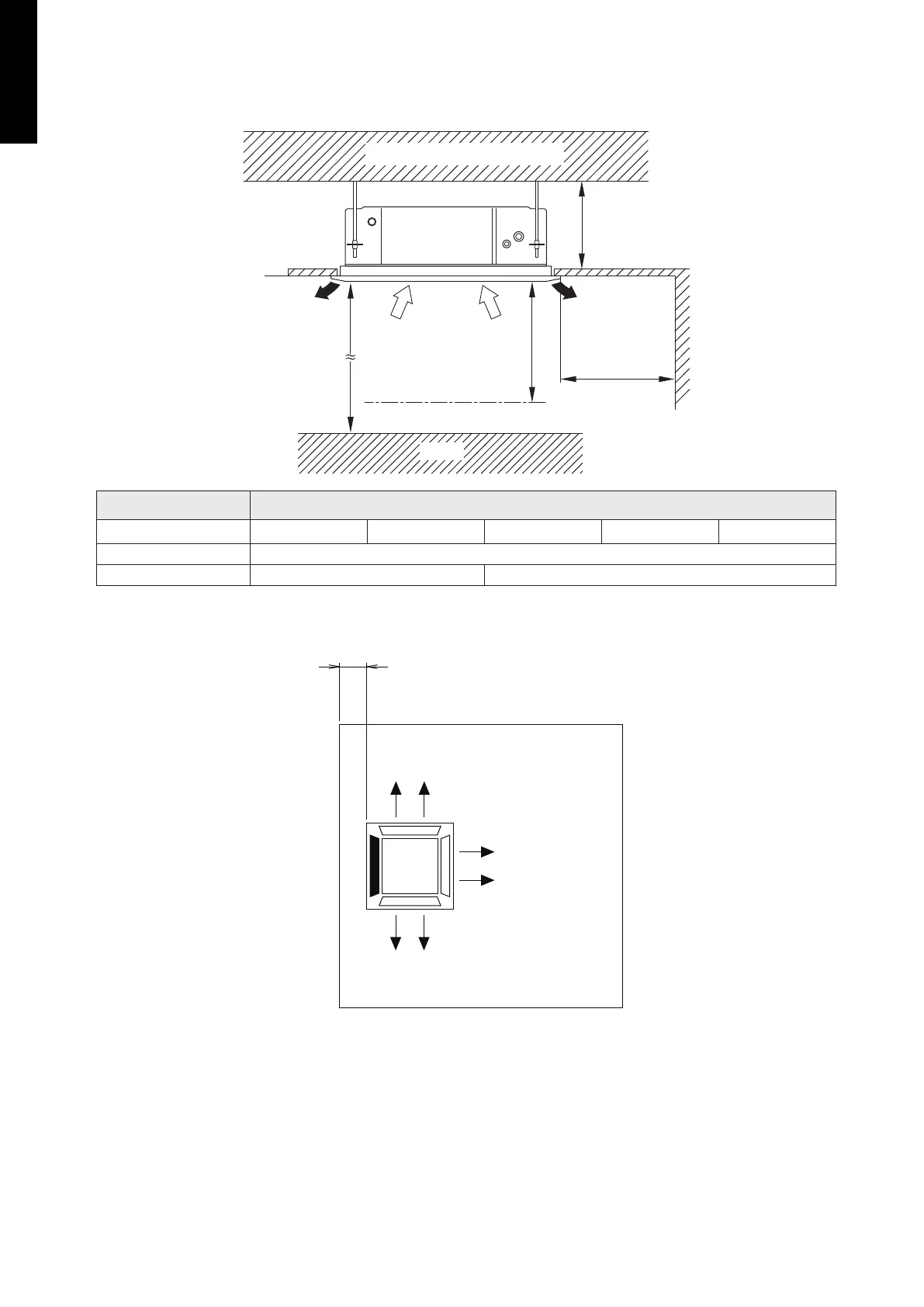

Installation space
1,000
or more
1,000
or more
1,800
or more
262
or more
Strong and durable ceiling
Obstruction
Floor
Unit: mm
Maximum height from floor to ceiling (Unit: mm)
Model name AUYG07LVLA AUYG09LVLA
AUYG12LVLB AUYG14LVLB AUYG18LVLB
Standard mode 2,700
High ceiling mode — 3,000
• 3-way direction setting
100 or more*
Unit: mm
NOTES:
• *: When installing the indoor unit, be careful about the maintenance space.
• To set “3-direction”, optional Air outlet shutter plate (UTR-YDZB) must be installed, and the
“outlet-direction” need to be switched to “3-way” by remote controller.
• The ceiling height cannot be set in the 3-way outlet mode. Therefore, ceiling height setting
change by function setting 20 is prohibited. For details, refer to "Contents of function setting"
on page 241.
DESIGN & TECHNICAL MANUAL
- 22 -
MULTI TYPE 5, 6 ROOMS TYPE

Fujitsu ASYG09LMCA Specifications

General

Brand	Fujitsu
Model	ASYG09LMCA
Category	Air Conditioner
Language	English
