Fujitsu ASYG09LMCA Design & Technical Manual

¢ Model: ARYG18LSLAP

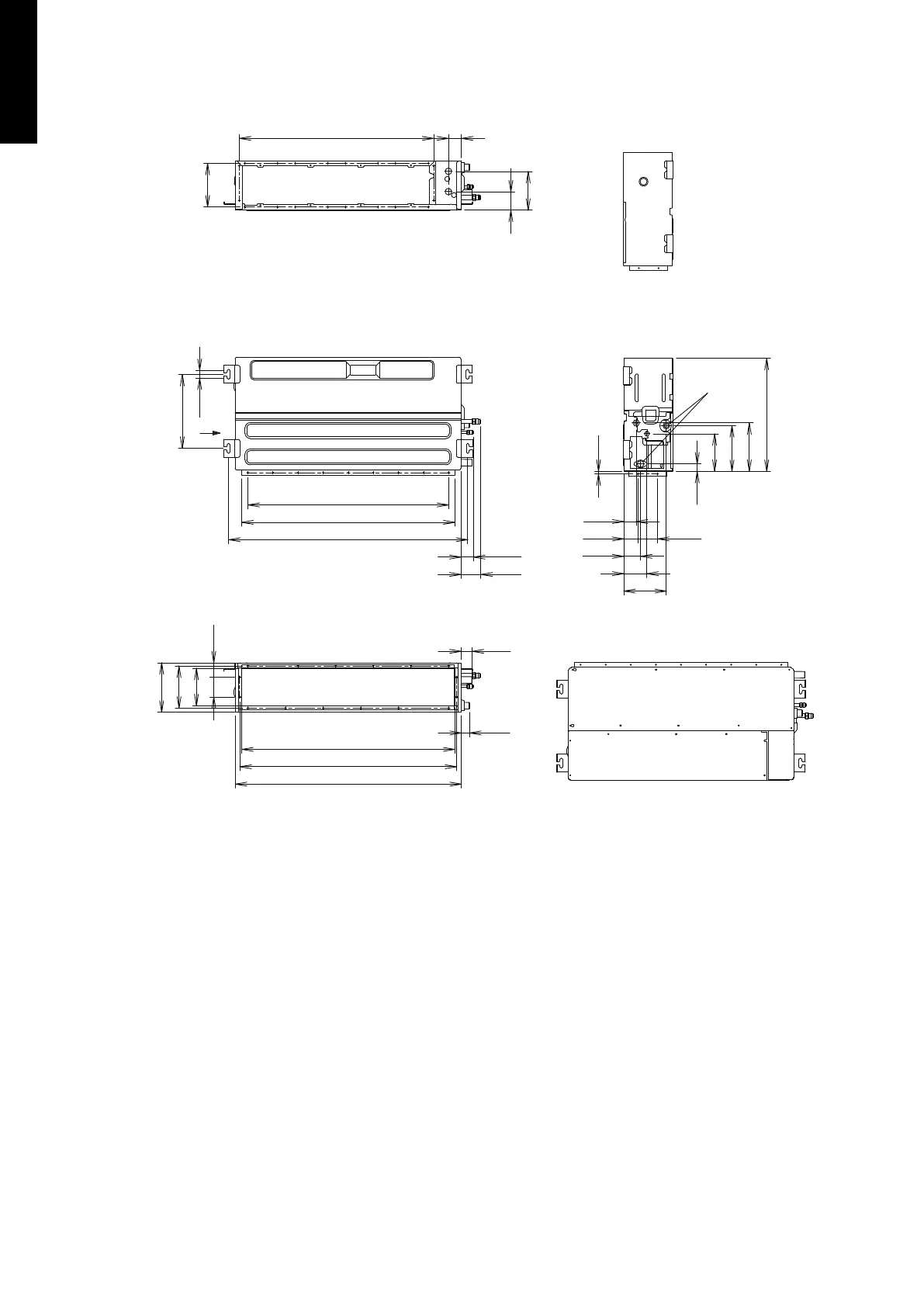

Drain port
A
Unit: mm
Rear view
View A
Top view
Side view
Front view
Bottom view
775
174
153
72
52
295
30
49
85
952
850
P 100 × 8 = 800
49
92
78
169
56
66
10
30
150
182
193
450
850
43
33
864
900
198 168 150
78 57
DESIGN & TECHNICAL MANUAL
- 24 -
MULTI TYPE 5, 6 ROOMS TYPE

Fujitsu ASYG09LMCA Specifications

General

Brand	Fujitsu
Model	ASYG09LMCA
Category	Air Conditioner
Language	English
