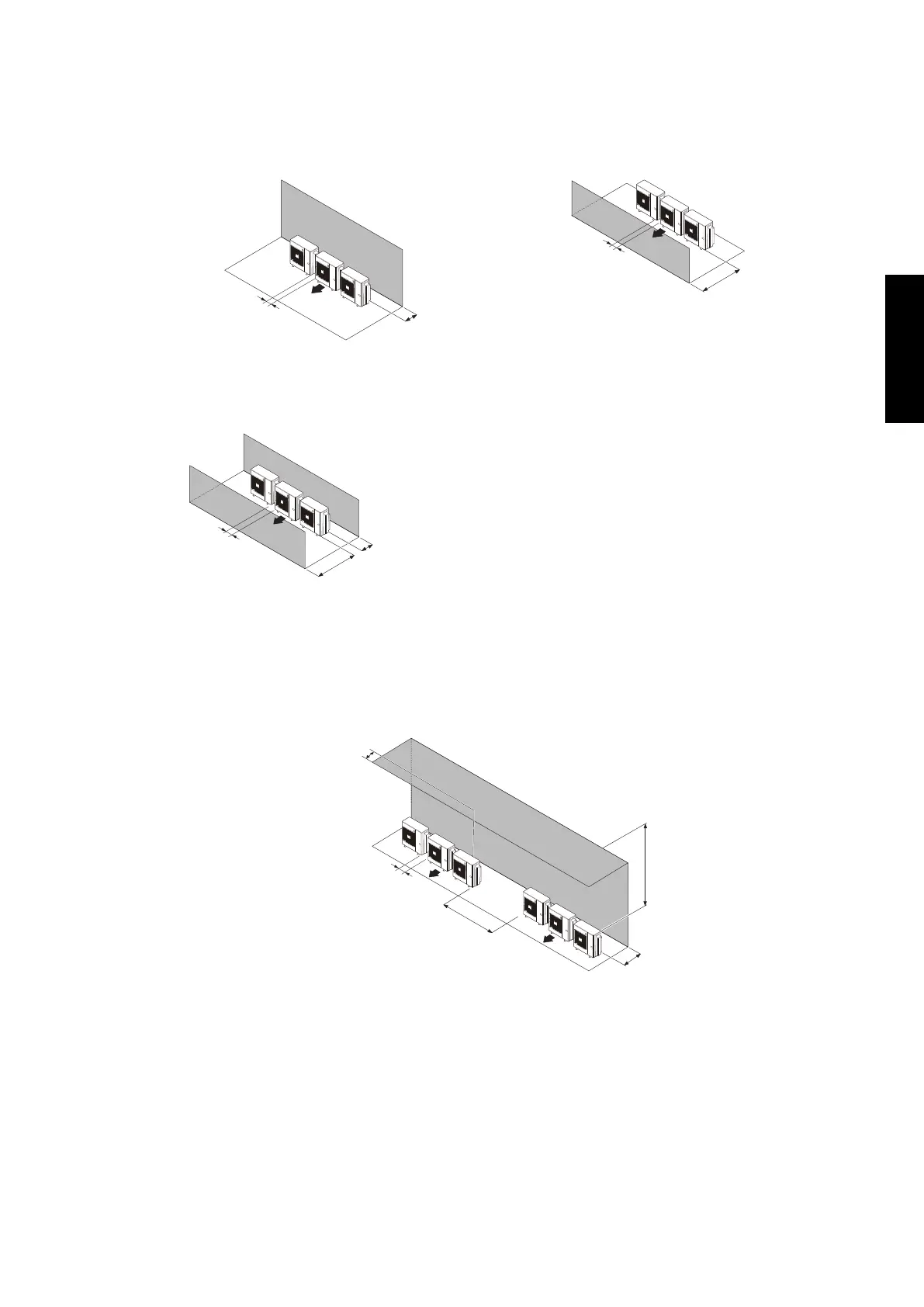

 Multiple outdoor unit installation

• When the upper space is open:

Unit: mm

When there are obstacles at the rear only. When there are obstacles at the front only.

300

or more

250

or more

250

or more

1,500

or more

When there are obstacles at the front and

rear.

500 or more

1,500 or more

250

or more

• When there is an obstruction in the upper space:

Unit: mm

When there are obstacles at the rear and above.

1,500

or more

500

or more

Max. 300

1,500

or more

250

or more

- 349 -

OUTDOOR UNIT

AOYG45LBLA6
