4. After the check run is completed, results will be displayed. Fill the displayed results in the re-
sult table accordingly.

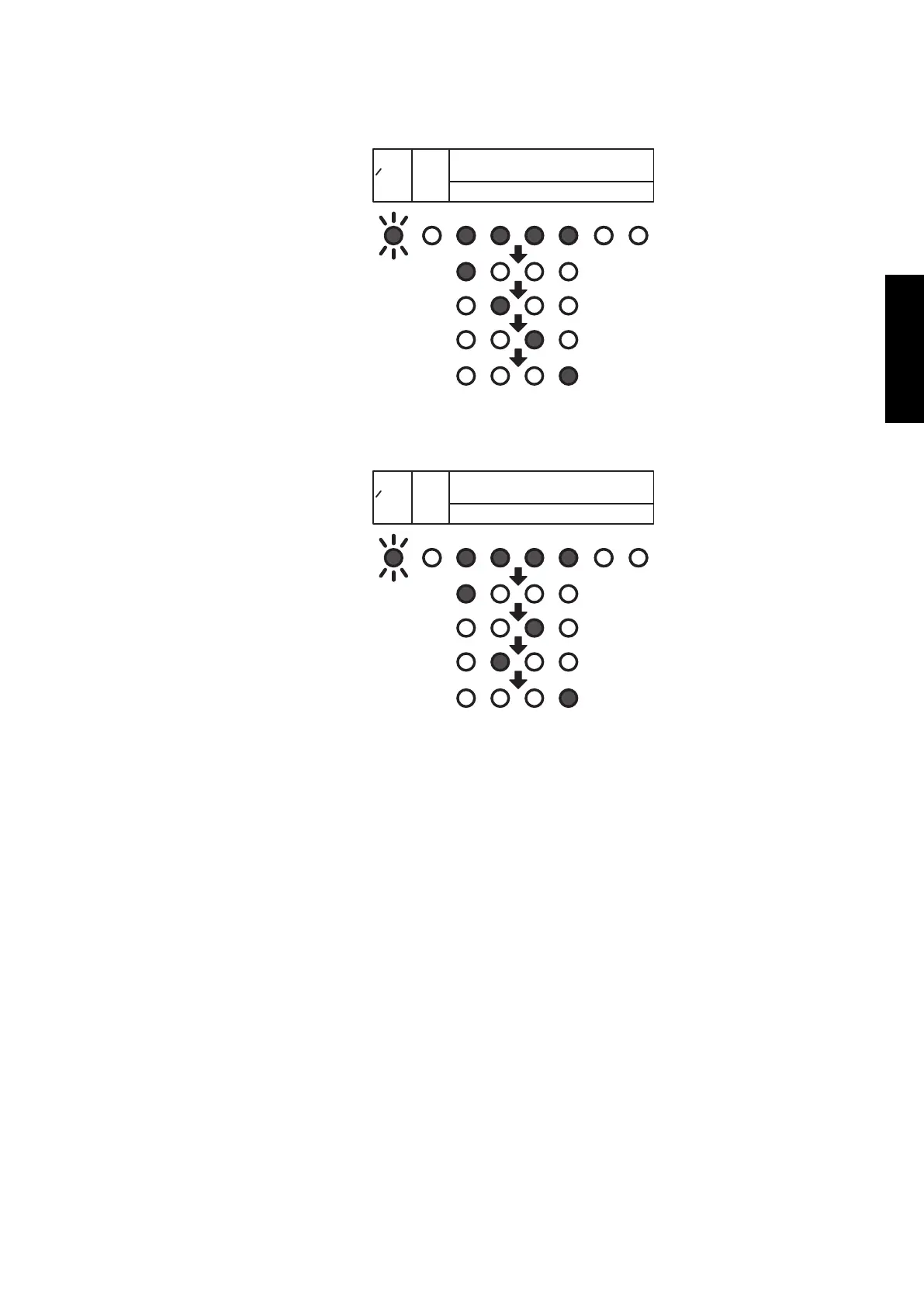

• If the connection is correct (Example: When 4 indoor units are connected)
After the number of connected units are displayed, the LED for each unit will light up in or-
der from A to D.
(2-blink)
(7 sec.)
(7 sec.)
(7 sec.)
(7 sec.)
FEDC
MONITOR
ERROR
BA
POWER
MODE
• If the connection is incorrect (Example: When connection of B and C of the 4 units
are reversed)
After the number of connected units are displayed, B and C will light up in reverse.
FEDC
MONITOR
ERROR
BA
POWER
MODE
(7 sec.)
(7 sec.)
(7 sec.)
(7 sec.)
(2-blink)
NOTES:
• Automatic wiring correction will not be completed if the power supply is disconnected
while displaying the results. To confirm the automatic wiring correction, be sure to carry
out step 5.
• If frost is formed on the outdoor unit while displaying the results, automatic defrost func-
tion will be operated. Proceed to step 5 after the defrost function is finished.
- 405 -
