Fujitsu ASYG09LMCA Design & Technical Manual

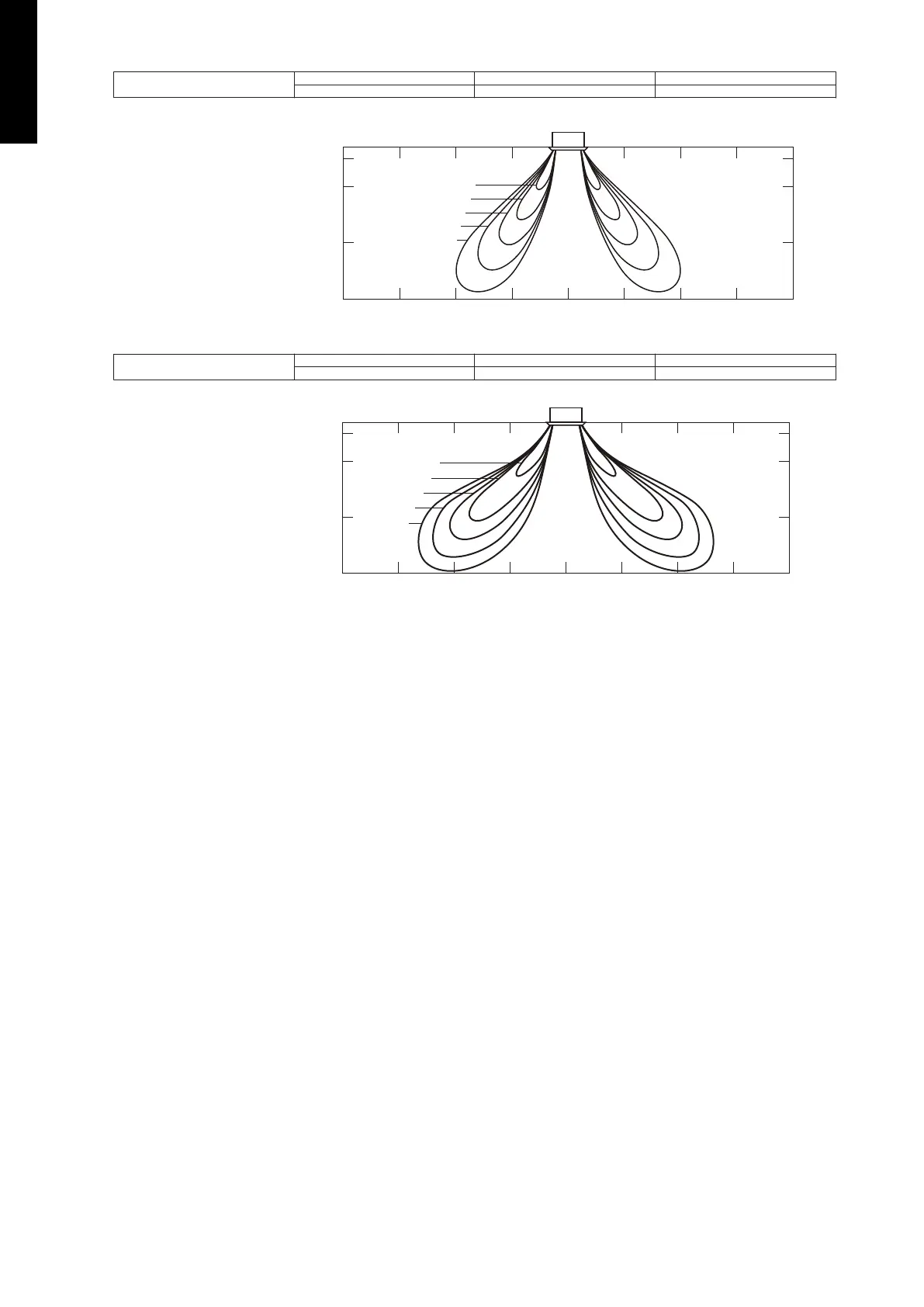

• Air velocity distribution
Measuring conditions
NOTE:Reference data
Fan speed Operation mode Outlet directions
HIGH HEAT 4-way air outlet
Side view
Vertical airflow direction louver: down
0.25
0.5
1.0
1.5
2.0
0
1
2
2.7
(m)
2.5
4
3
210
1
2
34
(m)
Unit : m/s
• Air temperature distribution
Measuring conditions
NOTE:Reference data
Fan speed Operation mode Outlet directions
HIGH HEAT 4-way air outlet
Side view
Vertical airflow direction louver: down
22
24
26
28
30
0
1
2
2.7
(m)
2.5
43
2
1
0
1
2
34
(m)
Unit : °C
DESIGN & TECHNICAL MANUAL
- 54 -
MULTI TYPE 5, 6 ROOMS TYPE
