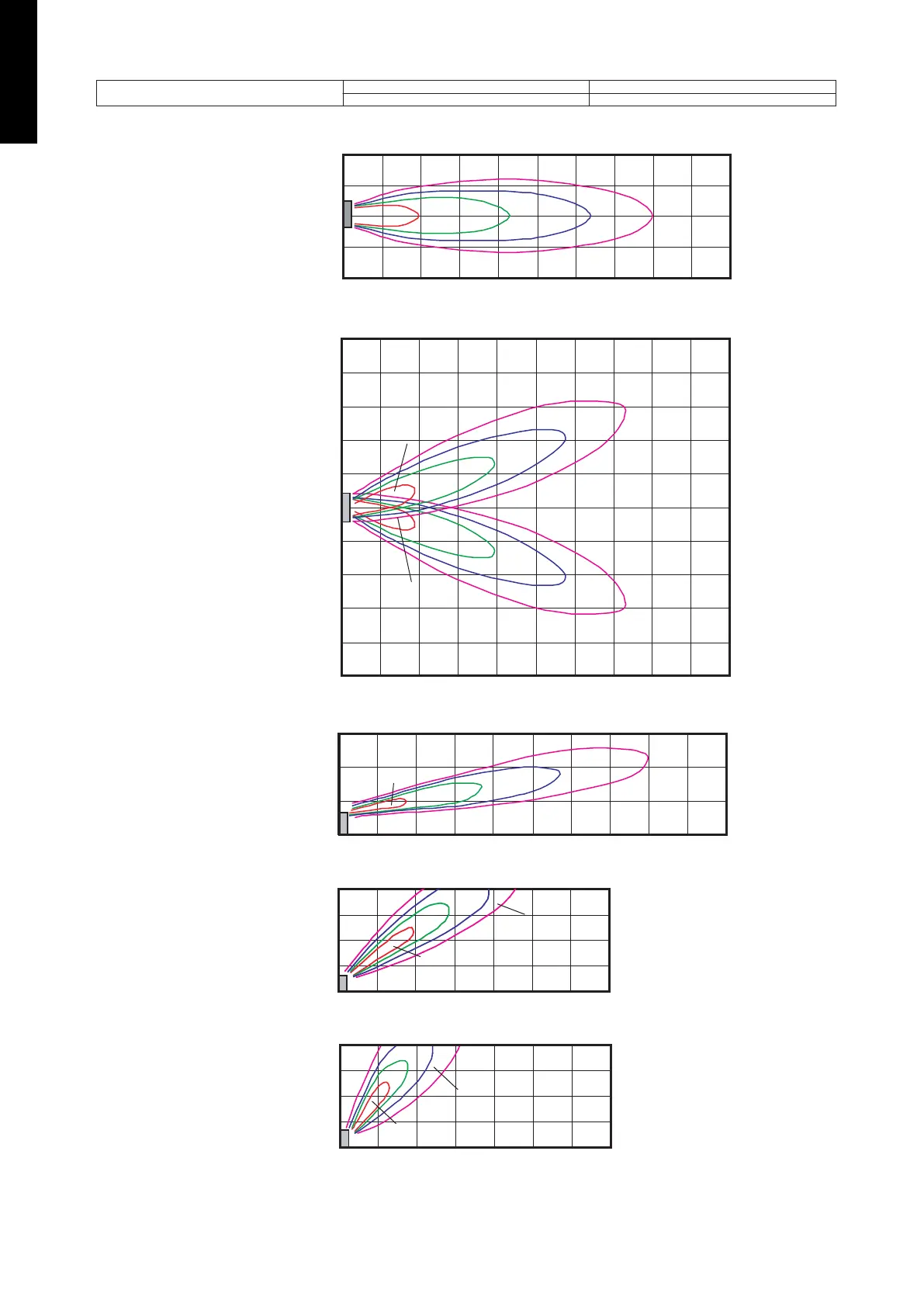

Model: ABYG18LVTB (Floor console)
Measuring conditions
Fan speed Operation mode
HIGH FAN
Top view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Center
0.250.5
1.0
2.0
10
Unit: m/s
(m)
0
1
1
2
2
(m)
0123 4567 89
Top view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Left & Right
0.25
0.25
0.5
0.5
1.0
1.0
2.0
2.0
10
(m)
01 2 34 5 67 89
Unit: m/s(m)
0
1
1
2
2
3
4
5
3
4
5
Side view
Vertical airflow direction louver: Down
Horizontal airflow direction louver: Center
0.25
0.5
1.0
2.0
10
(m)
012
3
456 789
(m)
3
1
2
Unit: m/s
Side view
Vertical airflow direction louver: Center
Horizontal airflow direction louver: Center
Unit: m/s
(m)
01 2
3
4567
(m)
3
4
1
2
0.25
0.5
1.0
2.0
Side view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Center
3
4
1
2
0.25
0.5
1.0
2.0
(m)
0
12
3
456 7
(m) Unit: m/s
