Fujitsu ASYG12KMCDN User Manual

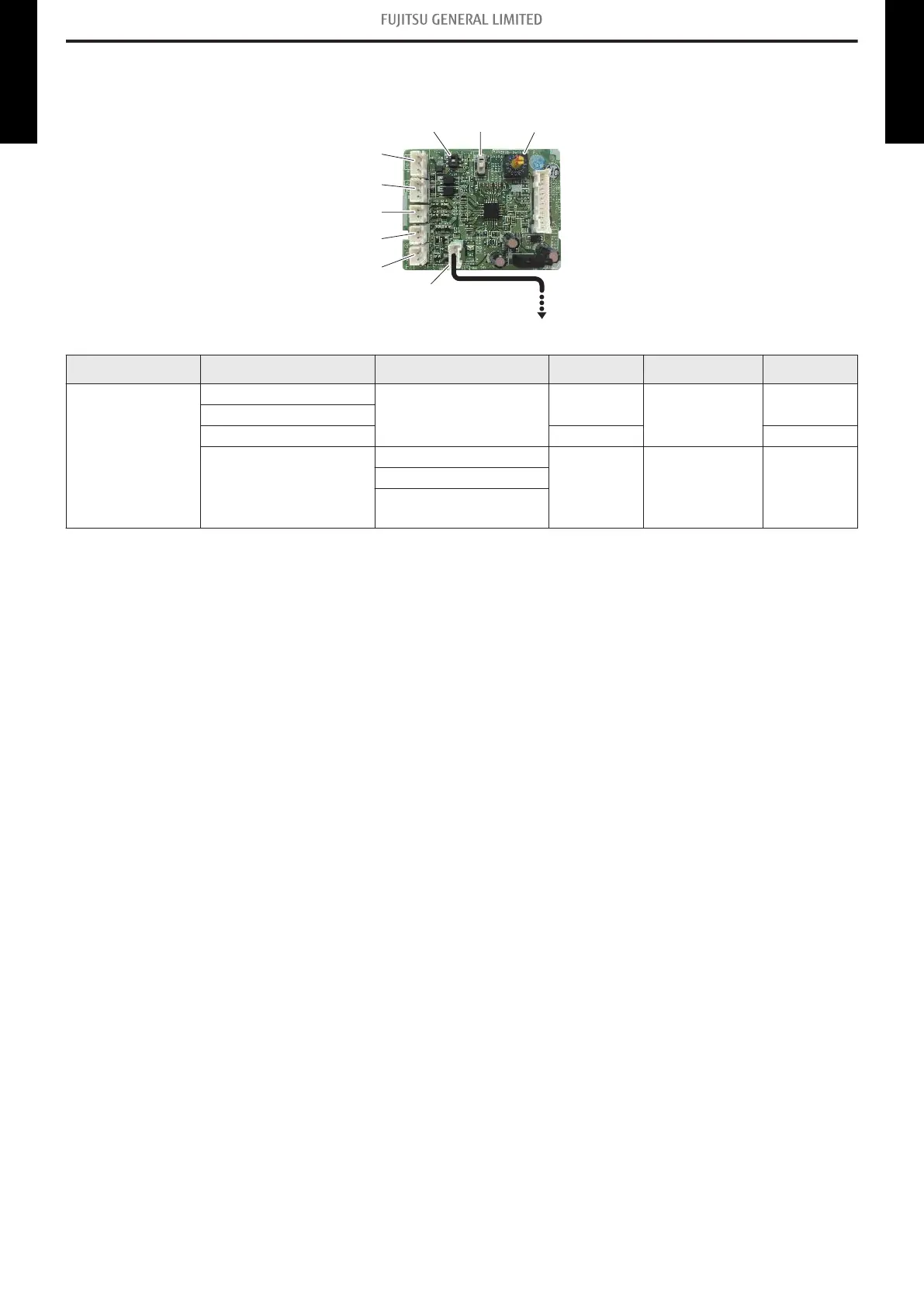

8. External input and output
CN314
CN313
CN312
CN311
CN310
Rotary switchSW302SW301
CN308
External input and output PCB
To CN6 on Indoor unit PCB
PCB External input External output Connector Input select Input signal
External input and
output
(UTY-XCSXZ2)
Operation/Stop
—
CN313/
CN314
Dry contact/
Apply voltage
Edge/Pulse
Forced stop
Forced thermostat off CN313 Edge
—
Operation status
CN310
— —
Error status CN311
Indoor unit fan
operation status
CN312
NOTE: External input and output PCB cannot be used with Wireless LAN adapter simultaneously.
- 17 -
8. External input and output
WALL MOUNTED ASYG09-14KMCDN WALL MOUNTED ASYG09-14KMCDN
