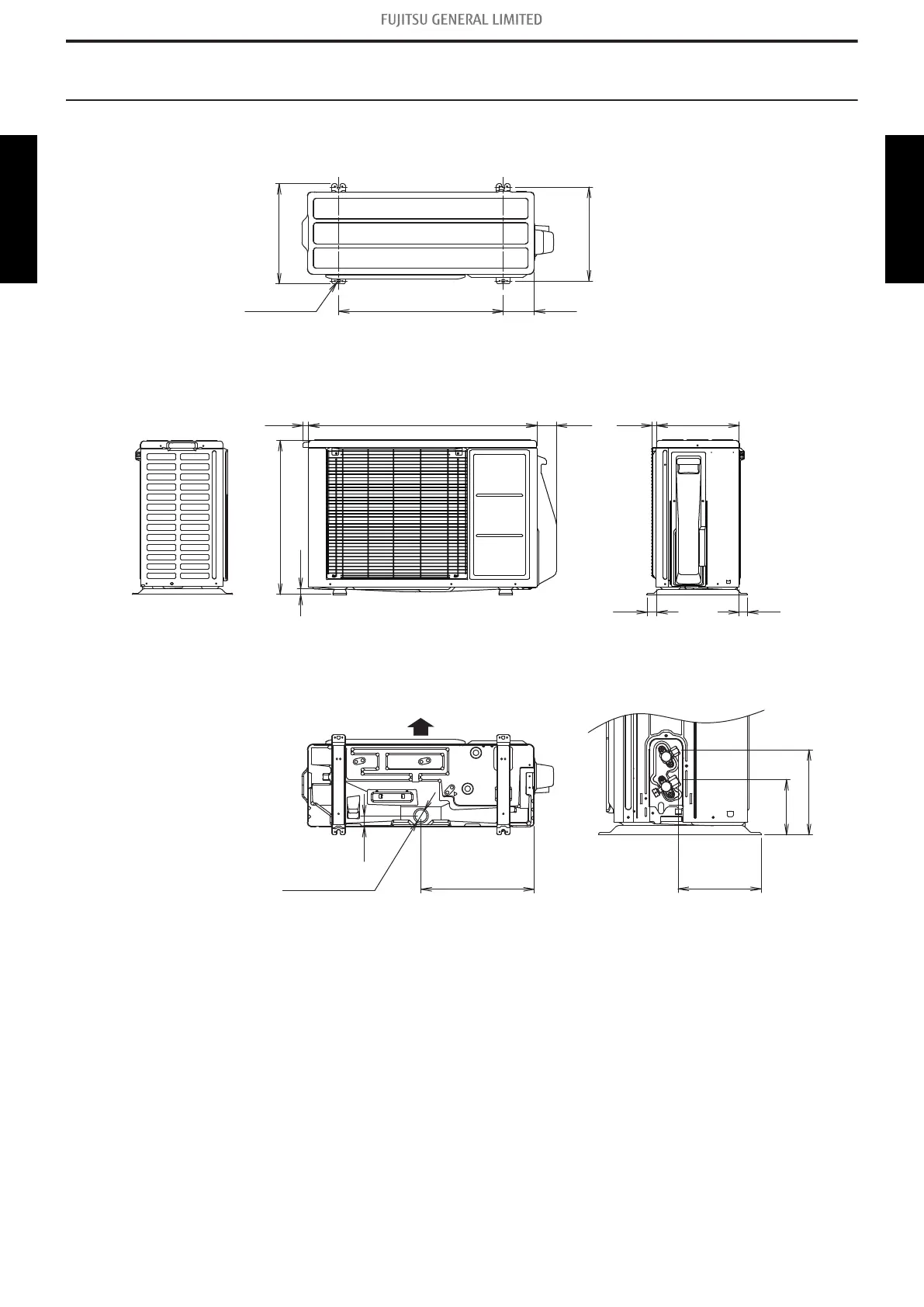

2. Dimensions
2-1. Model: AOYG09KMCDN
Unit: mm
580
109
330 353
Pitch of bolts for installation
Pitch of bolts for installation
Top view
4- M1 0 hole
Side viewSide view
Front view
799 68 29016
33 30
19
542
20
Airflow
Bottom view Side view (Valve part)
37
399
Drain port Ø42
184
120
180
- 43 -
2-1. Model: AOYG09KMCDN 2. Dimensions
OUTDOOR UNIT AOYG09-14KMCDN OUTDOOR UNIT AOYG09-14KMCDN
