8. Function settings
To adjust the functions of this product according to the installation environment, various types of
function settings are available.
NOTE:
Incorrect settings can cause a product malfunction.
8-1. Indoor unit (setting by DIP switch and jumper wire)
By using some components on the PCB, you can change the function settings.
Related components on the PCB and the applicable settings:
Component Setting content
DIP switch
1
Remote controller address setting
2
3
4
Jumper wire
JM1 Drainage function setting
JM2 Auto louver grille setting
JM3 Fan delay setting

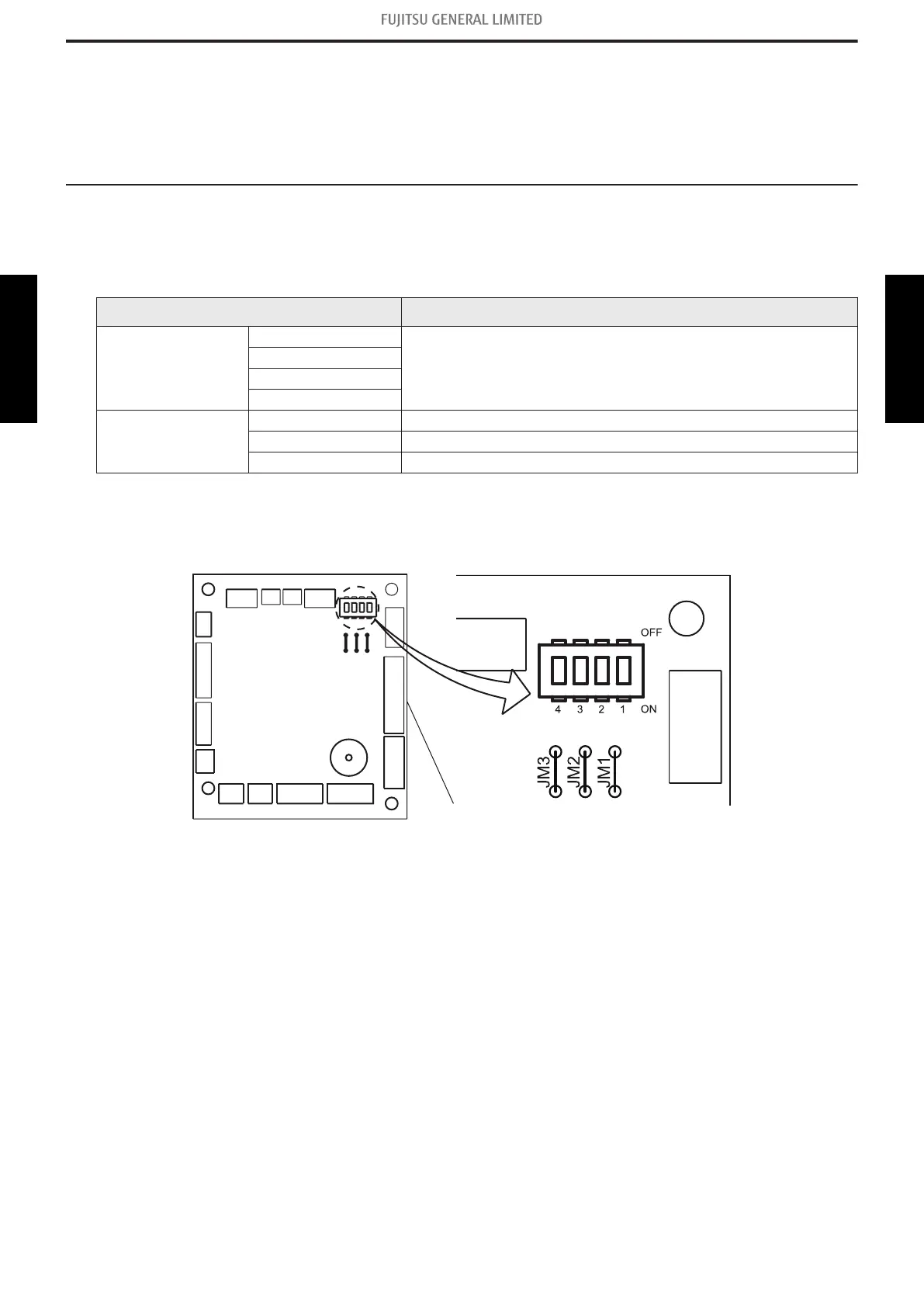

¢ Component location
Components on the indoor unit main PC board used for the function settings are located as
shown in the following figure.
- 261 -
8-1. Indoor unit (setting by DIP switch and jumper wire) 8. Function settings
SYSTEM
DESIGN
SYSTEM
DESIGN
