¢ Model: ARYG45LMLA (Static pressure mode 1)
Static pressure (Pa)
17 26 38 43 60 63 75 90
Fan
speed
HIGH
m3/h — — — — 2,100 2,075 1,970 1,810
l/s — — — — 583 576 547 503
CFM — — — — 1,236 1,221 1,159 1,065
MED
m3/h — — — 1,750 1,555 1,520 — —
l/s — — — 486 432 422 — —
CFM — — — 1,030 915 895 — —
LOW
m3/h — 1,350 1,190 — — — — —
l/s — 375 331 — — — — —
CFM — 795 700 — — — — —
QUIET
m3/h 1,070 970 — — — — — —
l/s 297 269 — — — — — —
CFM 630 571 — — — — — —
Airflow (m
3
/h)
0
60
40
20
Static pressure (Pa)
900 1,100 1,500 1,700 1,900 2,100 2,300

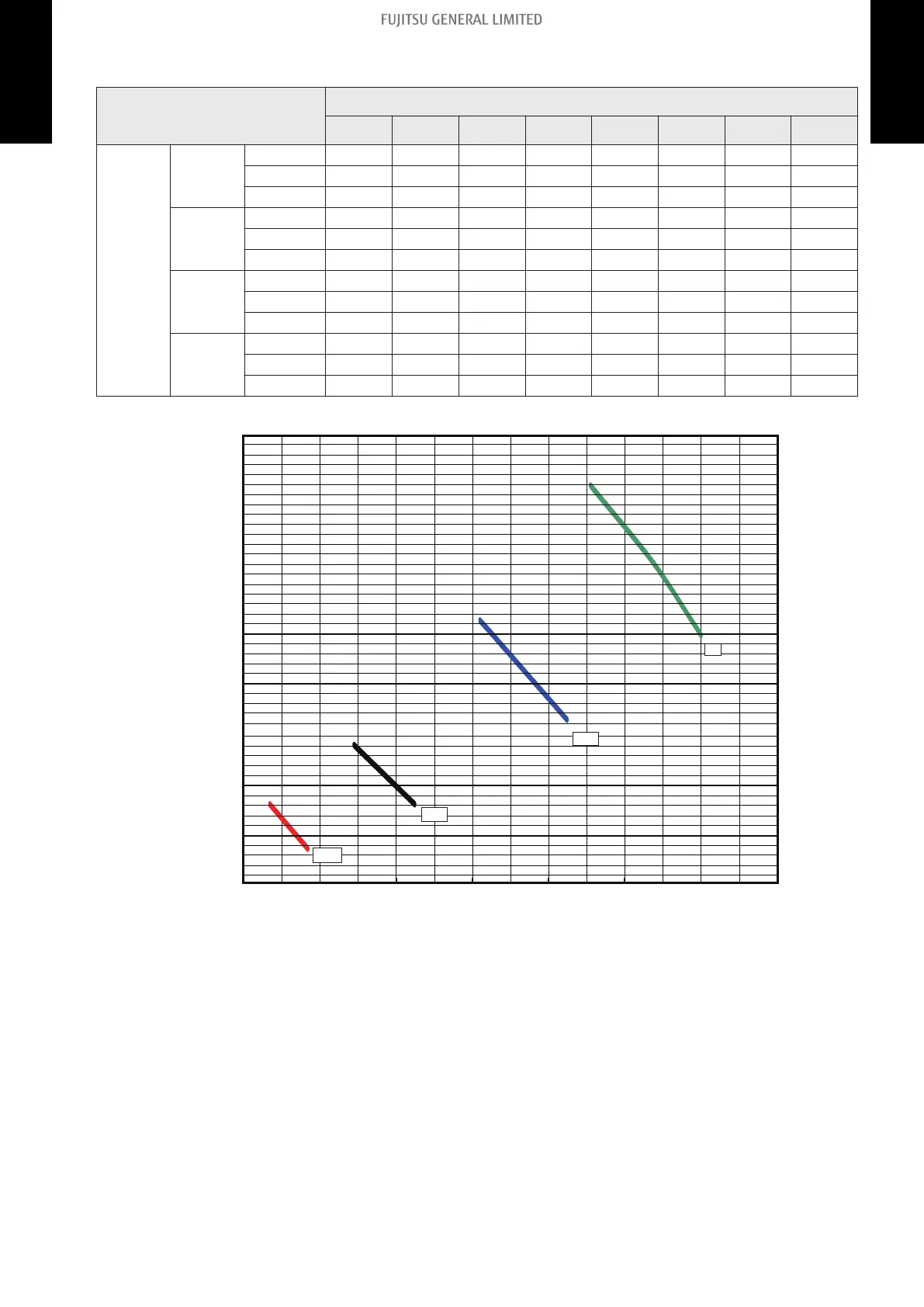

Q-h Characteristic curve
1,300
50
30
10
Hi
Med
Low
Quiet
90
70
80
- 89 -
6-2. Duct type 6. Fan performance
