Fujitsu Ceiling Type Design & Technical Manual

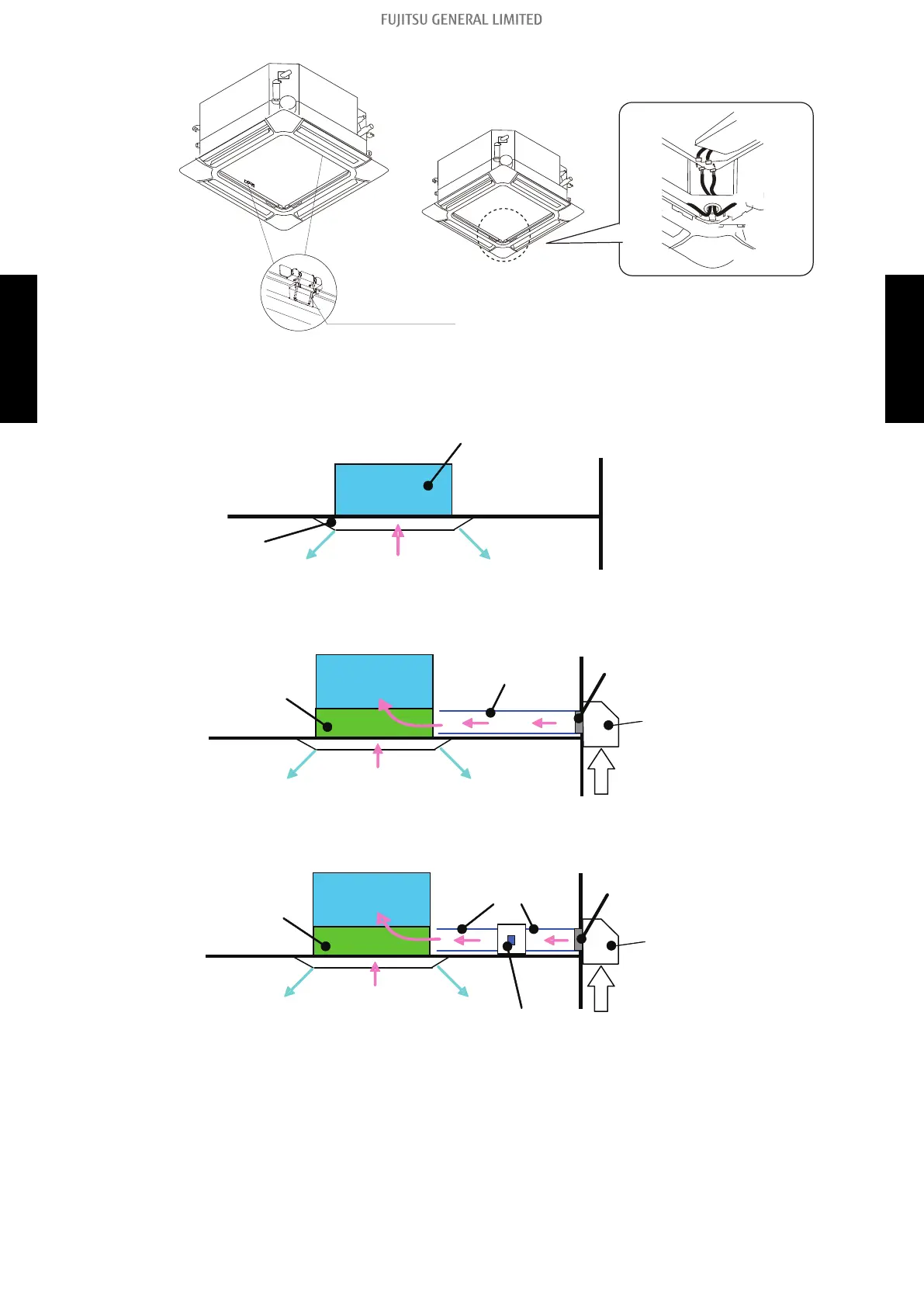

3. Install cassette grille panel according to the installation instruction sheet provided.
Metal fittings
¢
Installation example
• Standard
Indoor unit
Under the roof
Room
Outside
Outler airRoom airOutler air
Panel
• Case 1: Intake by fan of indoor unit
Fresh air
intake kit
Outler air
Room air Outler air
Connecting duct
(locally purchased)
Air filter
(locally purchased)
Hood
(locally purchased)
Fresh air
• Case 2: Intake by duct fan
Fresh air
intake kit
Outler air
Room air Outler air
Duct fan
(locally purchased)
Connecting duct
(locally purchased)
Air filter
(locally purchased)
Hood
(locally purchased)
Fresh air
- 312 -
10-3. Fresh air intake kit for cassette type (UTZ-VXRA) 10. Optional parts installation
SYSTEM DESIGN SYSTEM DESIGN
