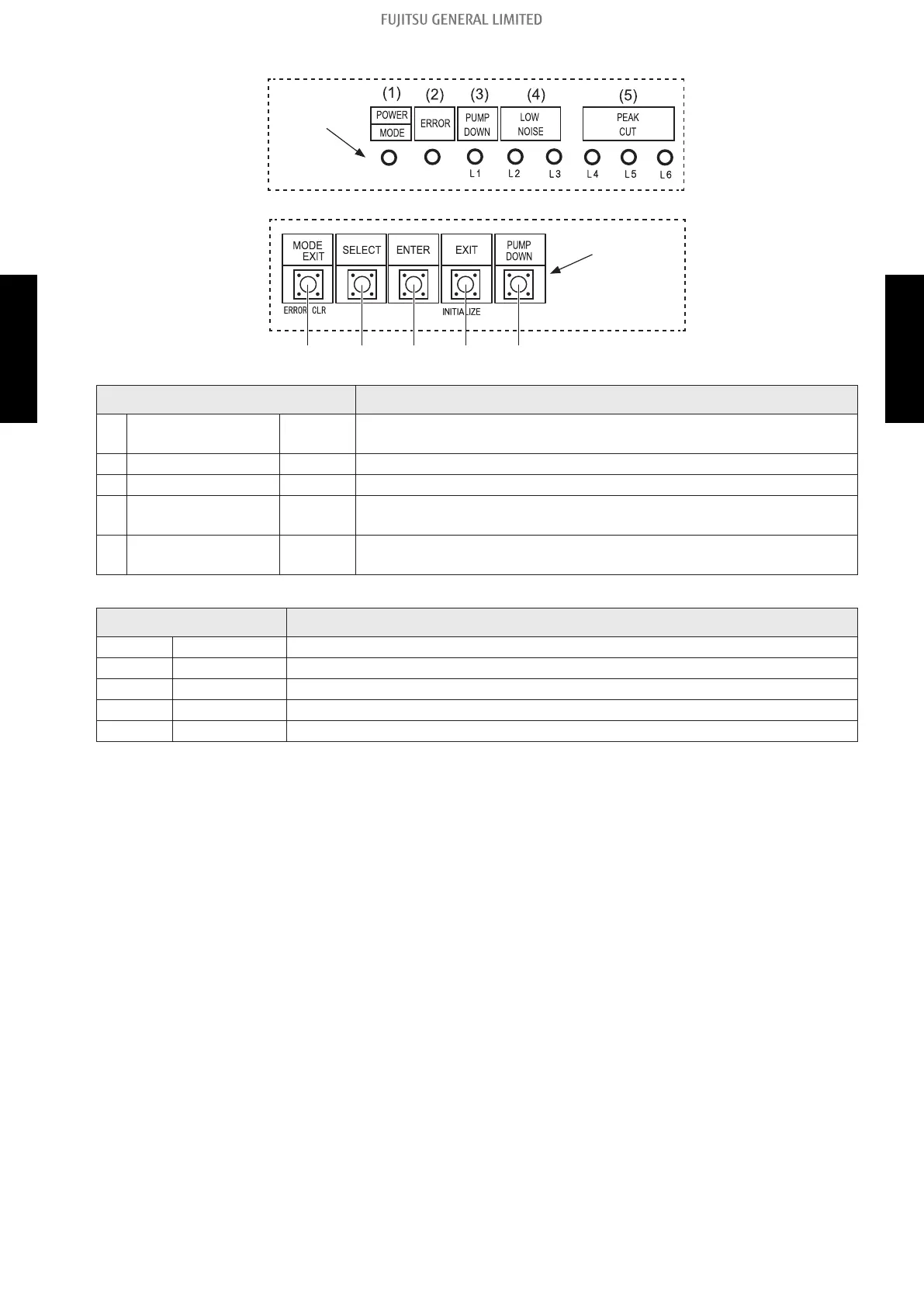

Switch buttons and the functions
/
SW107
SW108 SW109 SW112 SW110
LED display part
Button part
LED lamp Function or operation method
(1) POWER/MODE Green
Lights on while power on.
Local setting in outdoor unit or error code is displayed with blink.
(2) ERROR Red Blinks during error operation.
(3) PUMP DOWN (L1) Orange Lights on during pump down operation.
(4)
LOW NOISE MODE
(L2 and L3)
Orange
Lights on during “Low noise mode” when local setting is activated.
(Lighting pattern of L2 and L3 indicates low noise level.)
(5)
PEAK CUT MODE
(L4, L5, and L6)
Orange
Lights on during “Peak cut mode” when local setting is activated.
(Lighting pattern of L4, L5, and L6 indicates peak cut level.)
Switch button Function or operation method
SW107 MODE Switches between “Local setting” and “Error code display”.
SW108 SELECT Switches between the individual “Local settings” and the “Error code displays”.
SW109 ENTER Switches between the individual “Local settings” and the “Error code displays”.
SW112 EXIT Returns to “Operation status display”.
SW110 PUMP DOWN Starts the pump down operation.
