a
g
e
2
P
ag
e
T
echNot
es
D323x-S
V0.9
Page
20
of
65
http://www
.fujitsu.com/fts/product
s/computing/pc/accessori
es/mainboards
m
ainboards
3
Interf
aces & Connect
or
s
3.1

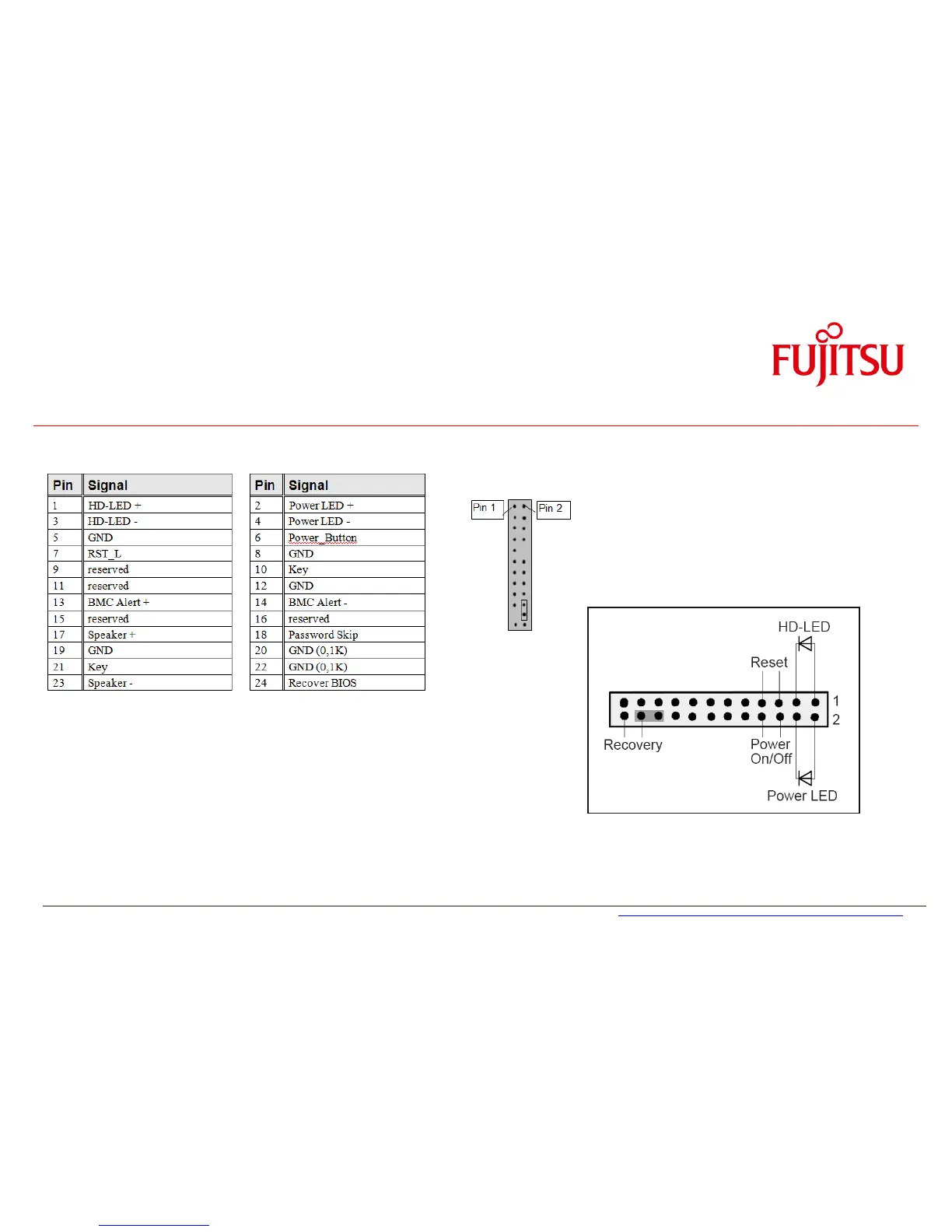

Frontpanel Connect
or
Pow
er LED:
Anode: Pin 2
–
current sour
ce 12mA up to 4V
Cathode: Pin 4 (suitable for various LED colors)
HDD LED:
Anode: Pin 1
–
current sour
ce 6mA up to 4V
Cathode: Pin 3
(suitable for variou
s LED colors
)
Speaker Output:
Differential audio
signal; max. 2W RMS / 4Ohm
19
21
Table of Contents
Default Chapter
2
Table of Contents
2
1 Safety Instructions
5
2 Feature Overview D323X-S
6
Basic Layout D3231-S
10
Basic Layout D3235-S
11
Basic Layout D3236-S
12
Block Diagram "Q87
13
Block Diagram "H81
14
External Connectors D3231-S / D3236-S
15
External Connectors D3235-S
16
Onboard Components D323X-S
17
Summary: Feature Differences D323X-S
18
I/O-Shield
19
3 Interfaces & Connectors
20
Frontpanel Connector
20
Internal Serial (COM) Port Connector
21
External Serial (COM) Port
21
Internal Parallel Port Connector
22
Internal USB2.0 Connector (2 Ports)
22
Internal USB3.0 Connector (2 Ports)
23
External USB3.0 Connector
23
Keyboard Port
24
Mouse Port
24
LAN Connector
25
DVI-I Connector
25
Displayport V1.2 Connector
26
Serial ATA Connectors
26
Msata Connector
27
Fan Connectors
28
Power Supply Fan Connector
28
High Definition Frontpanel Audio Connector (HD Audio)
29
AC97 Frontpanel Audio Connector (Legacy Audio)
29
S/PDIF Connector
30
GPIO (Feature Connector)
31
Power Supply Connector
32
Additional Power Supply Connector
32
Chassis Intrusion
33
4 System Monitoring
34
D3236-S / D3231-S: Temperature Sensors and Fan Connectors
35
D323X-S: Systemguard
36
D323X-S: Systemguard - Details
37
Silentfanconfigmanager - Customize System Monitoring Settings
38
Components for Continous 24/7 Operation @ +60°C
39
Capacitor Endurance Time Comparison
40
Temperature Reference Points D323X-S
41
BMC - BIOS Default Settings
42
ATX Power Supply
43
5 Display Options
44
VGA Output
44
DVI Output
45
HDMI Output
46
Displayport Output
47
Dual Digital Plus VGA Output (3 Displays)
48
Three Digital Outputs (3 Displays)
49
6 Operating System Support
50
Support for Windows 7 / Windows 8
51
7 Mainboard Tools
52
Common Mainboard Tools
52
BIOS Boot Logo Tool
52
Editcmos
52
Oemident
52
Systemguard
53
Industrial Tools
54
Silentfanconfig-Manager
54
Windows System-Monitoring API (BMCAPI)
54
Linux System-Monitoring Driver ("LM-Sensors")
54
8 Known Issues & Important Notes
55
Troubleshooting
55
Driver Support for MS Windows XP / MS Win8
55
Memory Issue
55
Possible Power Supply Issue
55
SATA Interface (Intel Chipset Limitation)
56
Graphics Driver Issue with Future Core-I3 / Pentium-G Processor
56
Msata Support
56
USB3.0 Performance
57
9 Miscellaneous
58
Trusted Platform Module (TPM)
58
System Watchdog (WD)
59
BIOS Update / BIOS Recovery
62
BIOS/CMOS Reset
63
BIOS Integrated HW Diagnostic Tool
64
BIOS Integrated Erase Disk Tool
64
