TechNotes D323x-S V0.9 Page 39 of 65 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Capacitor Endurance Time
Solid Electrolyte:
Fluid Electrolyte:
System Monitoring

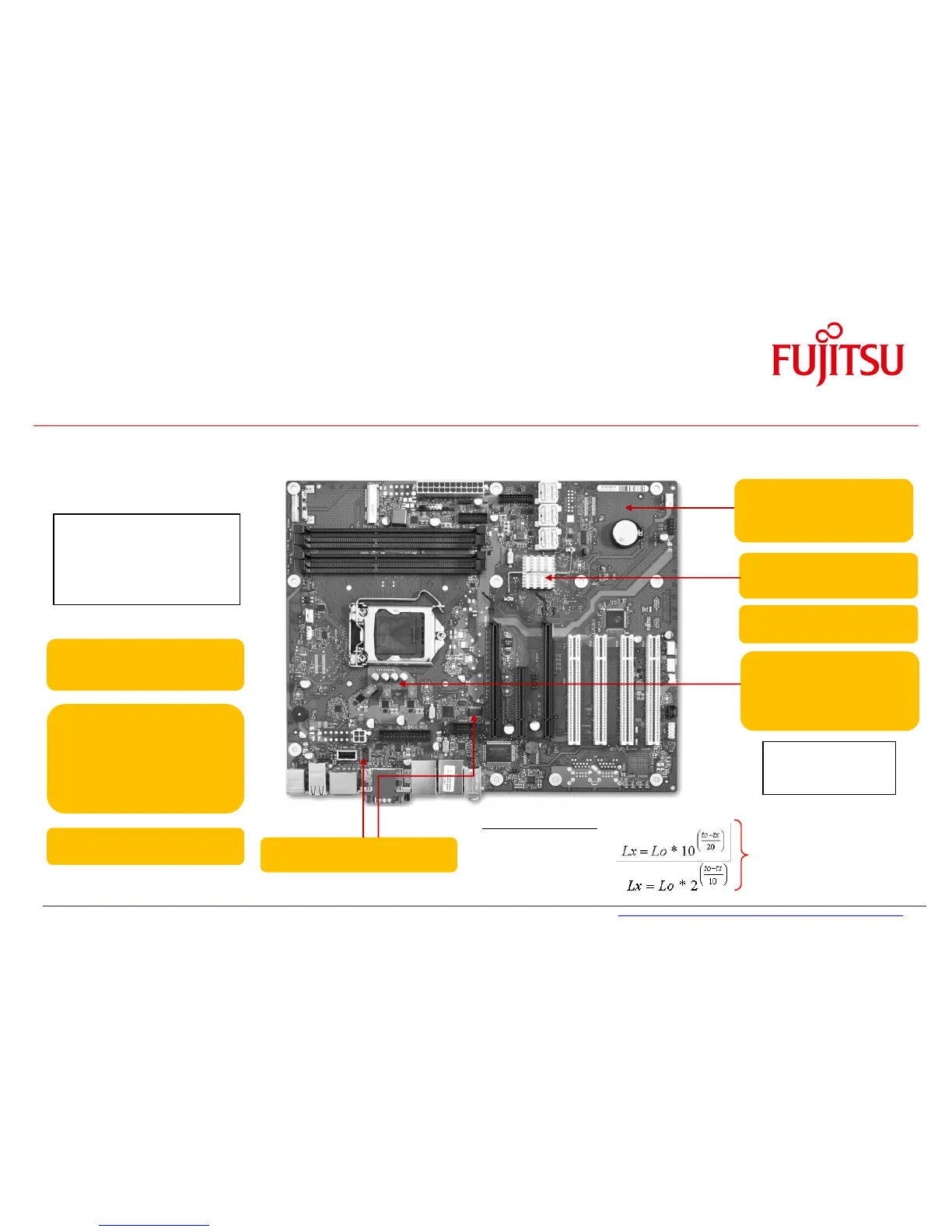

4.5 Components for continous 24/7 operation @ +60°C
Operating Conditions:
Circulating air
(mainboard) max. 60°C
Usage 24h / 7 days
All onboard electrolyte
capacitors: Polymer type only
(= solid electrolyte)
Lx = effective endurance time
Lo = endurance time @ 105°C
(e.g. 2.000hrs)
to = 105°C
tx = capacitor surface temperature
(e.g. 68°C)
High Efficiency Processor
Core Voltage Regulator
for reduced thermal
dissipation loss
Note: Power Consumption
PCH  P max ~ 4.1W
 P idle ~ 0.7W
Extra Heatsink
on PCH (Q87)
All voltage regulators =
switching regulators (high
efficiency & stable operation
within full temperature
range). No linear regulators
(low efficiency)
Quartz with enhanced
operating temperature range
COM Driver with enhanced
operating temperature range
6-layer PCB for improved
signal quality within full
operating temperature range
Quartz with enhanced
operating temperature range
