Power Supply

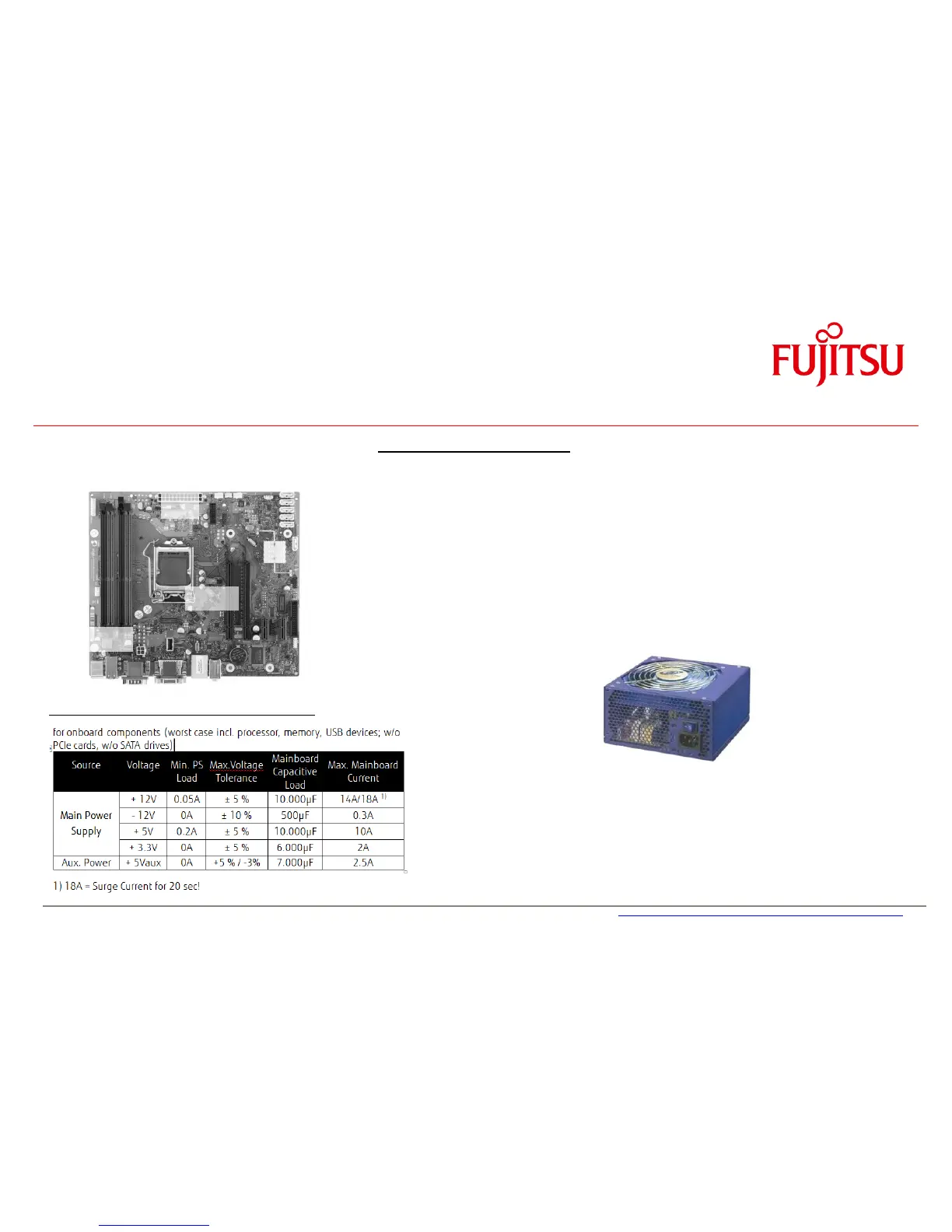

4.9 ATX Power Supply
Connectors for ATX Power Supply
(1) 24 pin connector (ATX layout)
(2) 4 pin connector (+12V, GND)
Note: The +12V supply (up to 12A) for processor and chipset is provided via the 4 pin
connector! Onboard voltage regulators convert the +12V input power to the appropriate
processor / chipset supply voltages.
(3) Processor Core Voltage Regulator: High Efficiency design for enhanced
power saving and less thermal dissipation loss.
Requirements for ATX Power Supply (Update)
The ATX power supply must support the minimum load
conditions as mentioned in the left chart.
(3)
(2)
(1)
