TechNotes D323x-S_D3243-S V1.2 Page 71 of 98 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards
mainboards
Display Options
6.13 LVDS Tool [Updated]
The LVDS tool (DOS-based) allows to flash specific
LVDS settings to the system BIOS of D3243-S.
The LVDS tool needs a panel-specific
EDID configuration file based on the spec data
of the LVDS panel.
Note: Sample configuration EDID files
are available in the LVDS Tool kit.
For adjusting EDID files the “Phoenix EDID tool”
Is required (see link below).

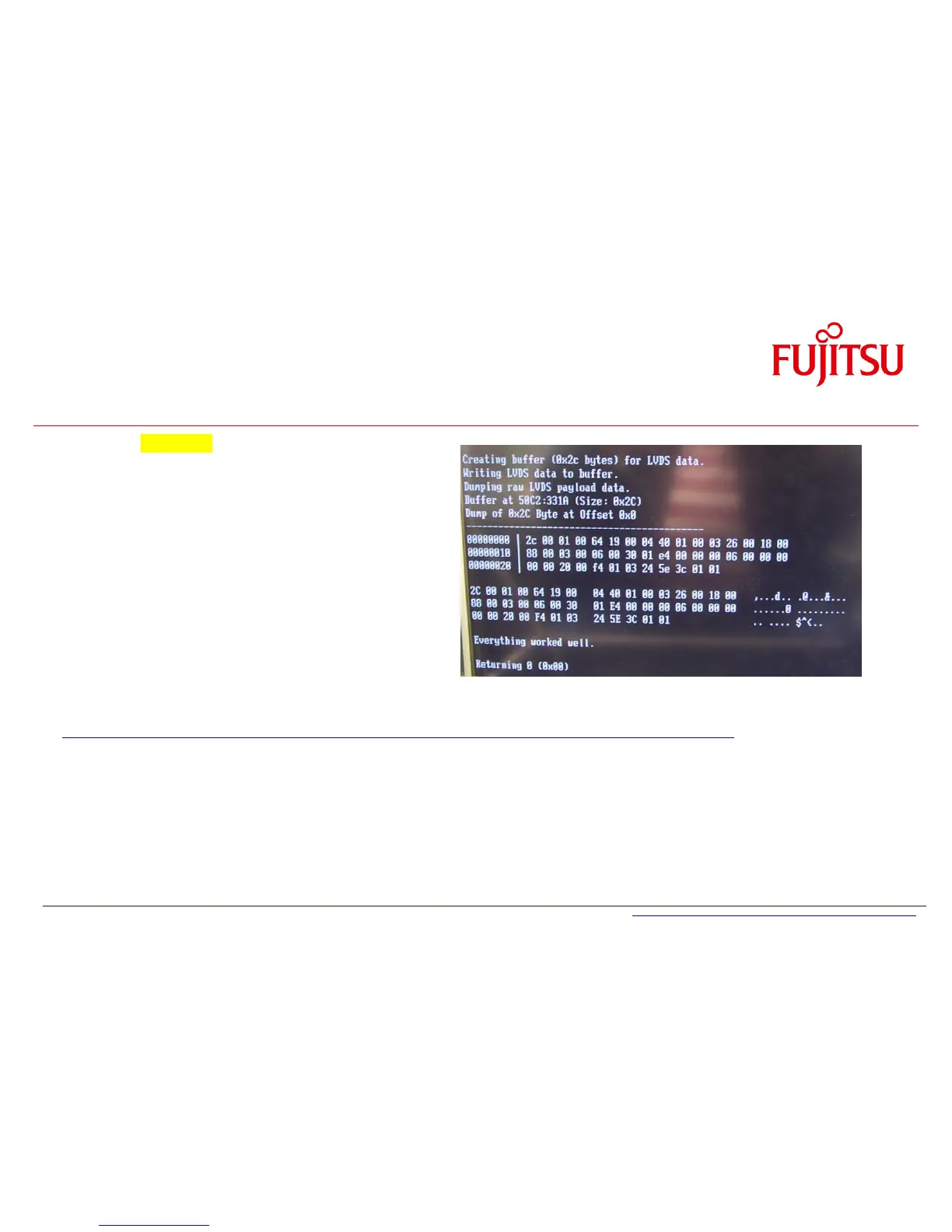

(Sample screen message after running LVDS tool)
Download-Link for LVDS Tool:
ftp://ftp.ts.fujitsu.com/pub/Mainboard-OEM-Sales/Products/Mainboards/Industrial&ExtendedLifetime/D3243-S/IndustrialTools_D3243/LVDS-Tool/
 BIOS ≥ R1.20.0.SR2 and LVDS tool ≥ V2.2.1 must be used to implement customized LVDS settings
Note:
The onboard LVDS converter switches automatically between single channel and dual channel mode.
The reference resolution is 1366 x 800 pixels. If H > 1366 or V > 800, the scaler switches to dual channel mode.
Otherwise, LVDS will operate in single channel mode.
The scaler supports clock rates up to 105Mhz; LVDS displays with clock rates > 105Mhz are not supported
