Assembly Instructions D3313-S

__________________________________________________________________________________________________________________________________________________________

Page 13 of 15 www.fujitsu.com

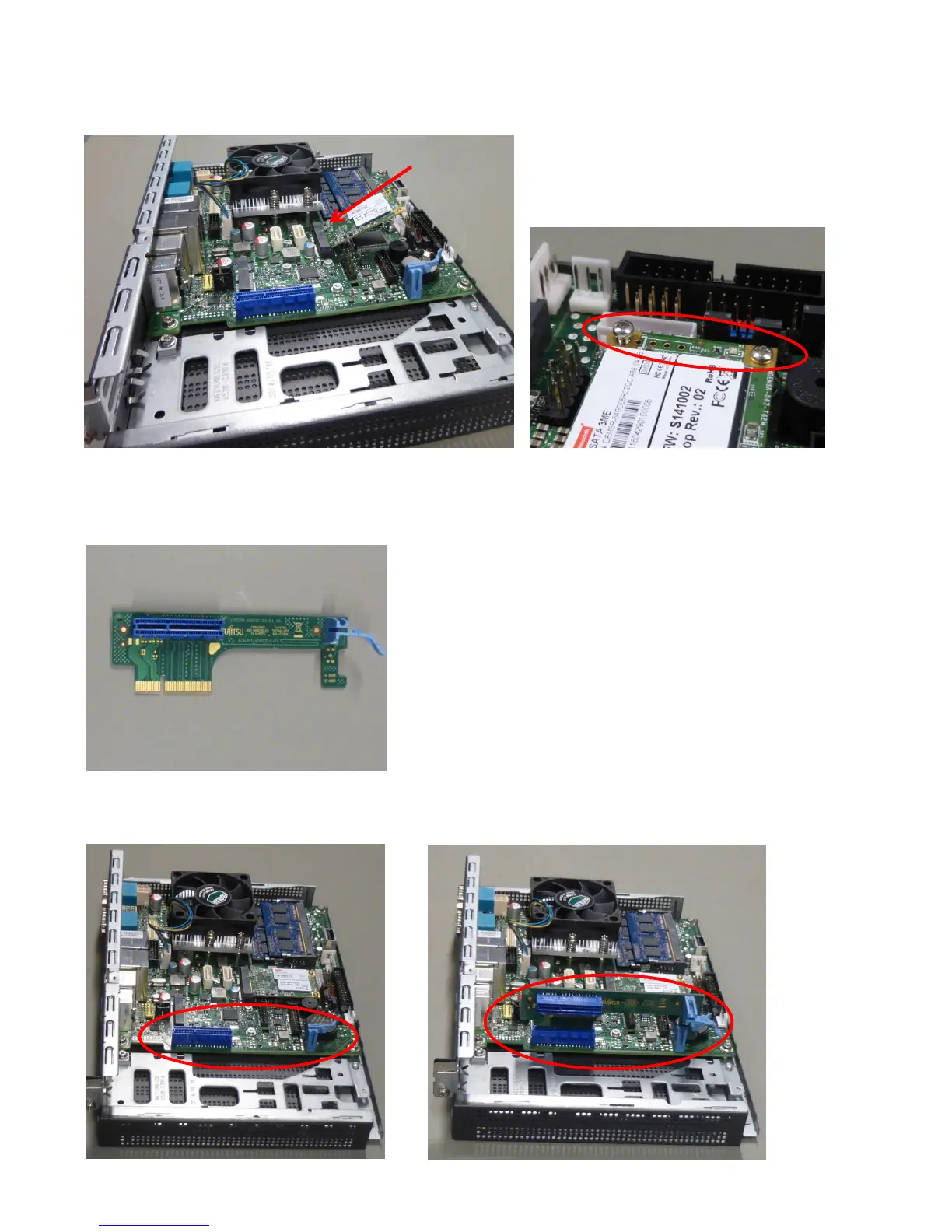

Put in the mSata tilted slightly upwards. Then

push it down with your fingers and screw on the

mSata as shown in the picture.

Step 10 Insert Passive Riser Card

Insert the passive riser card by putting it into the holder.

Table of Contents1
Step 1 Prepare the Chassis2
Step 2 Mount the Cooler4
Step 3 Insert RAM5
Step 4 Put Board in Chassis5
Step 5 Wire HDD7
Step 6 Mount HDD8
Step 7 Add Cross Bar10
Step 8 Close Chassis11
Optional: Application of a Passive Riser Card + Graphic Card AMD W210012
Step 9 Mount Msata12
Step 10 Insert Passive Riser Card13
Step 11 Add Graphic Card AMD W210014
