Assembly Instructions D3313-S

__________________________________________________________________________________________________________________________________________________________

Page 6 of 15 www.fujitsu.com

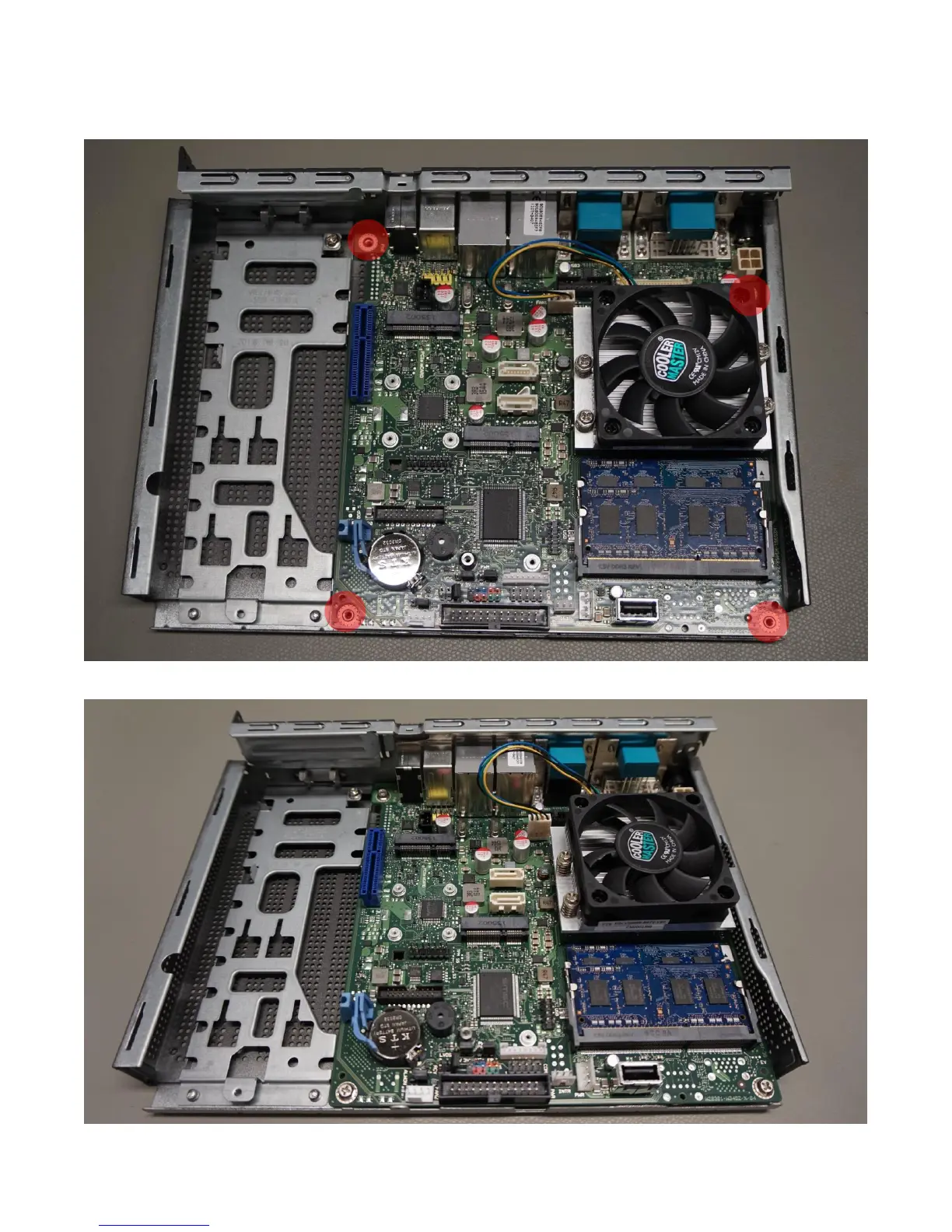

Now push down the board so that the holes on the board fit onto the screw holes on the chassis.

Now screw in the board in all four holes. The board should now look like this:
