Fujitsu D3313-S

To Next Page

To Previous Page

Assembly Instructions D3313-S

__________________________________________________________________________________________________________________________________________________________

Page 9 of 15 www.fujitsu.com

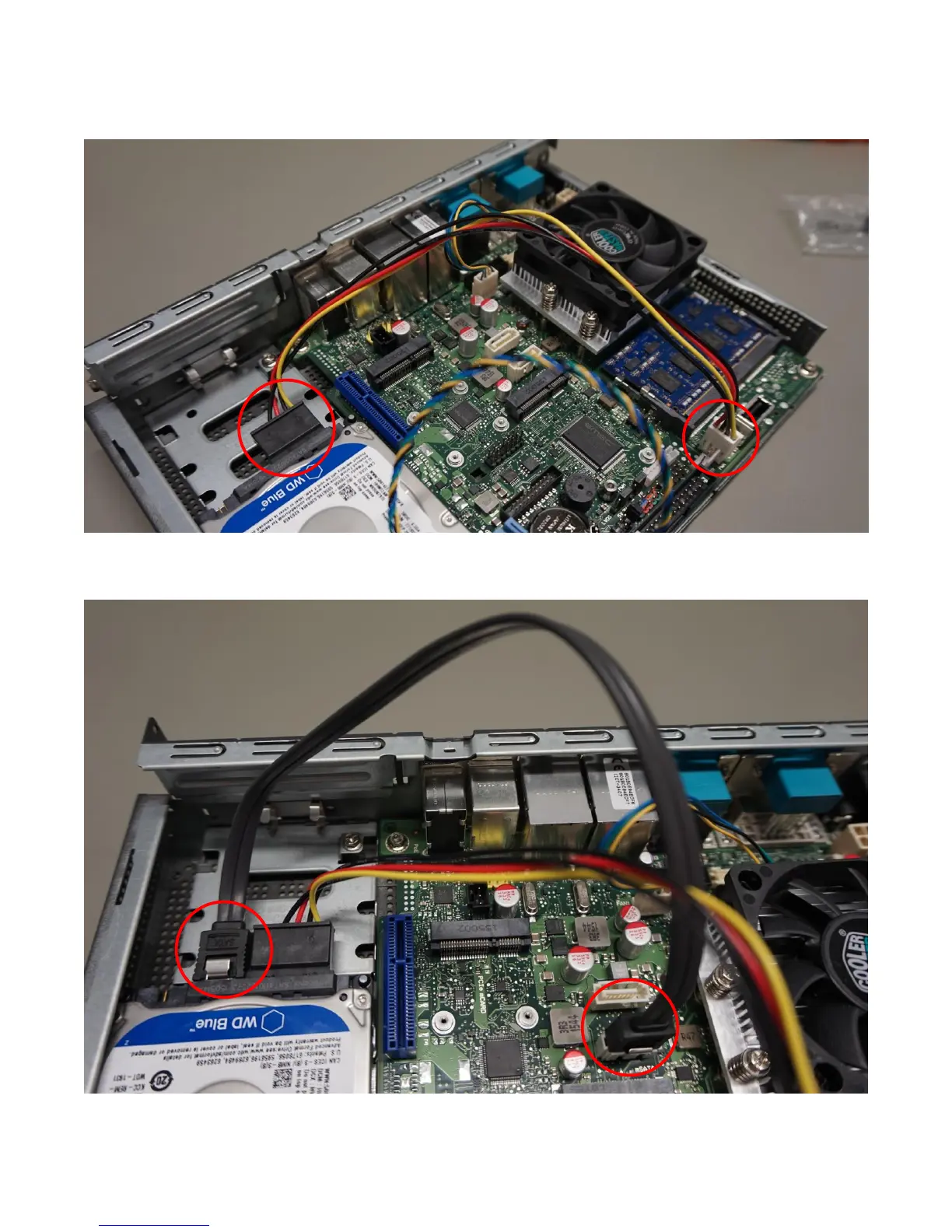

Now plug in the power cable.

Connect the SATA cable.
