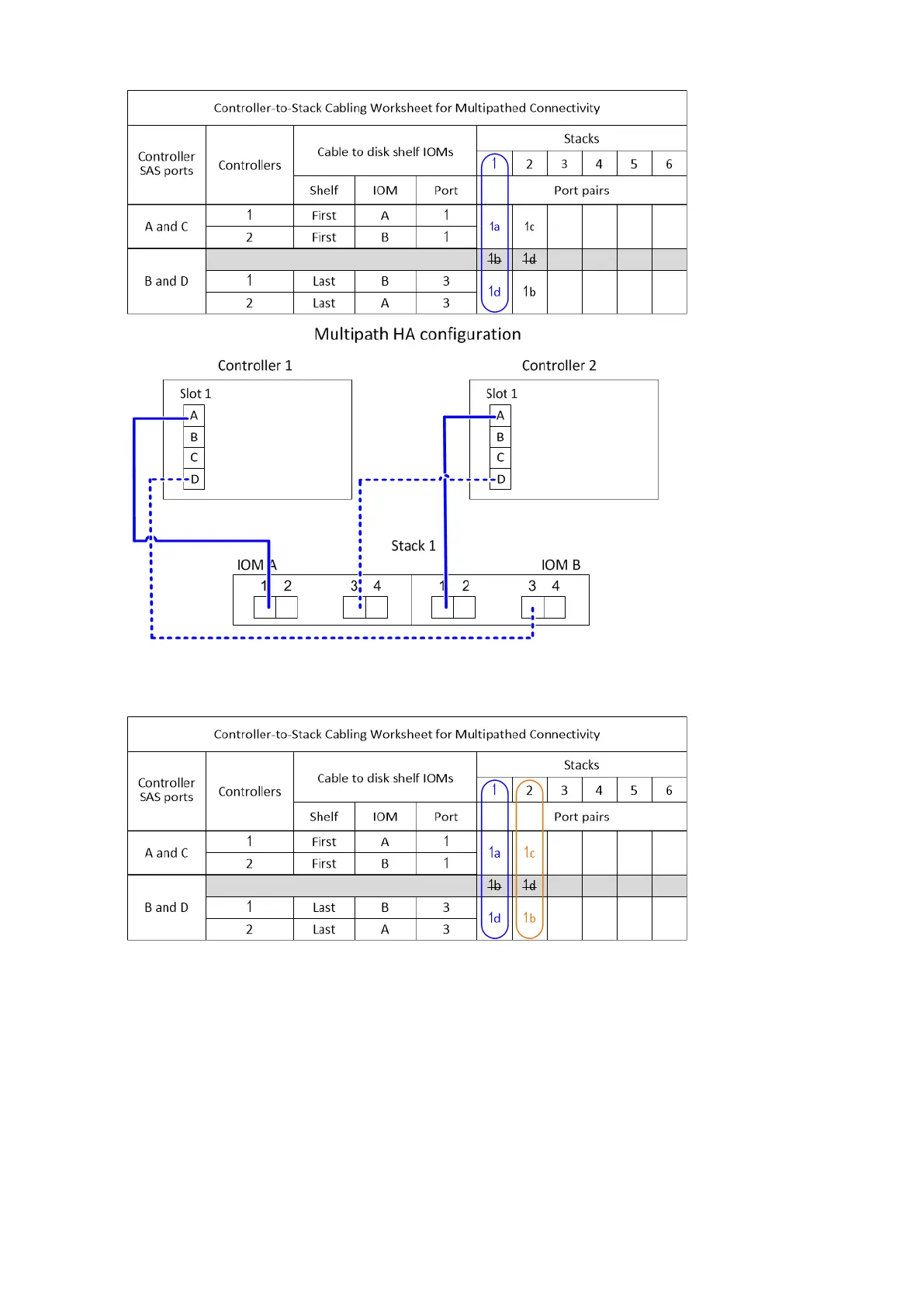

|Controller-to-stack cabling worksheets and cabling examples for common multipath HA configurations|
Multipath HA with one quad-port SAS HBA and two single-shelf stacks
The following worksheet and cabling example uses port pairs 1a/1d and 1c/1b:
21
