Fujitsu ETERNUS AX Series Installation And Cabling Guide

|Controller-to-stack cabling worksheets and cabling examples for common multipath HA configurations|
Controller-to-stack cabling worksheets and cabling examples for multipath HA
configurations with four onboard SAS ports
You can use the completed controller-to-stack cabling worksheets and cabling examples to cable common
multipath HA configurations that have four onboard SAS ports.
Multipath HA with four onboard SAS ports and one single-shelf stack

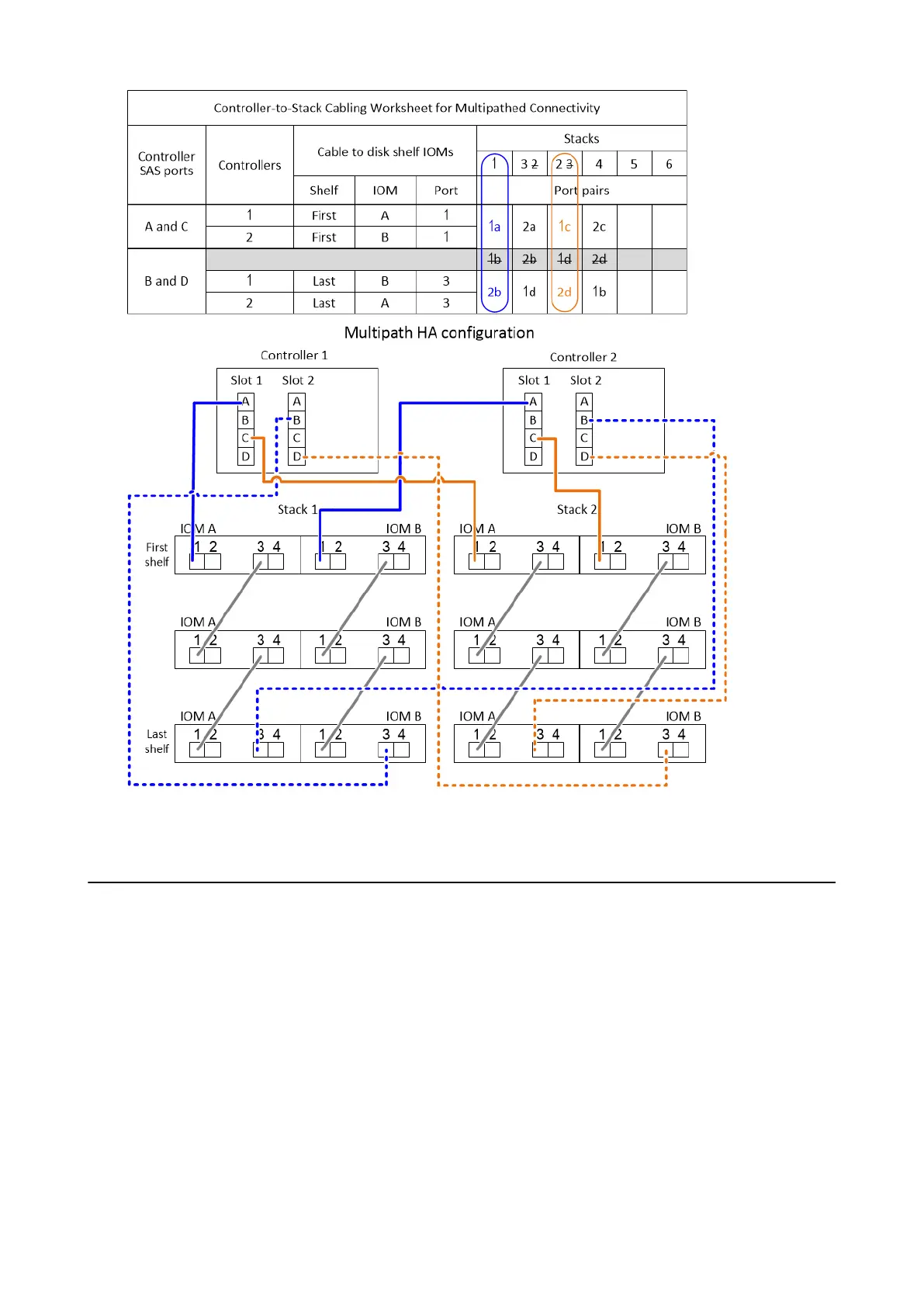

The following worksheet and cabling example uses port pair 0a/0d:
23
