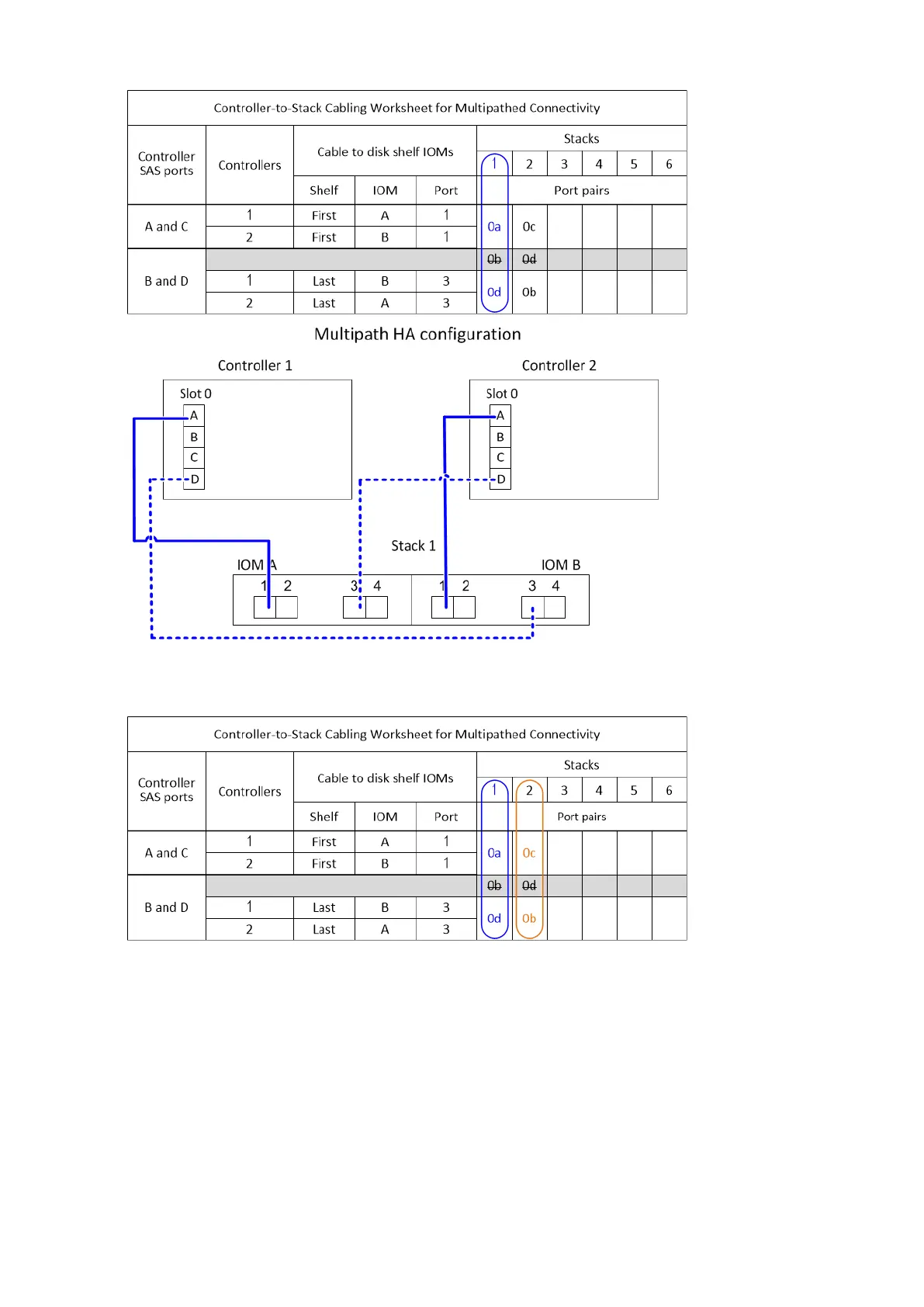

|Controller-to-stack cabling worksheets and cabling examples for common multipath HA configurations|
Multipath HA with four onboard SAS ports and two single-shelf stacks
The following worksheet and cabling example uses port pairs 0a/0d and 0c/0b:
24
