Controller-to-stack cabling worksheets and cabling examples
for common HX2000 configurations
You can use the completed controller-to-stack cabling worksheets and cabling examples to cable common
HX2000 configurations.
• If needed, you can refer to the “SAS cabling rules” section for information about supported configurations,
shelf-to-shelf connectivity, and controller-to-shelf connectivity (including HX2000 port 0b same domain
connectivity).

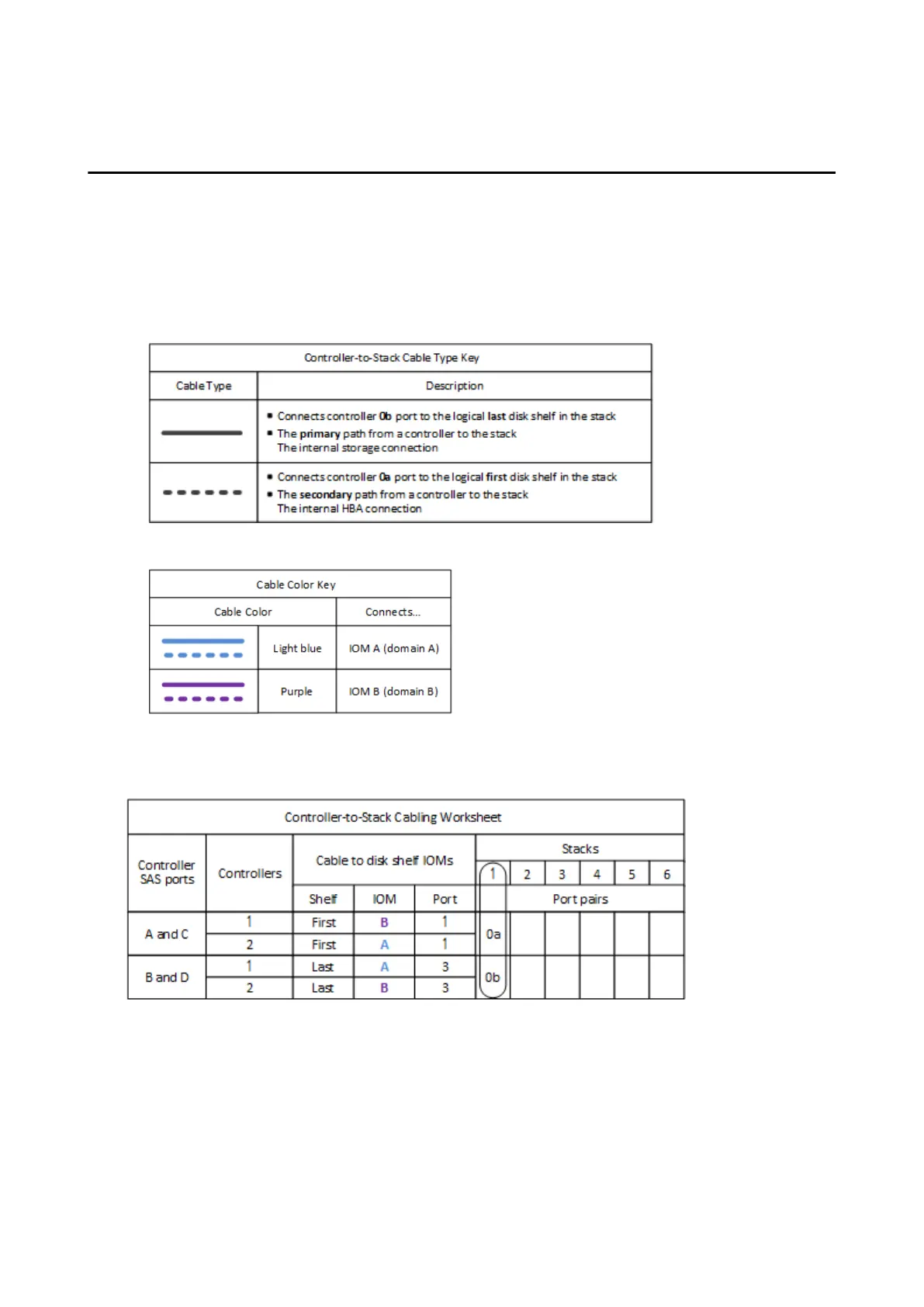

• Cabling examples show controller-to-stack cables as solid or dashed to distinguish controller 0b port
connections from controller 0a port connections.
• Cabling examples show controller-to-stack connections and shelf-to-shelf connections in two different
colors to distinguish connectivity through IOM A (domain A) and IOM B (domain B).
HX2000 multipath HA configuration with one multi-shelf stack
The following worksheet and cabling example uses port pair 0a/0b:
27
