When connecting the scanner with SCSI interface cable.
1. Connect the SCSI interface cable to the
scanner.
2. Connect the other end of the SCSI
interface cable to the computer.
NOTICE
1. Factory default for the SCSI terminator is On. If the scanner is in the middle of the daisy chain or of two
devices, turn the scanner termination Off via the operator panel.
2. The factory default for the SCSI ID is 5. If the ID of the scanner is the same as the other device, change
the ID via the operator panel or change the ID of the other device.
■ Setting the SCSI ID and the SCSI Terminator (when using SCSI interface cable)
The default of the SCSI ID is 5. The SCSI ID is set by using the Setup mode of the operator panel.
1. Turn the power Off by pressing the “0” side of the power switch.
2. Turn the SCSI-ID switch on the rear of the image scanner to set the SCSI-ID.
ID No. Description
0 to 7 Can be set
8, 9 Return to default (Available ID NO. = 5) if set to 8 or 9.

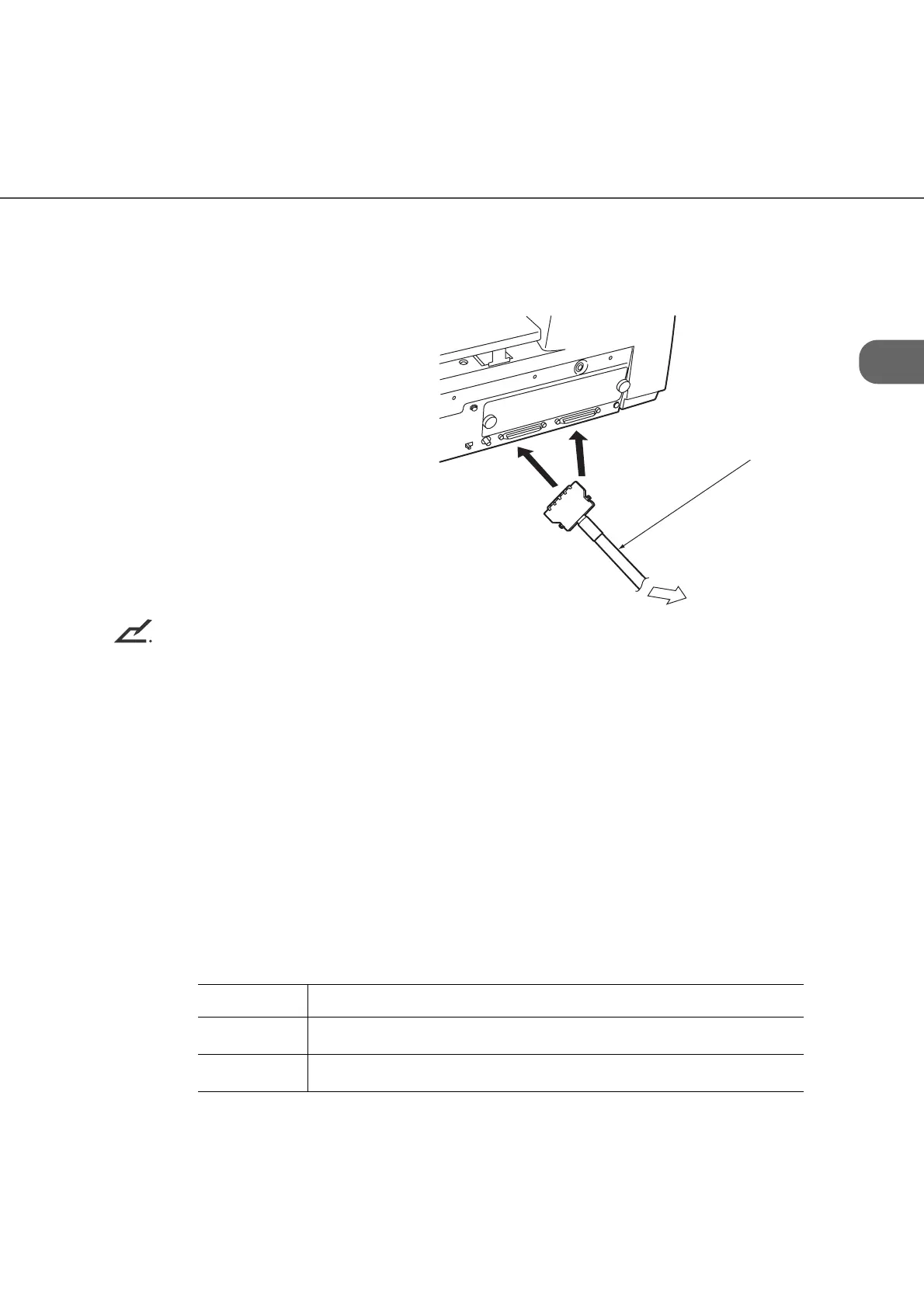

Interface cables
To the host system
Back of the Image scanner
To Next Page
