Fujitsu fi-6670 Getting Started Guide

11
■ Model-Common Parts
Functions of the Operator Panel
The Operator Panel is comprised of a Function Number Display, buttons, and LEDs, which are used to
operate the scanner and to check the scanner status.
For information on how to configure settings for scanning using the [Scan/Stop] or [Send to] button,
refer to the help topics the TWAIN scanner driver contained in the Setup DVD-ROM, or the section
“Using the Scanner Buttons to Start A Scan Quickly” in the Operator’s Guide.
■ ADF type
Two Operator Panels are mounted on the scanner; one each on each side. You can use
whichever is convenient for you.They can be folded back in place when they are not used. The
scanner status can be checked while the Operator Panels are folded back in place.

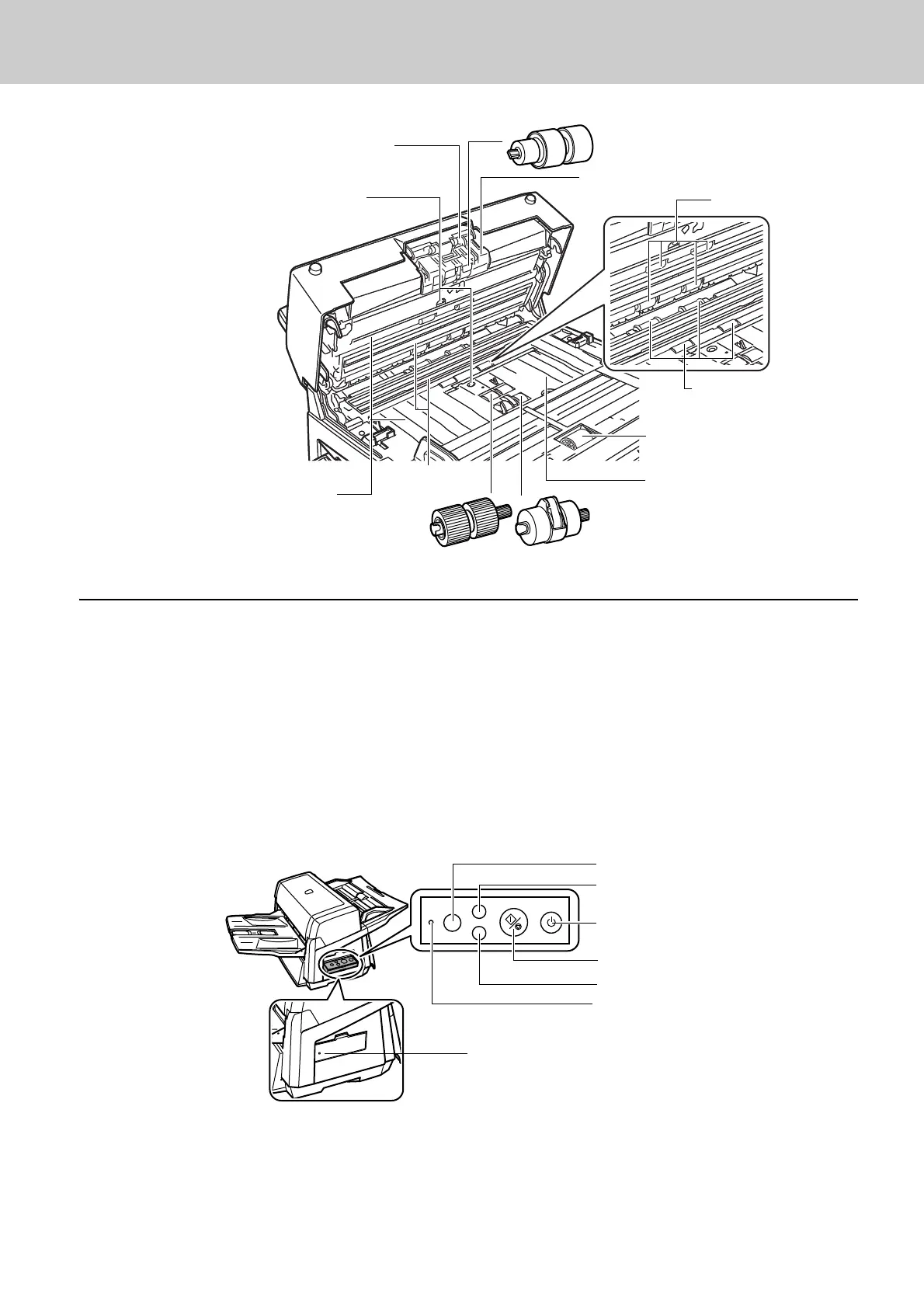

Ultrasonic Sensor (x2)
(for multifile detection)
Sheet Guide (x2)
Glass (x2)
Pick Arm (x1)
Feed Roller (x4)
Plastic Roller (x4)
Chute Roller (x1)
(Usually covered with a hood)
Brake Roller (x1) (consumable)
Pick Roller (1 x 2 types) (consumable)
Brake Roller Holder (x1)
Pick Roller Cover (x1)
Check
Function
Send to
Scan / Stop
Power
Check LED
Function Number Display
[Function] button
[Power] button/Power LED
[Scan/Stop] button
[Send to] button
When the Operator Panel
is folded back in place
LED
Lights in green when the scanner is ON.
Lights in orange when an error occurs.
