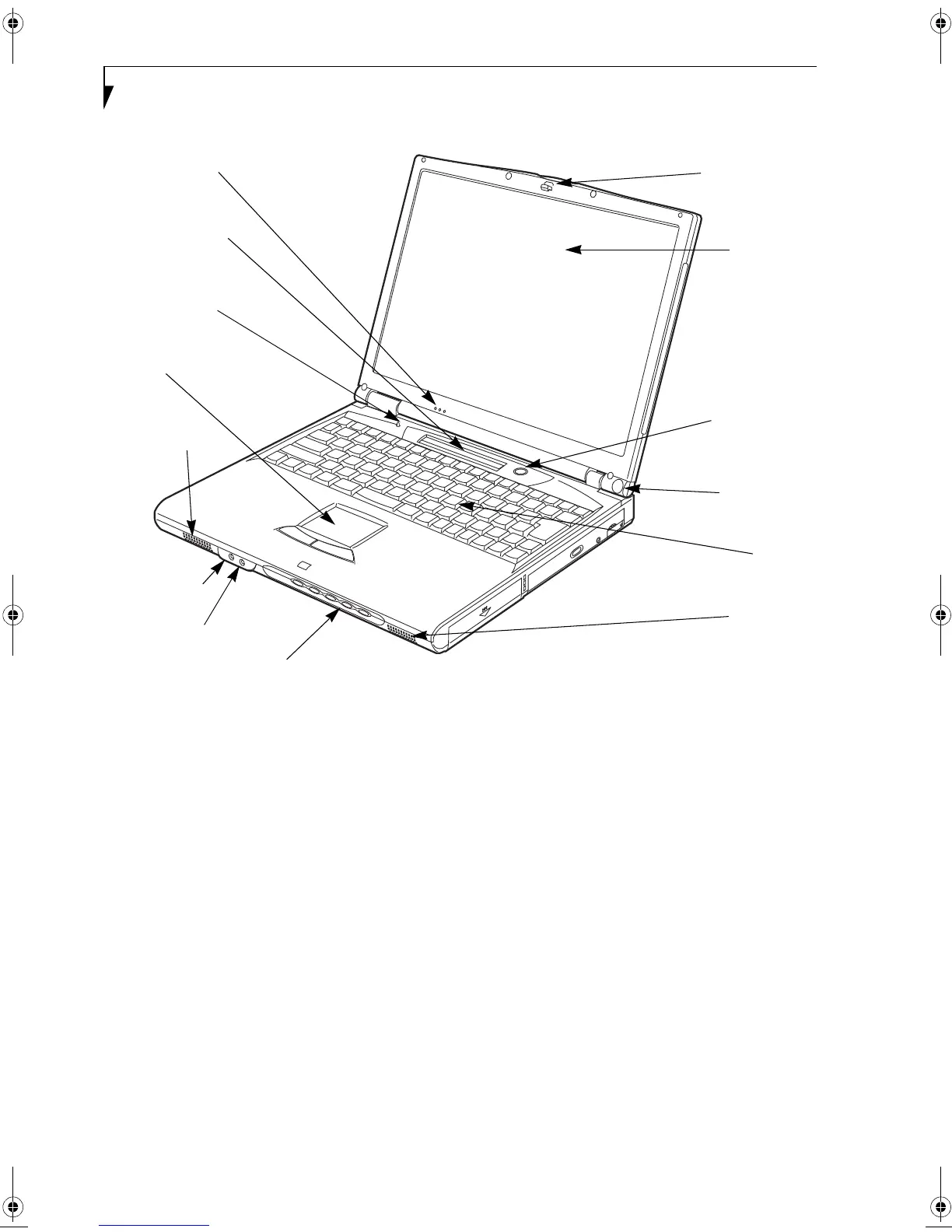

Figure 2-4. LifeBook notebook with display open
Locating the Controls
and Connectors
TOP AND FRONT COMPONENTS
The following is a brief description of your LifeBook
notebook’s top and front components.
Display Panel Latch
The display panel latch locks and releases the display
panel.
Display Panel
The display panel is a color LCD panel with back
lighting for the display of text and graphics.
Status Indicator Panel
The Status Indicator Panel displays symbols that corre-
spond with a specific component of your LifeBook note-
book. (See Status Indicator Panel on page 14 for more
information)
Wireless IR Mouse Receiver
The Wireless IR Mouse Receiver allows the use of an
wireless IR Mouse.
Built-in Microphone
The built-in microphone allows mono audio input.
Power and Suspend/Resume Button
The Power and Suspend/Resume button is always used
to Power On your LifeBook notebook from its Off state.
It is also used as the Suspend/Resume button. This
allows you to suspend notebook activity without
powering off, resume your notebook from suspend
mode, and power on your LifeBook notebook when it
has been shut down. (See Power On on page 35 for more
information) and (See Power and Suspend/Resume Button
on page 38 for more information)
Stereo Speakers
The built-in dual speakers allow for stereo sound.
Display Panel Latch
Display Panel
Built-in Microphone
Status Indicator Panel
Power and
Stereo Speaker
Closed Cover Switch
Keyboard
LifeBook Security/Application Panel
Headphone Jack
Microphone Jack
Touchpad
Stereo Speaker
Wireless IR
Mouse Receiver
Suspend/Resume
Button
