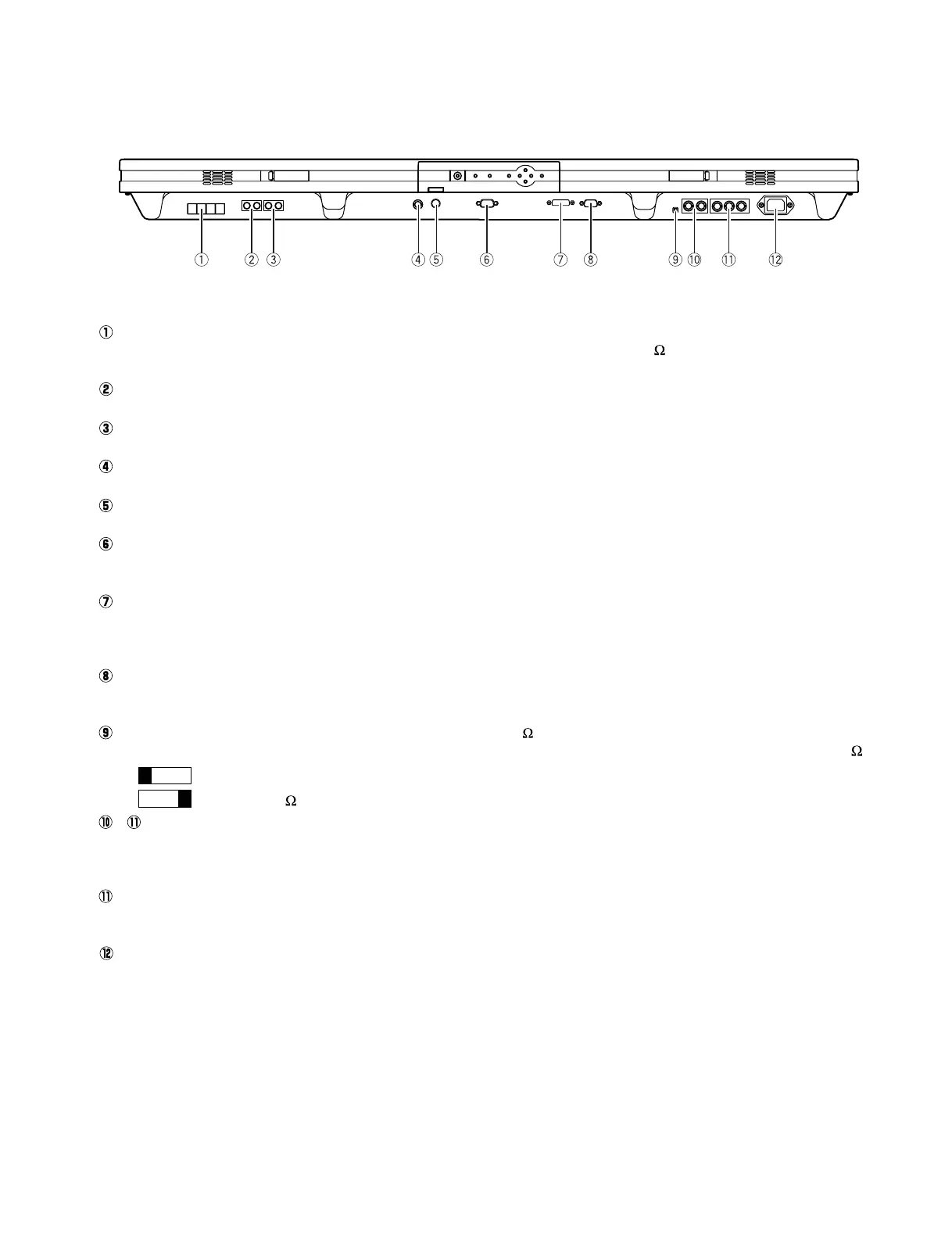

Bottom
External speaker output terminal (EXT SP)
Connect this terminal to the optionally available speaker. (Use a speaker with 4 to 16
.)
∗ See the speaker instruction manual for more information.
Sound 1 input terminal (AUDIO 1 INPUT)
Connect this terminal to the sound output terminal of your VCR, etc.
Sound 2 input terminal (AUDIO 2 INPUT)
Connect this terminal to the sound output terminal of your VCR, etc.
Video input terminal (VIDEO INPUT)
Connect this terminal to the video output terminal of your VCR or video disk player.
S-video input terminal (S-VIDEO INPUT)
Connect this terminal to the S-video output terminal of your VCR or video disk player.
RS-232C terminal (RS-232C)
This terminal is provided for you to control the display from the PC. Connect it to the RS-232C terminal on the PC.
When connecting a cable, attach a ferrite core to the cable.
RGB 1 input terminal (RGB 1 INPUT/DVI-D)
Connect this terminal to the PC's display (digital RGB) output terminal or decoder (digital broadcast tuner, etc.) output
terminal.
∗ The connection cable No.88741-8000 made by molex Inc. is recommended.
RGB 2 input terminal (RGB 2 INPUT/mD-sub)
Connect this terminal to the PC's display (analog RGB) output terminal or decoder (digital broadcast tuner, etc.) output
terminal.
RGB 3 synchronization switch (SYNC SW TTL/ANALOG (75
))
This switch is used to terminate horizontal (H) terminal and vertical (V) terminal, out of RGB3 input terminals, with 75 .
TTL : Used when sending RGB signals from the PC to the RGB terminal
ANALOG (75 ) : Used when sending analog synchronization signals to the RGB terminal
RGB 3 input terminal (RGB 3 INPUT/BNC)
Connect this terminal to the PC's display (analog RGB)output terminal or decoder (digital broadcast tuner,etc.) output
terminal.
∗ When RGB3 input terminal is connected, Comp.video mode is not available.
Component video input terminal (COMPONENT VIDEO INPUT)
Connect this terminal to the component video output (color difference output) terminal of your HDTV unit or DVD player.
∗ When Comp.video input terminal is connected, RGB3 mode is not available.
Power input terminal
Connect this terminal to the power cable supplied with the display.
∗ When connecting a cable, attach a ferrite core to the cable.
+
