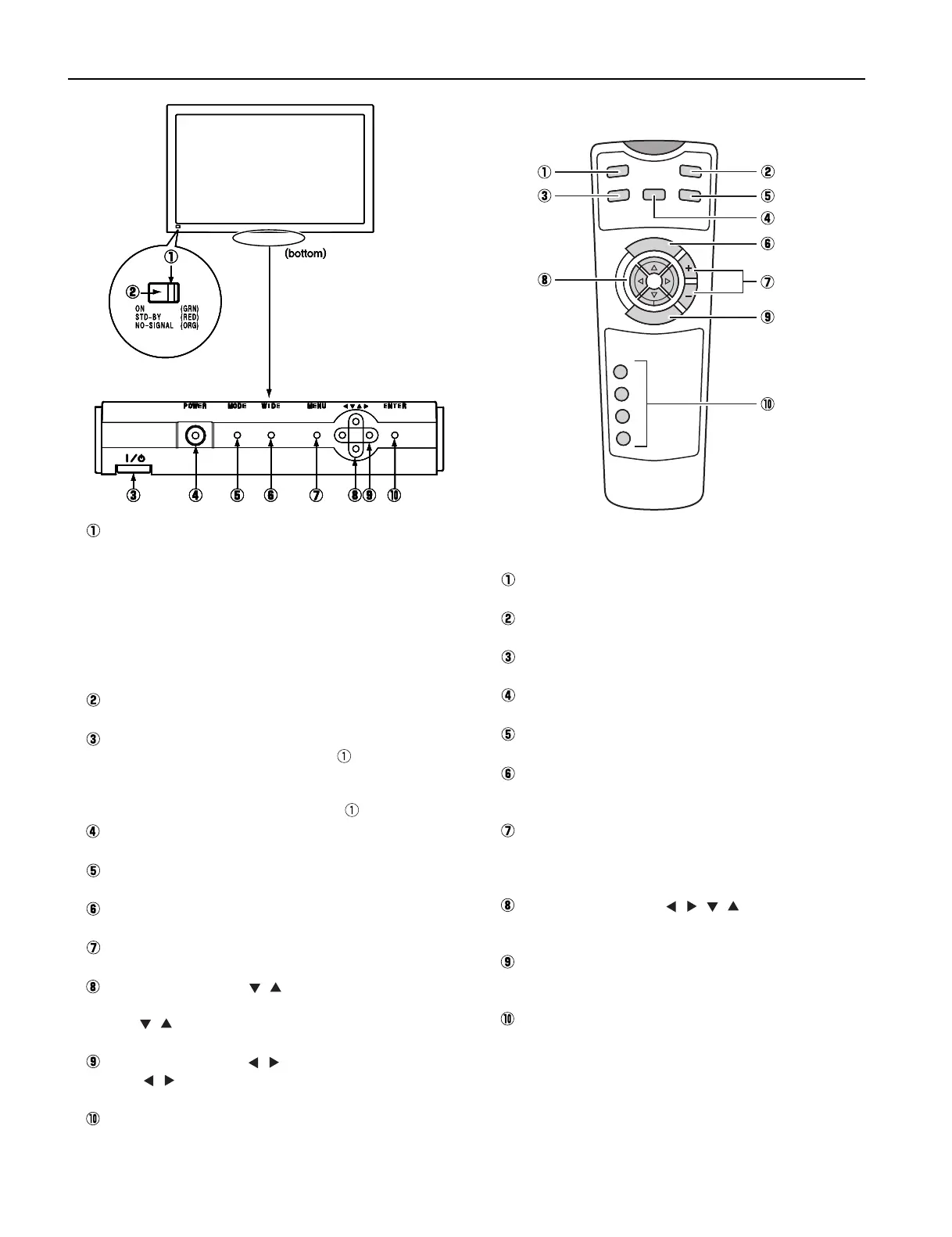

PART NAMES AND FUNCTIONS
Front
Power indicator lamp
This lamp shows the state of the power supply.
Lit (red) : Stand-by
Lit (green) : Power ON
Lit (orange) : Power saving (DPMS: Power
saving function) mode ON
Flashing (red) : Malfunction (Flashes differently
depending on the type of
malfunction.)
Remote control signal receiver
Receives signals from the remote control.
Main power switch
When pressed, power indicator lamp
lights red, and
the power can be turned on or off by the remote
controller. When this switch is pressed again, the
power is cut and power indicator lamp
goes off.
Power button [POWER]
Turns the power ON or OFF.
Input mode selector button [MODE]
Switches between picture input modes.
Wide screen selector button [WIDE]
Switches the screen over to a desired wide screen.
Menu button [MENU]
Displays picture adjustment menus.
Adjustment buttons [ / ]
Adjust the volume.
The [ / ] buttons can also be used to scroll through
the options when a menu is displayed.
Adjustment buttons [ / ]
The [/] buttons can also be used to scroll through
options in a menu, or to change values.
Set button [ENTER]
Press this button to finalize the selection of a desired
option in a menu.
Power ON button [POWER ON]
Turns the power ON.
Power OFF button [POWER OFF]
Turns the power OFF.
RGB input mode selector button [RGB]
Switches between RGB input modes.
Video input mode selector button [VIDEO]
Switches between video input modes.
Wide screen selector button [WIDE]
Switches the screen over to a desired wide screen.
Menu button [MENU]
Use this button to display a desired menu for adjusting
the picture.
Volume adjustment buttons [VOL +/-]
Adjust the volume.
Press the + button to increase the volume.
Press the - button to reduce the volume.
Adjustment buttons [ / / / ]
Use these buttons to scroll through options in a menu
and change values.
Enter button [ENTER]
Press this button to finalize the selection of a desired
menu or option within a menu.
Display selector buttons [SHIFT 1-4]
When you use two or more displays, you can use
these buttons to control up to four displays by
assigning an unique number to each display.
