- 19 -

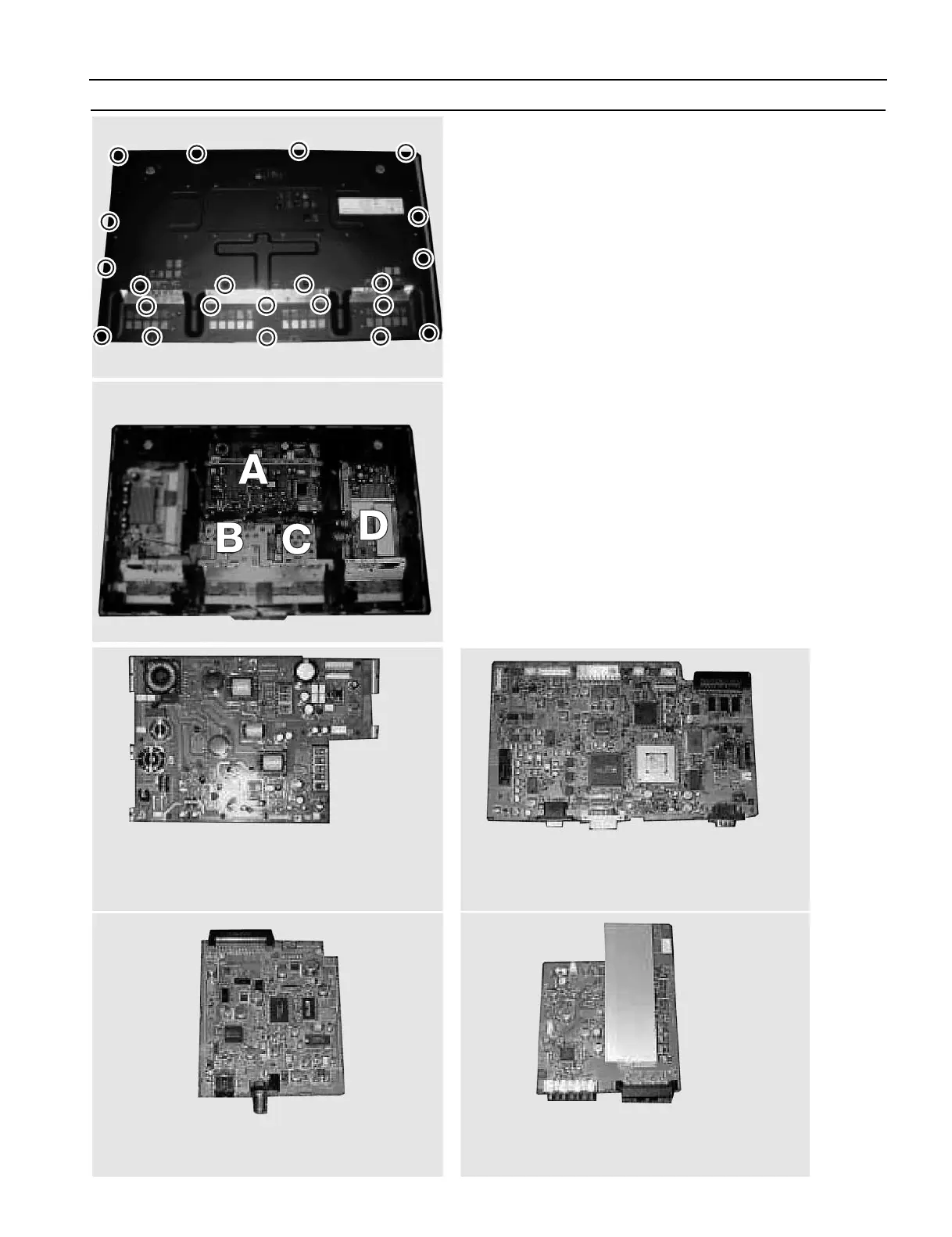

DISASSEMBLY PROCEDURES
A : Main Power PCB
B : Main Digital PCB
C : Video PCB
D : Audio PCB
- 19 -
1.Removing the Rear Case
1)Remove the 22 circled screws and remove the Rear
Case.
āˆ—Layout of Main PCB.
