20 Service Supplement RX100 S4
Replacing the power supply unit Replacement routines

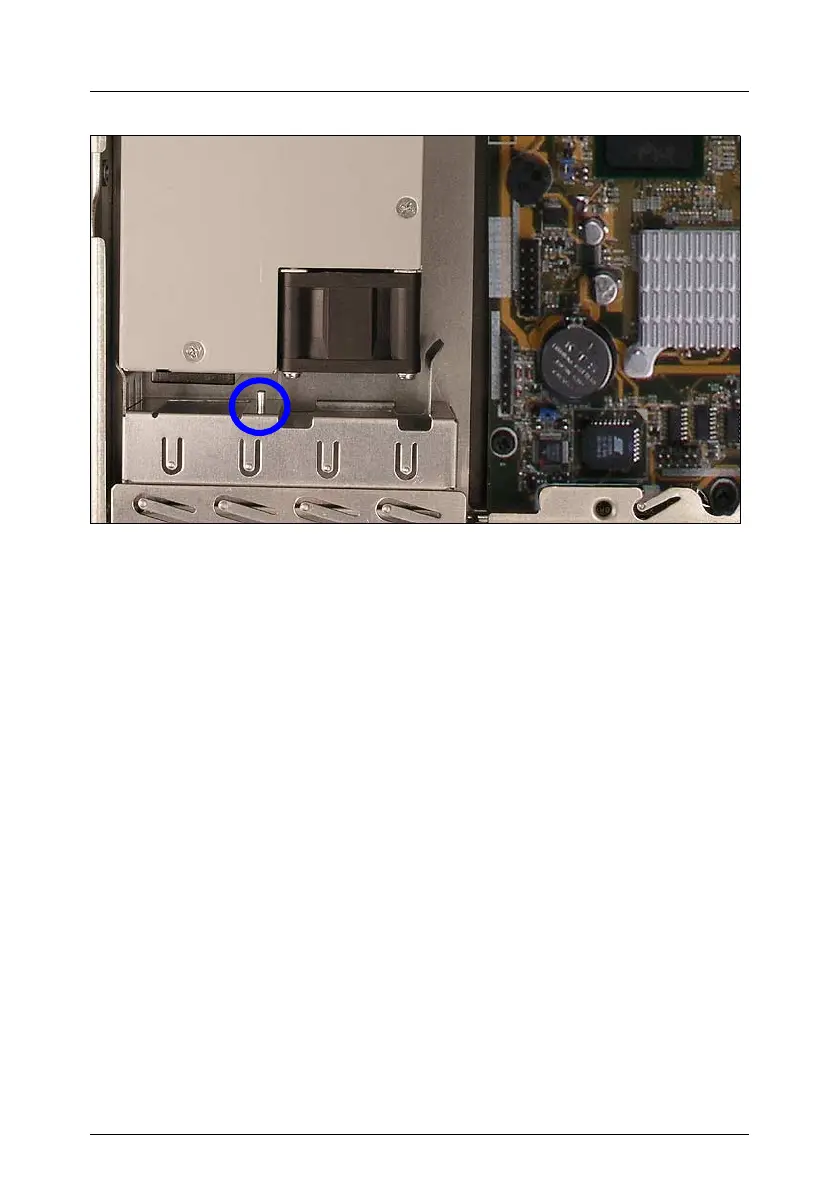

Figure 4: Making the pin free
Ê Push the power supply unit in direction of the hard disks until the pin
becomes free (see circle) and take it out.
Ê Insert the new power supply unit and push it into the bay until the pin is fully
inserted. Make sure that the cables are not damaged.
Ê Connect all power supply cables to the system board and the drives (see the
cabling plans in the Options Guide).
Ê Close the server and connect all power plugs (for a detailed description see
the Options Guide).
