22 Service Supplement RX100 S4
Replacing the SAS/SATA backplane Replacement routines
4.5 Replacing the SAS/SATA backplane
You will find the SAS/SATA backplane only in the hot-plug variant.
Ê Open the server as described in the section “Preparation” on page 17.
Ê Remove all the hot-plug hard disk drives (for a description see the Operating
Manual).
V CAUTION!
Check if all hard disk drives are uniquely identified so that you can
reinsert them into their original bays.
Ê Remove all cables from the SAS/SATA backplane.

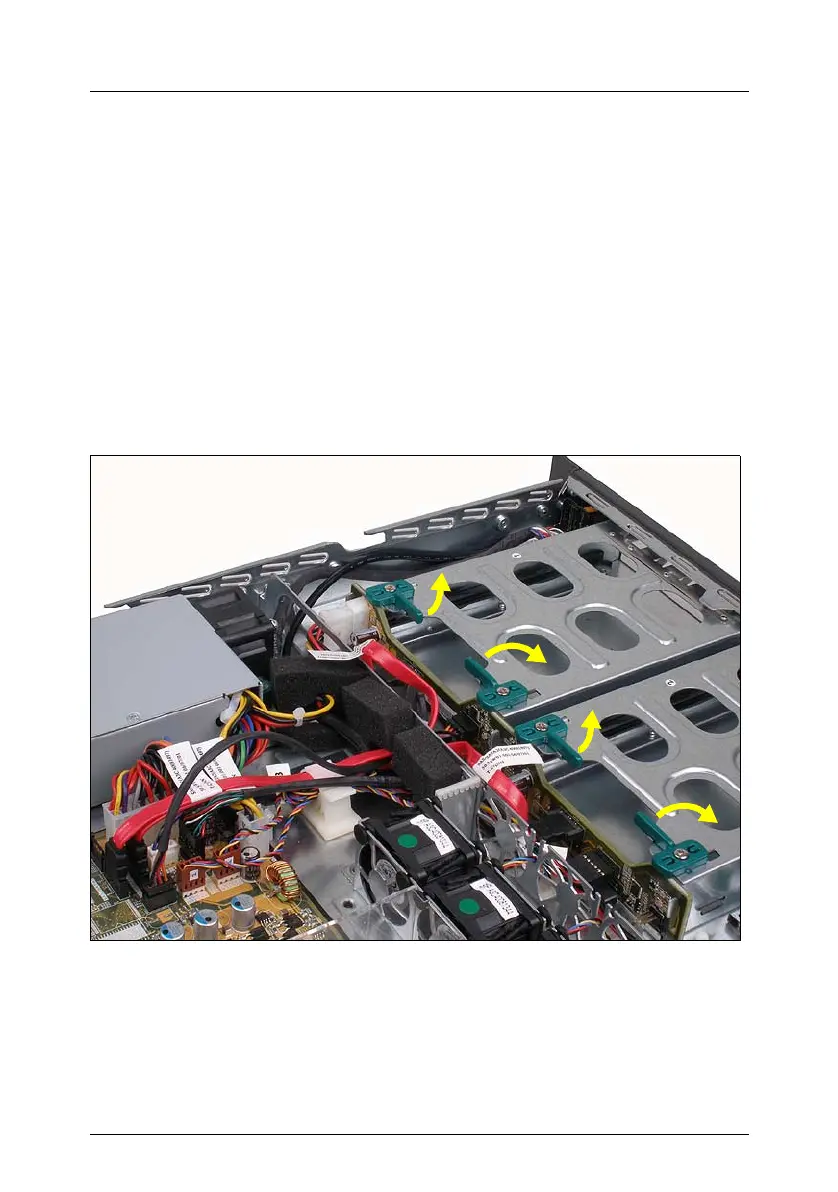

Figure 6: Unlocking the SAS/SATA backplane
Ê Unlock the SAS/SATA backplane by pushing the green levels in direction of
the arrows.
Ê Take out the SAS/SATA backplane.
