24 Service Supplement RX100 S4
Replacing the riser card Replacement routines
4.6 Replacing the riser card
There are two different riser cards (see appendix) available. The spare part
consists of the riser card holder with mounted riser card.
Ê Open the server as described in the section “Preparation” on page 17.

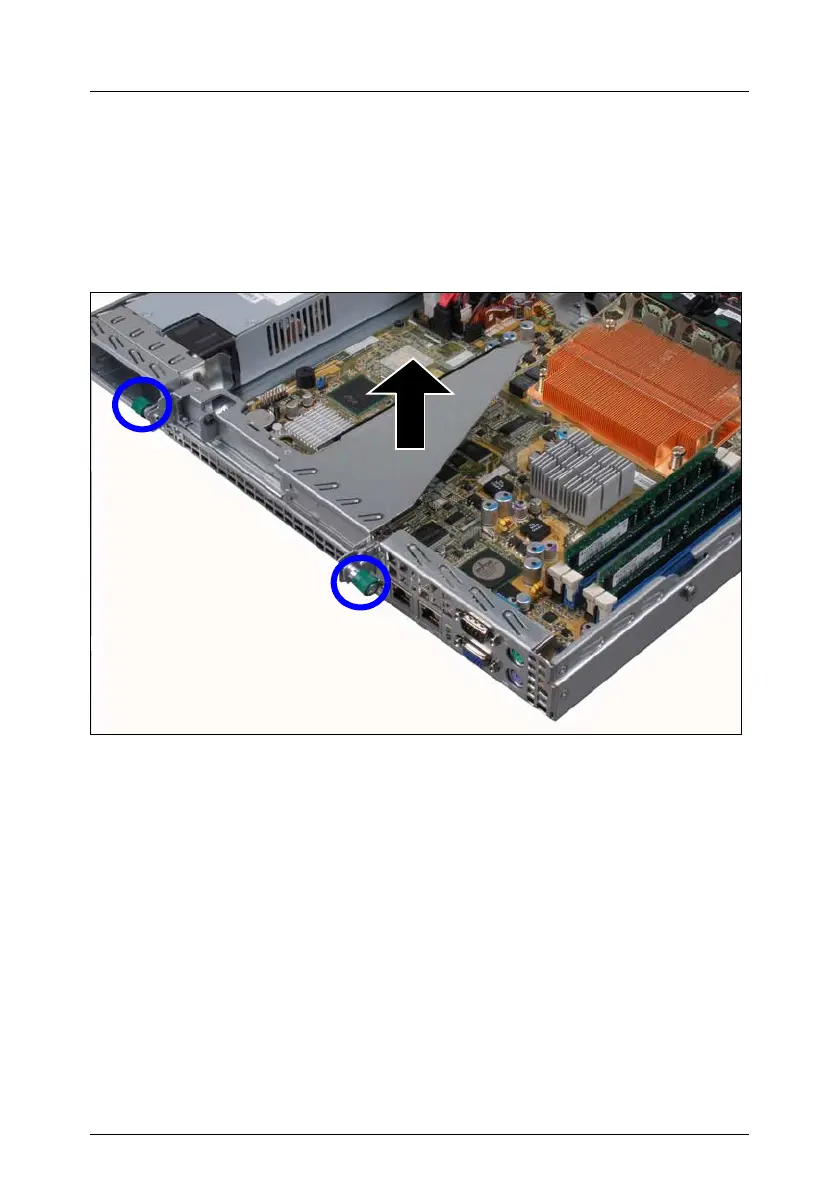

Figure 8: Removing the riser card holder
Ê Loosen the two knurled screws (see circles).
Ê Remove the riser card holder by pulling upward from the system board.
Ê If controllers have been installed in the PCI slots of the riser card, remove
them (for a detailed description see the Options Guide).
Ê Install the controllers in the PCI slots of the new riser card.
Ê Plug the riser card into the PCI slot of the system board.
Ê Fasten the riser card holder with two knurled screws to the housing’s rear
side.
Ê Close the server and connect all power plugs (for a detailed description see
the Options Guide).
