56 Operating Manual RX2510 M2
Starting up and operation
iRMC-related status signals
I For further information, please refer to chapter "Updating or recovering
the iRMC" in the Upgrade and Maintenance Manual.

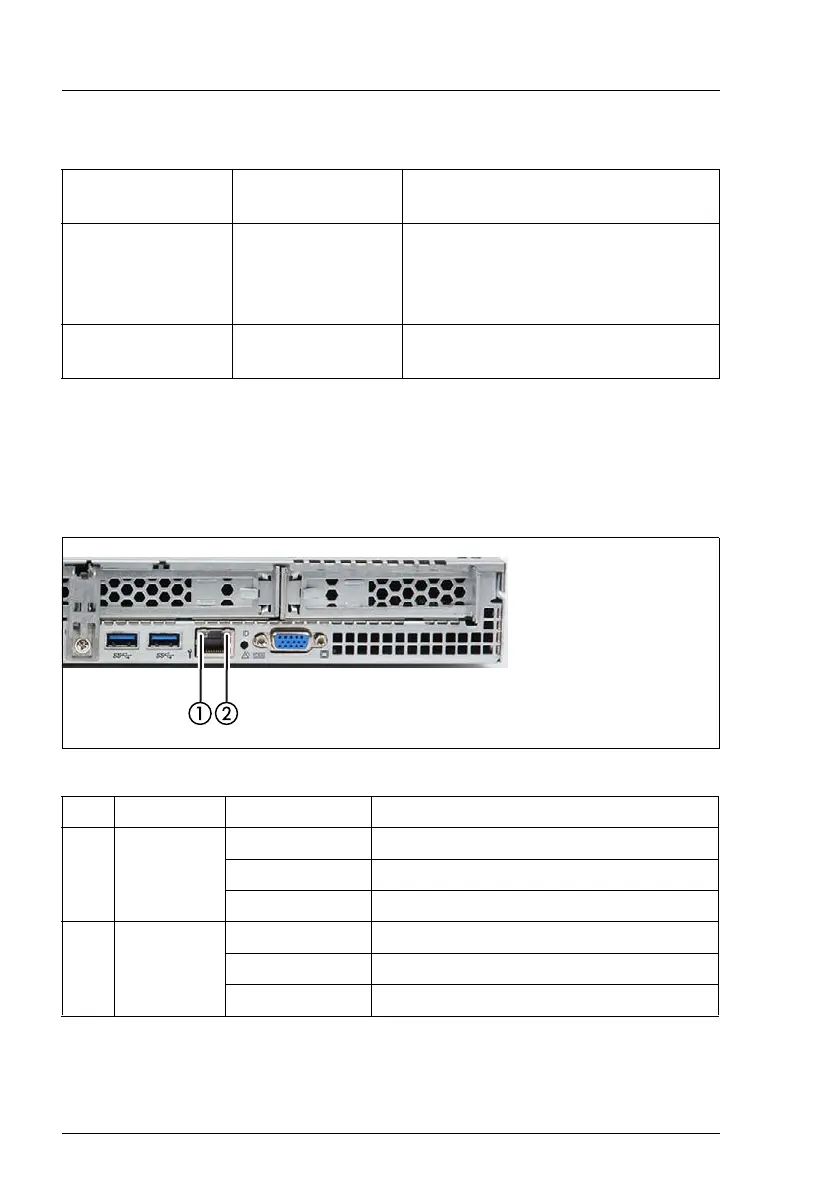

LAN indicators
Figure 9: LAN indicators
ID indicator
Global error
indicator
Description
blue flashing off
A remote connection has been
established. Local VGA output has
been disabled during the remote
session.
blue flashing orange flashing
An emergency flash of the iRMC
firmware is in progress.
Pos. Indicator Status Description
1
LAN link /
transfer
indicator
green on LAN connection established
off no LAN connection
green flashing data transfer in progress
2
LAN speed
indicator
yellow on traffic a transfer rate of 1 Gbit/s
green on traffic a transfer rate of 100 Mbit/s
off traffic a transfer rate of 10 Mbit/s
