RX4770 M4 Operating Manual 65
Starting up and operation
6.1.2.2 Indicators on the PSUs

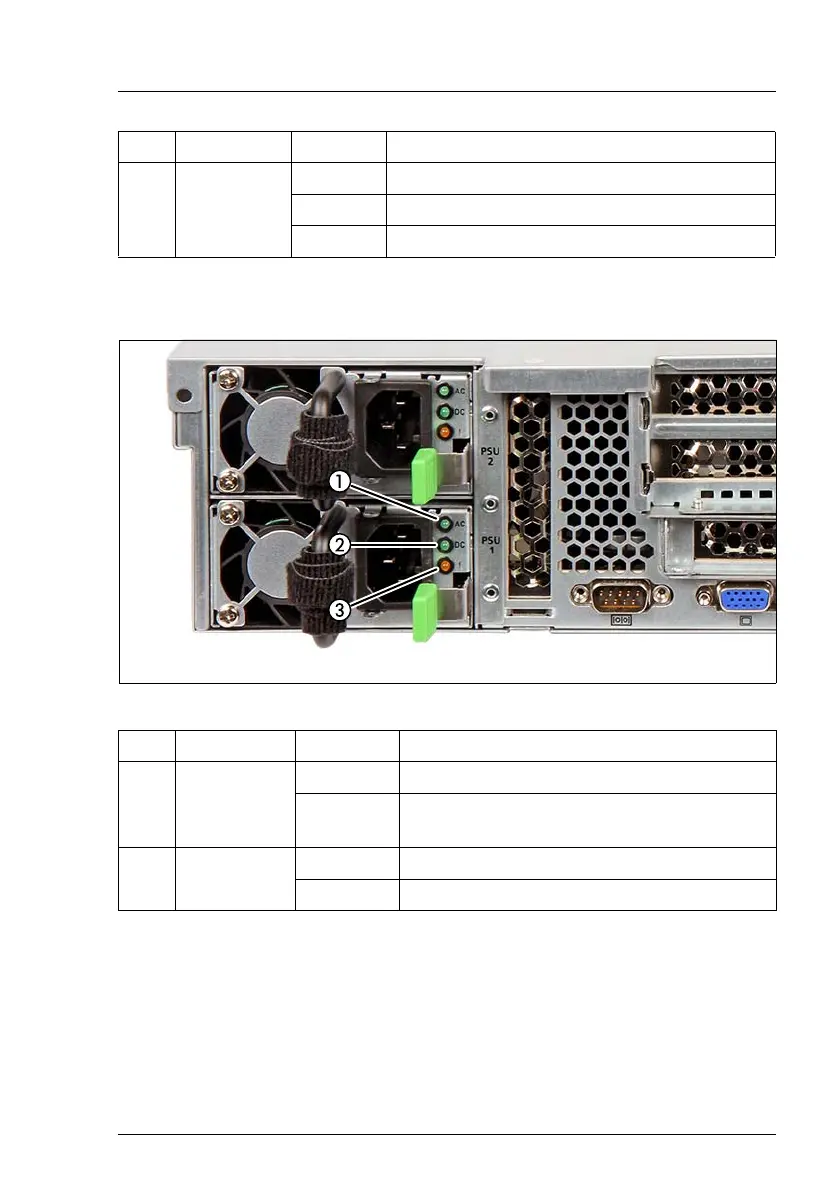

Figure 13: PSU status indicators
2
LAN speed
indicator
yellow on Data traffic at a transfer rate of 1 Gbit/s.
green on Data traffic at a transfer rate of 100 Mbit/s.
off Data traffic at a transfer rate of 10 Mbit/s.
Pos. Indicator Status Description
1AC
off No AC voltage is present.
green on
The server is switched off, but AC voltage is
present (standby mode).
2DC
off The PSU is not operating properly.
green on The PSU is operating properly.
