5.3 Connecting devices to the server
The connectors for external devices are on the front and rear of the server. The
additional connectors available on your server depend on the expansion cards
installed. For further information refer to the "FUJITSU Server PRIMERGY
RX4770 M4 Server Upgrade and Maintenance Manual".
I Some of the devices that can be connected may require the installation
and setting up of special software (e.g. drivers). See the documentation
for the connected device.

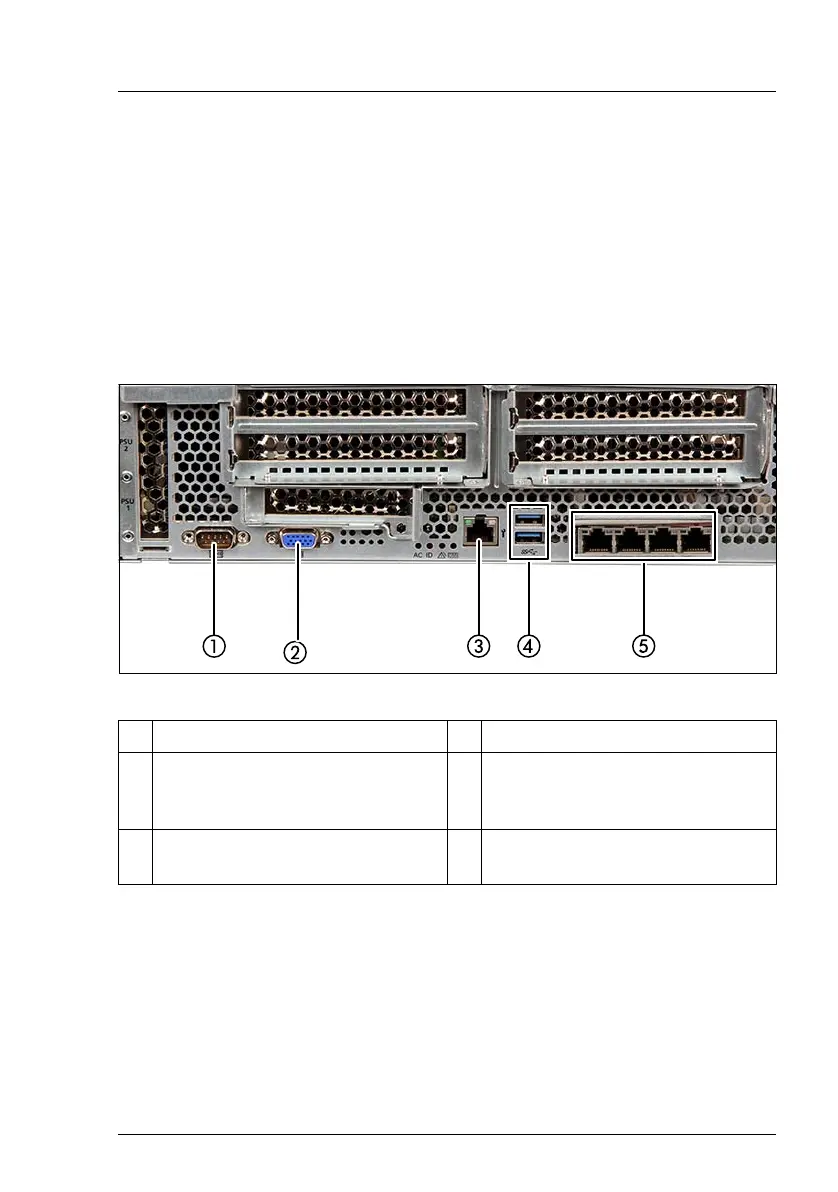

Figure 2: Connections on the rear
Ê Connect the desired devices to the server.
I Connect keyboard and mouse via USB. There are no separate PS/2
connectors for them.
1 Serial connector COM1 2 Video connector (VGA)
3 Management LAN connector (for
iRMC S5 server management
functions)
4 2x USB 3.0 connector
5 OCP module (optional, different
variants)
