TX100 S2 Options Guide 55
9 Completion
V CAUTION!
Follow the safety instructions in the chapter "Safety instructions" on
page 15.
9.1 Installing the air duct
I When installing the air duct, make sure that you do not damage the heat
sink on the system board.

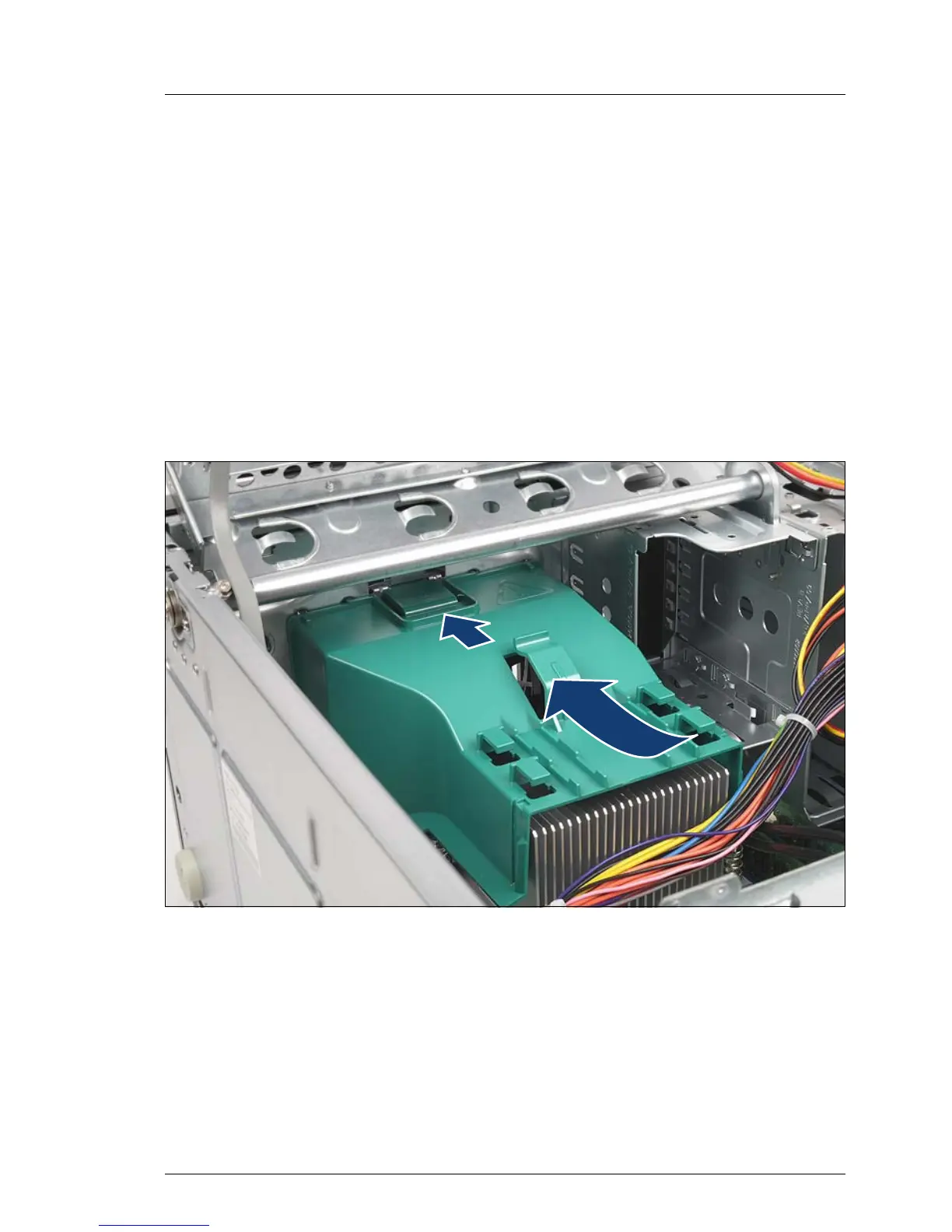

Figure 32: Installing the air duct
Ê Place the air duct on the heat sink.
Ê Push the air duct towards the front of the server until it clicks into the locking
mechanism.
Ê Lock the cables in the brackets of the air duct.
Ê Connect the three power cables with the system board.
