TX100 S2 Options Guide 29
5Main memory
V CAUTION!
Follow the safety instructions in the chapter "Safety instructions" on
page 15.
The system board supports up to 16 GB of main memory. 4 slots (2 memory
banks with 2 slots each) are provided for the main memory. Every slot can be
fitted with DDR3 UDIMMs with ECC with 1 GB, 2 GB or 4 GB.
5.1 Equipping rules
The system board has four slots for memory modules. For dual-channel
operation the memory modules must be equipped in pairs and color coded,
starting from the bottom to the top.
Blue slots: DIMM 1A (1) and DIMM 1B (2)
Black slots: DIMM 2A (3) and DIMM 2B (4)

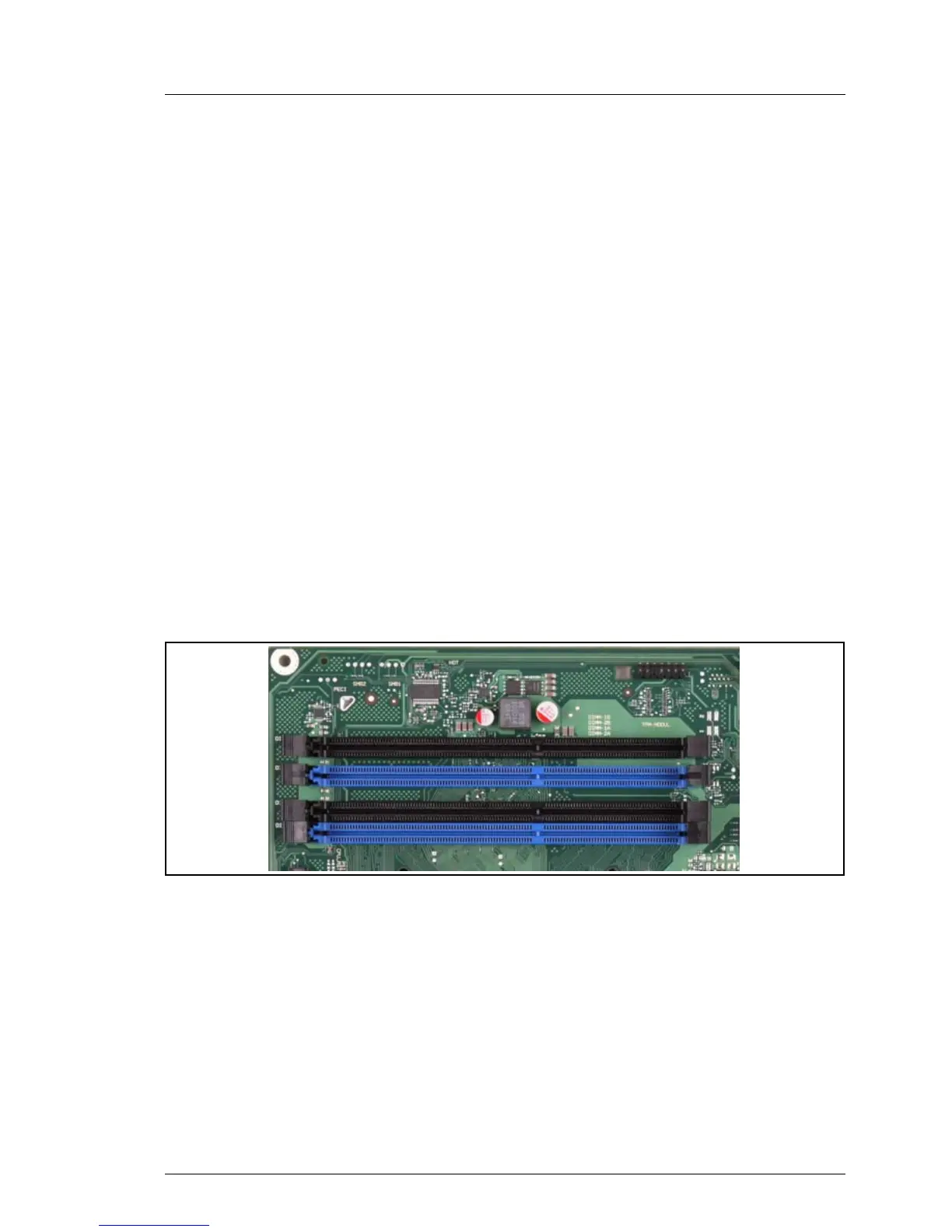

Figure 7: Configuration of the main memory
– Each memory bank is equipped with two memory modules with the same
capacity.
– The module capacity between pairs can differ: pair 1A/1B can be populated
with two 1 GB modules and pair 2A/2B with two 2 GB modules.
1B
1A
2B
2A
