TX200 S6 Operating Manual 101
CSS components
Installing the HDD module

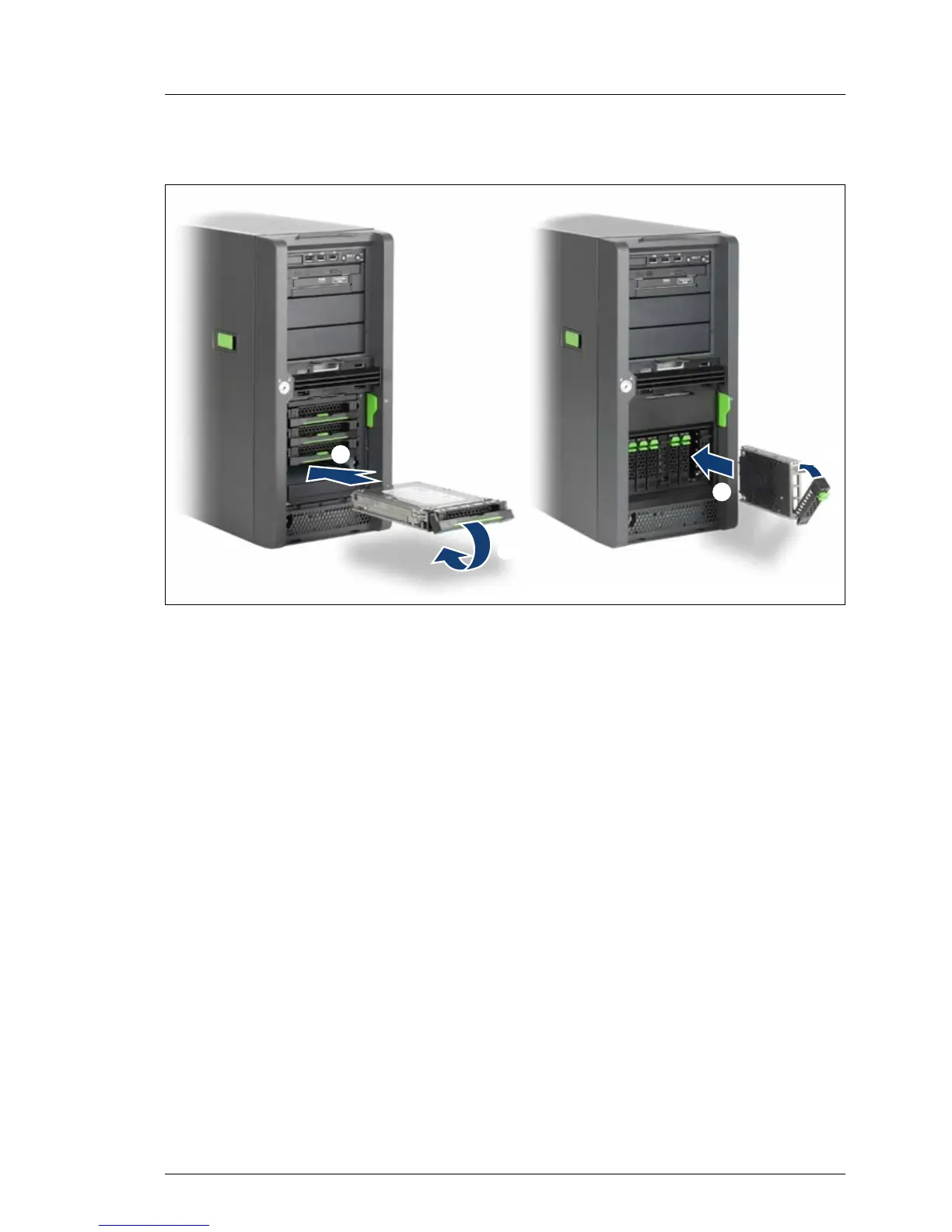

Figure 26: Installing the 3.5-inch and 2.5-inch HDD modules
Ê Unlock the HDD module as described in section "Unlocking the HDD
module" on page 100.
Ê Carefully push the HDD module into the empty slot (1) until it stops.
Ê Push the handle of the HDD module as far as it will go in the direction of the
arrow (2) until the locking mechanism is engaged.
/
/
