Fujitsu PRIMERGY TX200 S6 - Control Elements and Indicators

68 Operating Manual TX200 S6
Starting up and operation
5.2 Control elements and indicators
5.2.1 Front of server

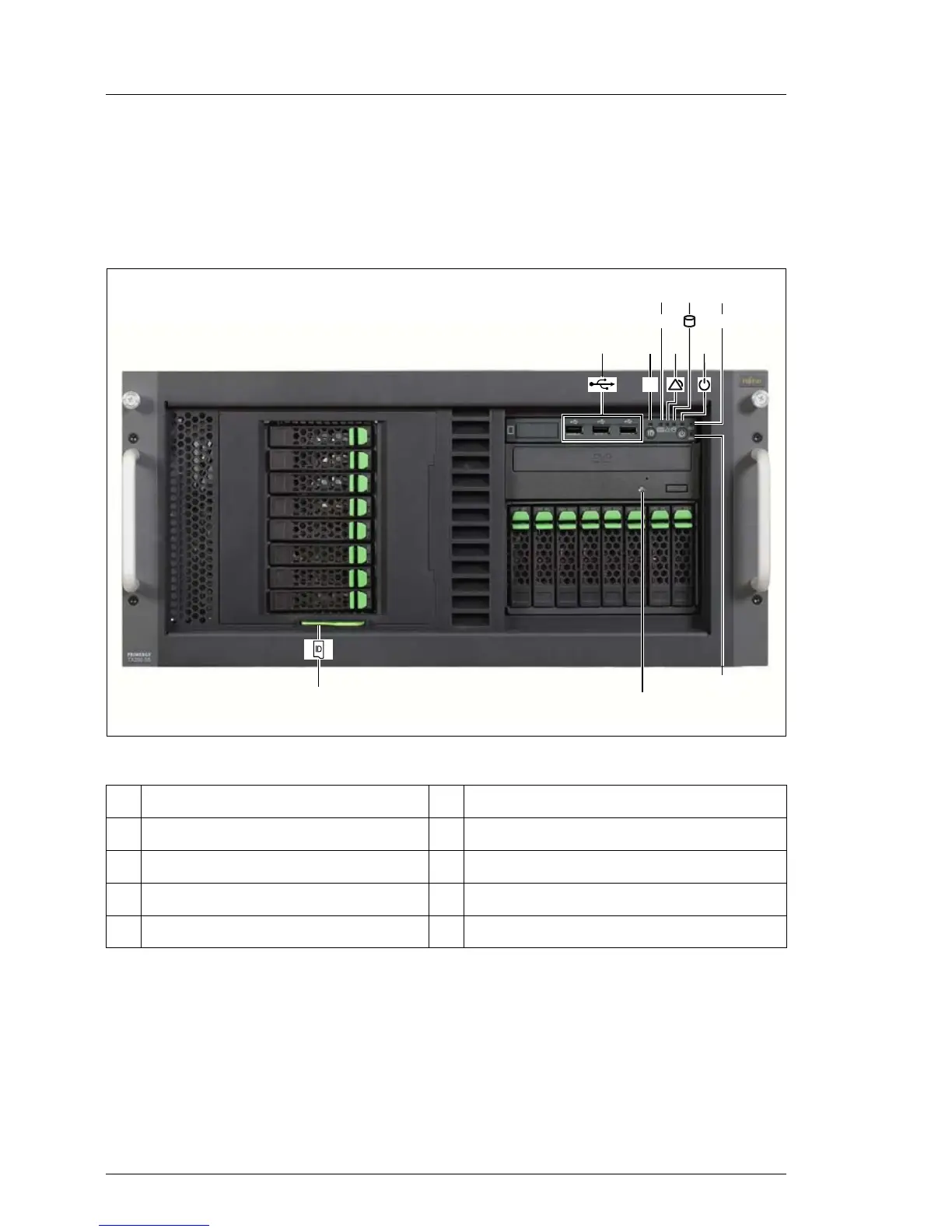

Figure 15: Front of server (example: rack model)
1 3 x USB connectors 6 Power-on indicator / On/Off button
2 ID indicator / ID button 7 Reset button
3 CSS indicator 8 NMI button
4 Global Error indicator 9 Optical drive activity indicator
5 Hard disk activity indicator 10 ID card
RST
+
CSS
ID
NMI
0
1
3
5
2
6
4
7
8
9
